Core Communication Features

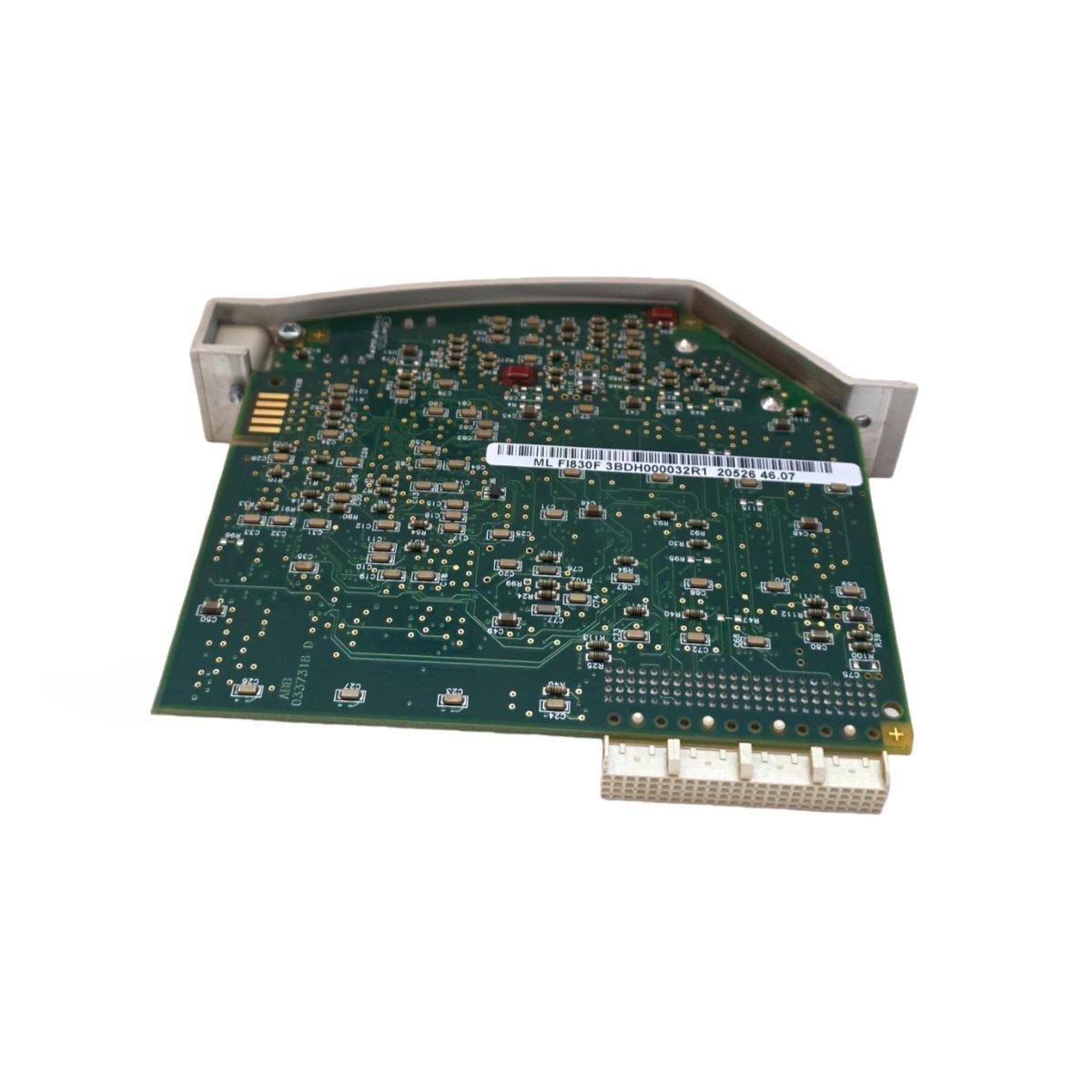

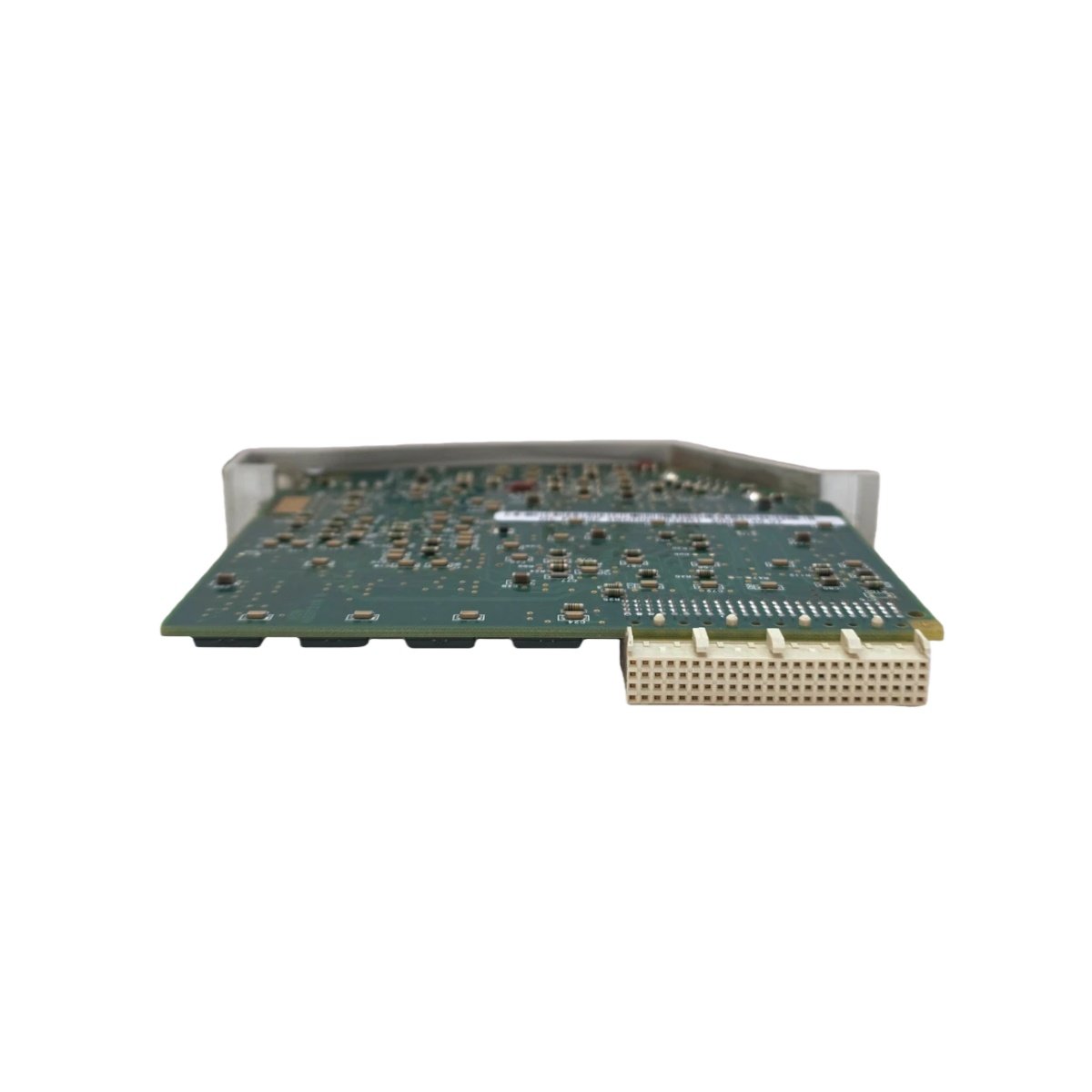

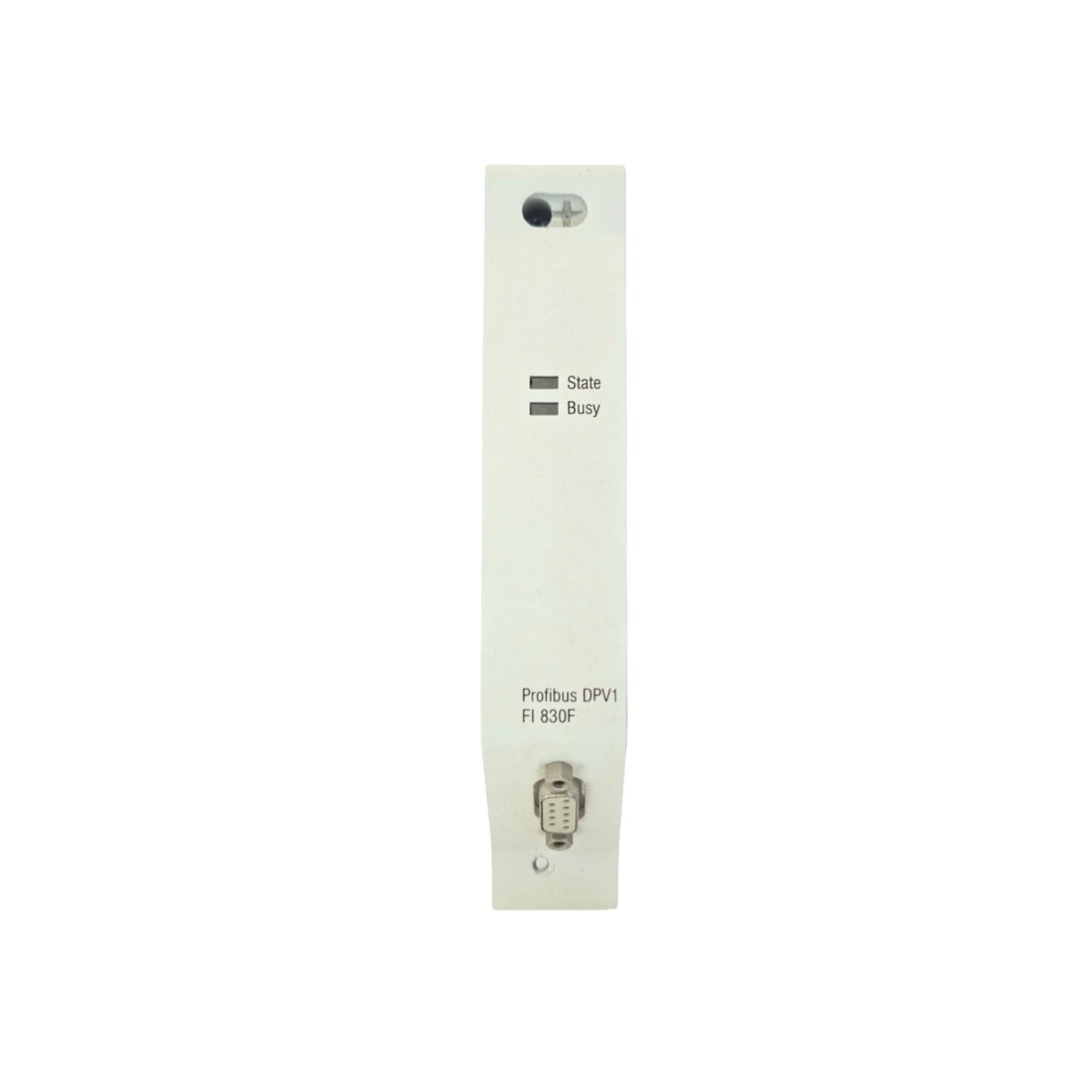

The ABB FI830F 3BDH000032R1 module serves as a high-performance PROFIBUS DP-V1 interface for the Freelance AC 800F controller series. This module establishes a direct digital link between the DCS and distributed I/O stations, drives, or process instruments. It supports both cyclic data exchange and acyclic parameterization, giving engineers flexible control over field devices. The unit also handles up to 244 bytes of input and 244 bytes of output data per slave. Furthermore, a built-in 9-pin D-sub connector ensures easy cabling and secure signal transmission.
Technical Specifications at a Glance
| Parameter | Specification |
|---|---|
| Product Type | PROFIBUS DP-V1 Master/Slave Interface Module |
| Compatible System | Freelance AC 800F DCS |
| Communication Protocol | PROFIBUS DP-V1 (EN 50170) |
| Transmission Rate | 9.6 kbps to 12 Mbps (auto-detecting) |
| Power Supply | 24 VDC ±20% |
| Power Consumption | Typical 4.5 W |
| Electrical Isolation | 1500 VAC (1 minute) between bus and controller |
| Number of Channels | 1 x PROFIBUS DP port |
| Connector Type | 9-pin D-sub female (RS-485) |
| Maximum Slaves | 96 slaves per segment (with repeaters) |
| Data Buffer | 16 KB internal memory for process images |
| LED Indicators | Power, Bus Active, Fault, and Data Exchange status |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Dimensions (W x H x D) | 3.0 cm x 12.7 cm x 14.5 cm |
| Weight | Approximately 0.18 kg |
| Mounting | DIN-rail (35 mm) |
Practical Application and System Integration
Engineers often deploy the ABB FI830F 3BDH000032R1 in manufacturing lines, material handling, and packaging machinery. This module efficiently handles high-speed data traffic from multiple drives and sensors simultaneously. It also supports hot-swapping of slave devices without disturbing the main control loop. The integrated diagnostics provide real-time bus health monitoring, reducing unplanned downtime. Therefore, plant operators achieve better process transparency and faster fault recovery.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
