Intelligent Flame Monitoring for Combustion Safety Systems

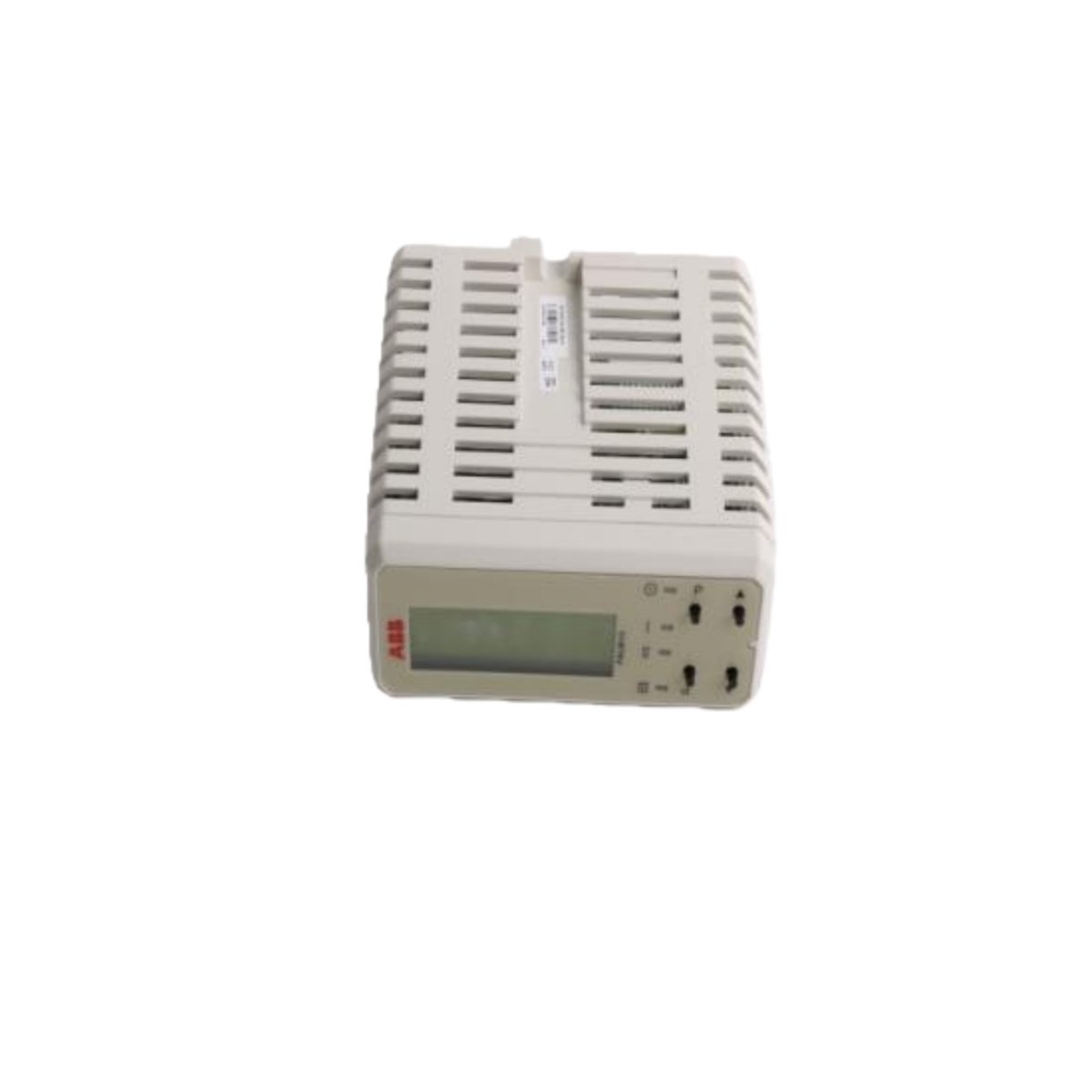

The ABB FAU810 flame analysis unit serves as the intelligent processing core for industrial burner management systems. This unit receives signals from UV or IR flame scanners and analyzes them to determine flame presence and quality reliably. Power generation and petrochemical facilities depend on this unit for safe and efficient combustion monitoring .

Technical Specifications and Processing Capabilities

The ABB FAU810 features two independent channels, each capable of processing one flame detector signal simultaneously . A 32-bit Motorola ColdFire® microprocessor samples signals at 2000 times per second for real-time analysis . The unit calculates flame intensity, frequency, and combustion quality through proprietary adaptive algorithms . Furthermore, the module continuously self-checks its electronics every 0.1 seconds, ensuring fail-safe operation .

Input and Output Interfaces

This analysis unit accepts signals from various flame detectors, including SF810 scanners, DFS scanners, and flame rods . The unit provides three Form C relay outputs for flame and fault status signaling. Two isolated 4-20 mA analog outputs independently monitor flame intensity, frequency, or quality . Additionally, two digital inputs enable remote parameter switching for different fuel types .

Communication and Diagnostics

The ABB FAU810 supports redundant RS-485 interfaces with selectable MODBUS or PROFIBUS DP-V1 protocols . A graphic LCD display provides local status indication, including power and channel status . Four programming buttons allow configuration directly on the unit. Furthermore, Flame Explorer software enables remote configuration and diagnostics via the RS-485 link .

Installation and Compatibility

You can install this unit on a standard DIN rail within a control cabinet . The ABB FAU810 works with legacy DFS scanners and the latest SF810 models, making it the standard module for retrofitting existing installations . The unit supports a maximum cable distance of 500 meters between the scanner and the analysis unit . Users can stack up to seven modules with power entry on the middle module .
