High-Speed Network Interface for AC 800F Controllers

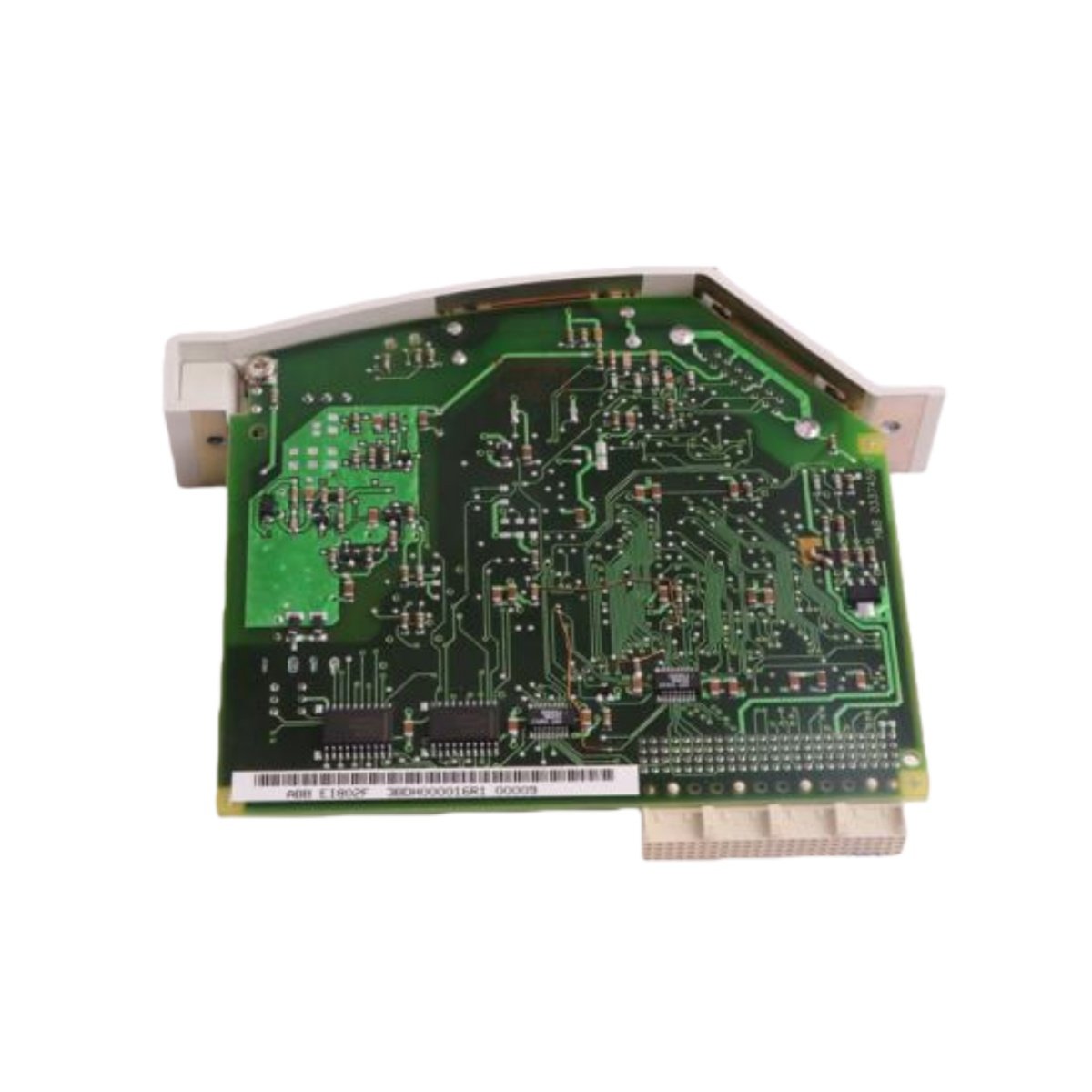

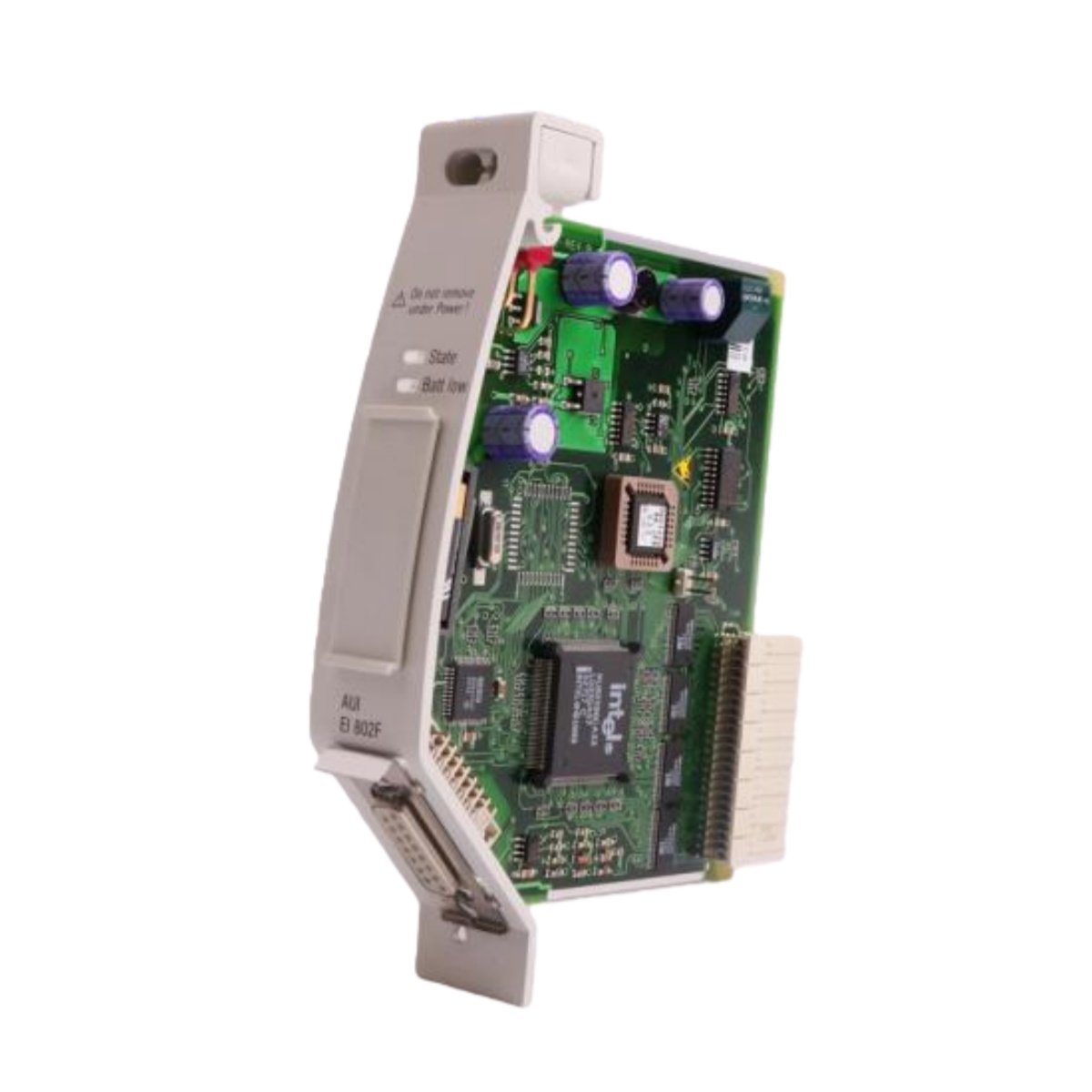

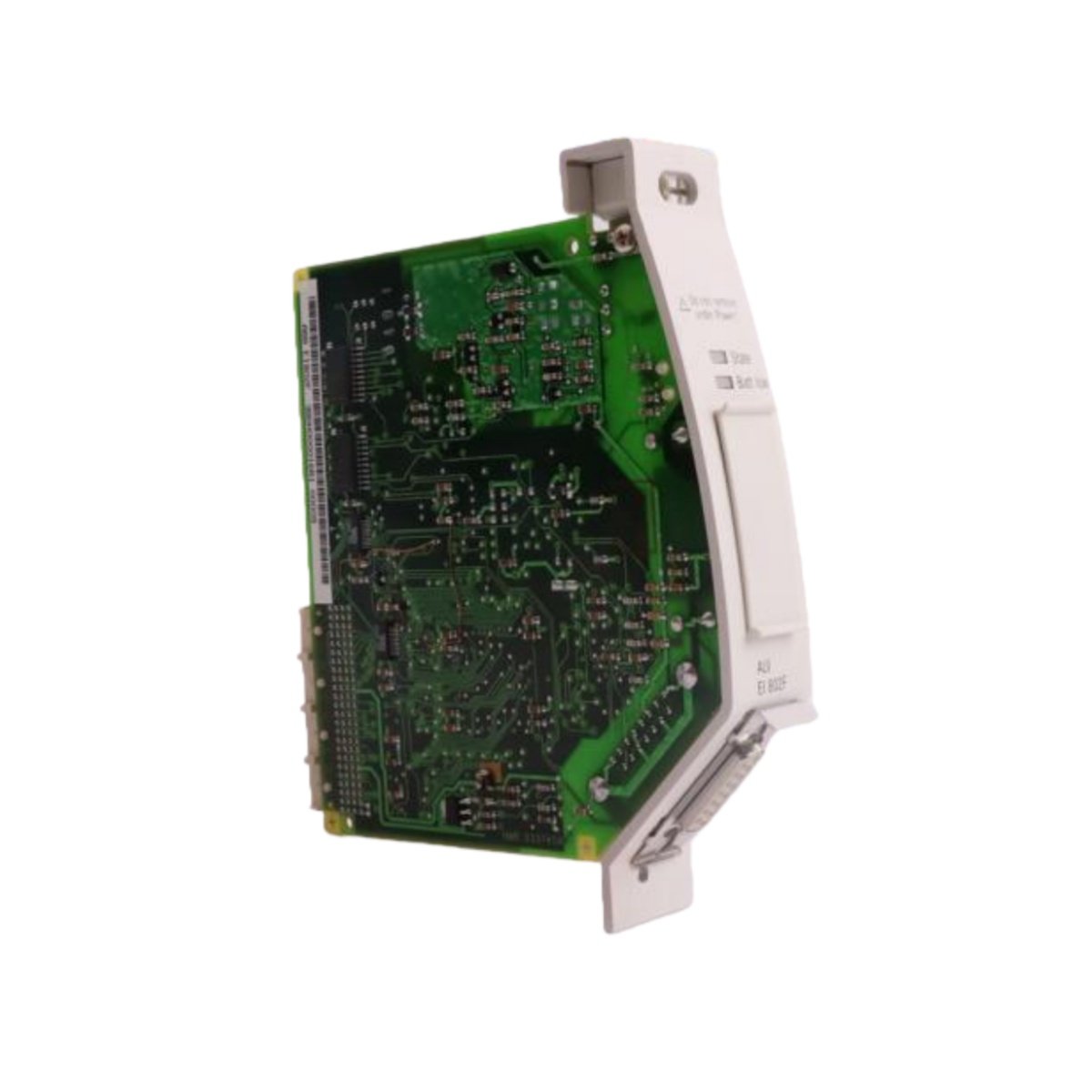

The ABB EI802F 3BDH000016R1 Ethernet module provides a high-speed network interface for the AC 800F controller within the Freelance DCS family . This module enables seamless data exchange between the controller, operator stations, and plant-wide Ethernet networks. Process automation systems rely on this interface for reliable, real-time communication in demanding industrial environments.

Technical Specifications and Network Interfaces

This Ethernet module features an RJ45 port that supports 10/100Base-TX with auto-negotiation for modern network compatibility . The module also includes an AUI (15‑pin D‑sub) interface and a BNC connector for legacy 10BASE2 (thin coax) networks . An integrated 32‑bit data bus with direct memory access ensures efficient data transfer while keeping CPU load below 4% .

System Integration and Redundancy

The ABB EI802F 3BDH000016R1 connects to the AC 800F controller via the internal module bus and supports system bus (DigiNet S) communication . Users can deploy two modules in a single controller for network redundancy, ensuring uninterrupted communication . The module supports Modbus TCP, enabling the AC 800F to act as either a client or server with third‑party devices . Furthermore, a battery backup option preserves critical data during power interruptions .

Physical Design and Diagnostics

The module features a rugged, compact enclosure for DIN rail mounting inside control cabinets. Front‑panel LEDs provide clear visual feedback: green indicates normal operation, orange signals startup or configuration mode, and red indicates a fault condition . The IP20 protection rating makes the module suitable for indoor installation. Furthermore, the module supports hot‑swapping, but you should power down the controller before removal to avoid bus errors .

Installation and Configuration

You can install this Ethernet module into a designated slot on the AC 800F controller. The module draws power directly from the backplane, requiring no external power supply . Users configure IP addresses and network parameters through the Freelance Engineering software. For 10BASE2 connections, you must install 50Ω terminators at both ends of the segment . Always use shielded Category 5e (or higher) cabling for the RJ45 port to maintain signal integrity in electrically noisy environments.
