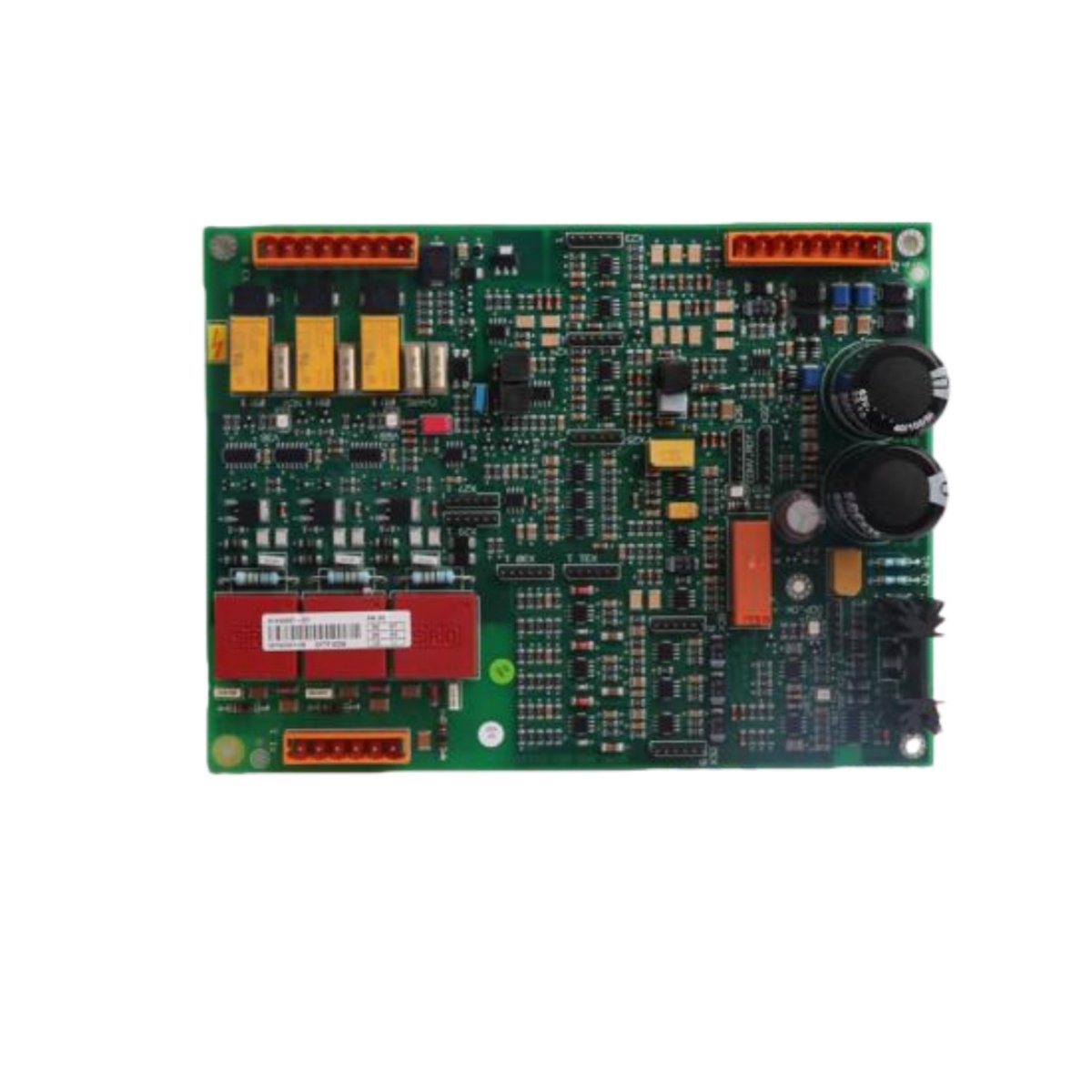

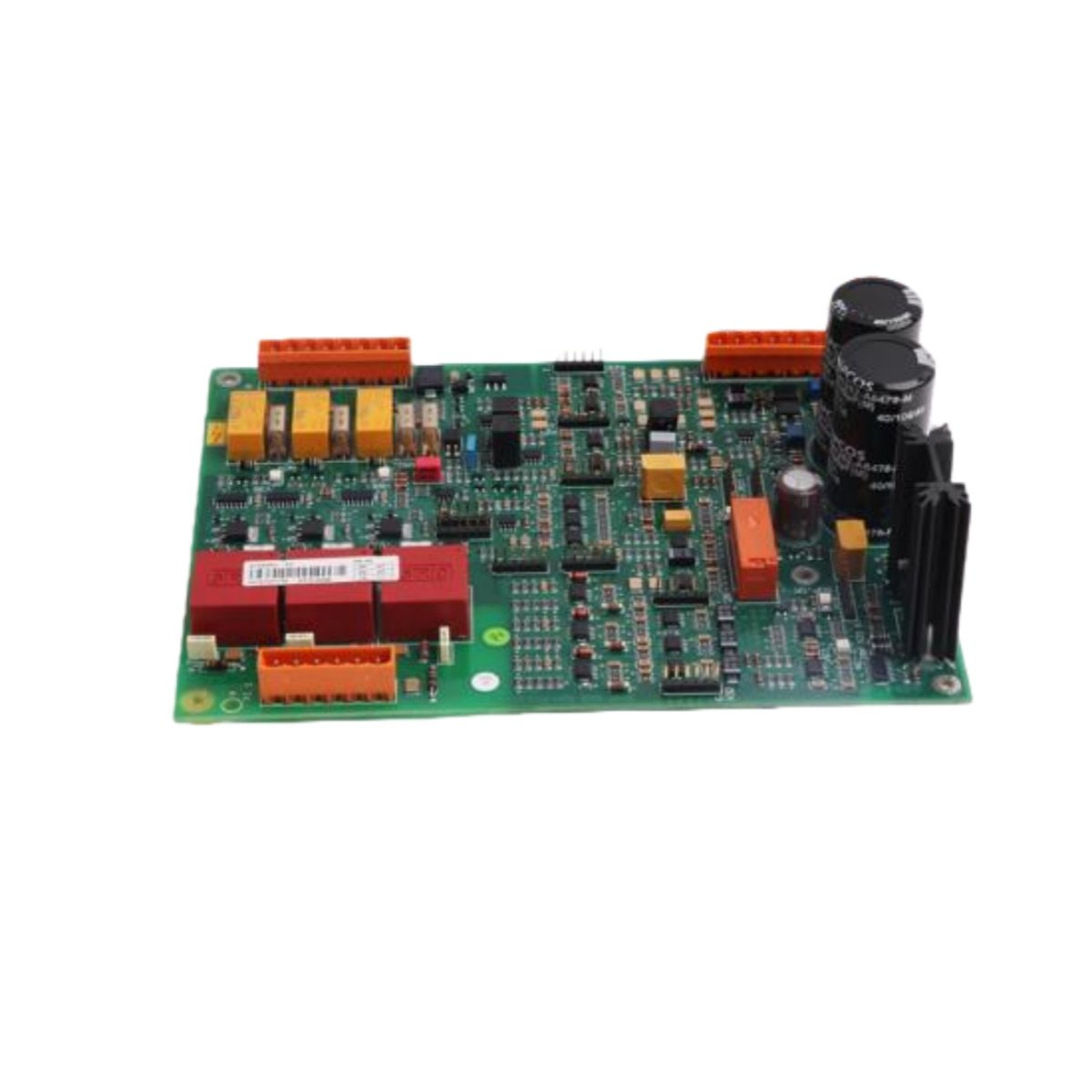

This control module executes logic and manages I/O operations for process systems. It handles analog signals, discrete inputs, and communication tasks simultaneously. You can install this unit directly into any compatible ABB rack slot. The module provides reliable control for chemical, power, and water treatment applications.
Technical Specifications & Key Parameters
| Parameter | Detail |
|---|---|
| Product Model | ABB DYTP 600A 6143001-ZY |
| Category | Control Module |
| Dimensions (H x W x D) | 135 mm x 70 mm x 90 mm |
| Weight | 0.38 kg (0.84 lbs) |
| Processor Type | 32-bit ARM Cortex-M4 |
| Clock Speed | 120 MHz |
| User Memory | 64 kB Flash, 32 kB RAM |
| Discrete I/O Capacity | 256 inputs / 256 outputs maximum |
| Analog I/O Capacity | 32 inputs / 32 outputs maximum |
| Scan Time | 0.8 ms per 1k word of logic |
| Communication Ports | One RS-485, one Ethernet |
| Protocol Support | Modbus RTU, Modbus TCP/IP |
| Energy Storage | 1000 µF capacitor (holds memory for 15 ms) |
| Component Count | 52 ICs, 38 capacitors, 46 resistors |
| Operating Voltage | 24 V DC nominal (18–32 V DC range) |
| Current Draw | 0.32 A at 24 V DC |
| Connector Types | One RJ45, one 5-pin screw terminal |
| Status LEDs | Power, run, fault, comm, I/O status |
| Mounting Method | Standard 35 mm DIN rail |
Detailed Feature Overview
ABB DYTP 600A 6143001-ZY uses a 120 MHz ARM Cortex-M4 processor for fast logic execution. This processor handles complex math and control algorithms efficiently. The module executes 1k word of logic in just 0.8 milliseconds. Consequently, it suits high-speed applications like flow control and motor management.
The unit supports up to 256 discrete I/O points for medium-sized systems. It also manages 32 analog inputs and 32 analog outputs smoothly. Built-in Ethernet and RS-485 ports connect to HMIs and SCADA systems. A 1000 µF capacitor holds memory contents for 15 milliseconds during power dips. Therefore, critical process values remain safe through brief interruptions.
Programming and Configuration
You can program the module using ladder logic or structured text. The module supports standard IEC 61131-3 programming languages. Configuration software runs on standard Windows PCs via Ethernet connection. Online editing allows program changes without stopping the process. Fifty-two integrated circuits handle logic execution, communication, and I/O scanning.
Installation and Environmental Limits
This control module draws 0.32 A from a 24 V DC power supply. Its 0.38 kg weight allows DIN rail mounting in any orientation. Insert the module firmly into the DIN rail clip until it locks. Connect Ethernet cable to the RJ45 port for programming and monitoring. Operating temperature ranges from -20°C to +60°C reliably. Keep humidity below 95% without condensation for long life. Store the module between -40°C and 85°C for long-term preservation.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
