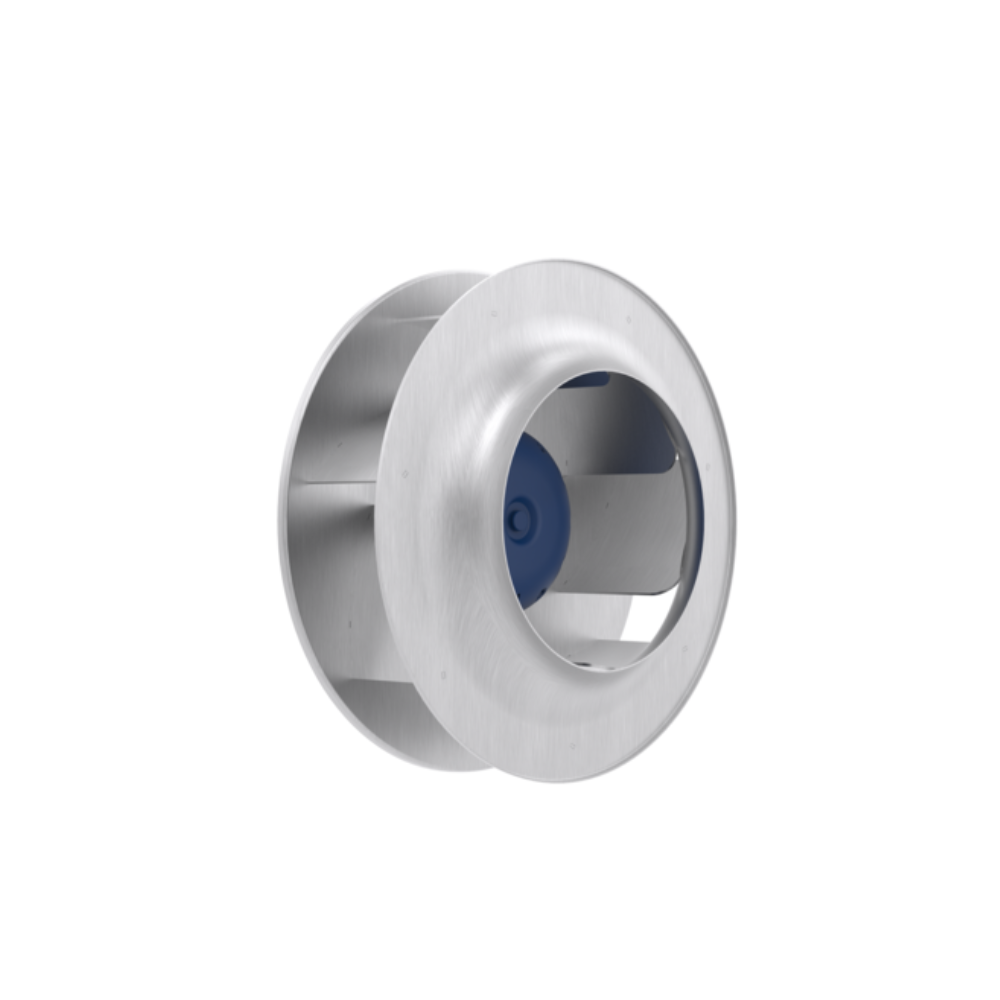

The ZIEHL-ABEGG RH31C-ZID.DC.1R cooling fan combines ECblue motor technology, robust construction, and integrated temperature management. With strong airflow performance and long service life, it is ideal for demanding industrial environments.
General Specifications
- Model: RH31C-ZID.DC.1R
- Fan Type: Motorized impeller RH
- Size: 315 mm
- Motor Technology: ECblue
- Phase: 3
- Protection Class: IP55
- Thermal Class: THCL155
- Electrical Connection: Integrated controller
- Approvals: UL, CE, UKCA
- Conformity: ErP 2015 compliant
- Balancing Quality: G 6.3
Performance Data (50/60 Hz)
| Article No. | Voltage | Frequency | Airflow (m³/h) | Pressure (Pa) | Power (kW) | Current (A) | Speed (min⁻¹) | Temp Rise |
|---|---|---|---|---|---|---|---|---|
| 118632 | 230V | 50/60 Hz | 5444 | 1576 | 1.90 | 5.90–4.90 | 3380 | 55°C |
| 185984/186398 | 460/400V | 50/60 Hz | 5718 | 1761 | 2.20 | 3.60–2.85 | 3550 | 60°C |
Electrical and Material Details
- Motor Protection: Integrated active temperature management
- Impeller Material: Aluminium, unpainted
- Rotor Material: Aluminium, coated (RAL 5002 Ultramarine Blue)
Energy Efficiency (ErP Data)
- Efficiency (ΗstatA):
- Article No. 118632: 63.2%
- Article No. 185984 & 186398: 64.6%
- Efficiency Grade:
- Nactual: 71.6
- Ntarget: 62
Compliance and Recommendations
The RH31C-ZID.DC.1R fan complies with ErP 2015 standards, ensuring high energy efficiency. It also falls under U.S. DOE and CT20 fan and blower regulations. Always confirm local compliance before installation in regulated environments.
Details
| Weight | 7 kg |
|---|
