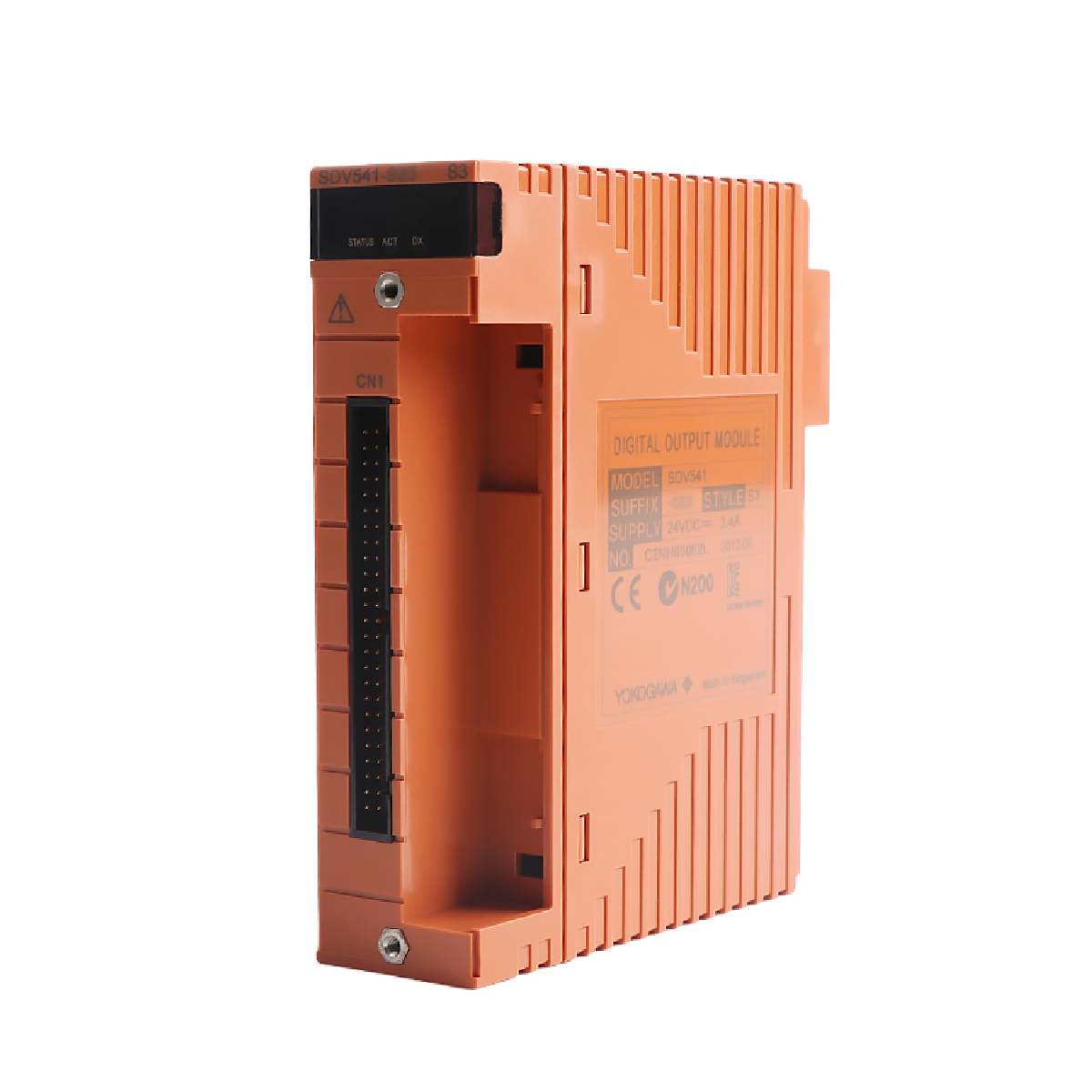

The ABB SDV541-S23 S3 belongs to the ProSafe-RS system and provides 16 isolated digital outputs. It ensures accurate signal transmission and flexible external connections, making it suitable for demanding automation environments.
Key Specifications
| Parameter | Specification |
|---|---|
| Model | SDV541-S23 S3 |
| Type | 16-channel digital output module |
| Output Format | Current source |
| Output Voltage | 24 V DC |
| Voltage Drop | ≤ 1 V |
| Response Time | ≤ 30 ms |
| External Power Supply | 24 V DC (+20% / -10%), 3.4 A minimum |
| Current Capacity | 0.2 A max per channel, 3.2 A total |
| Leak Current (OFF) | ≤ 1.6 mA |
| Load Resistance Range | 120 to 685 Ω |
| Minimum Load Current | 35 mA |
| Power Consumption | 300 mA max at 5 V DC, 150 mA max at 24 V DC |
| Withstand Voltage | 2 kV AC for 1 min (between outputs and system) / 500 V AC via AKB331 |
| Style Code | S23 (S – Standard, 2 – pressure clamp or MIL, 3 – signal cable interface) |
| Weight | 0.29 kg (terminal/MIL) / 0.31 kg (with adapter) |
Connection Options
The SDV541-S23 S3 supports different wiring methods for flexible integration:
- Pressure clamp terminal connections
- MIL cable connections
- Dedicated signal cables such as AKB331 or AKB651
Design and Build
This module delivers stable current sourcing with a maximum of 0.2 A per output line. Its isolated design enhances system reliability while supporting high-noise environments. Floating the field power supply improves immunity against disturbances, ensuring consistent operation in industrial plants.
Application Benefits
The ABB SDV541-S23 S3 module expands digital output capacity while maintaining robust protection. Its compliance with ProSafe-RS design guidelines makes it suitable for safety-critical systems requiring fast response and secure isolation.
