Overview

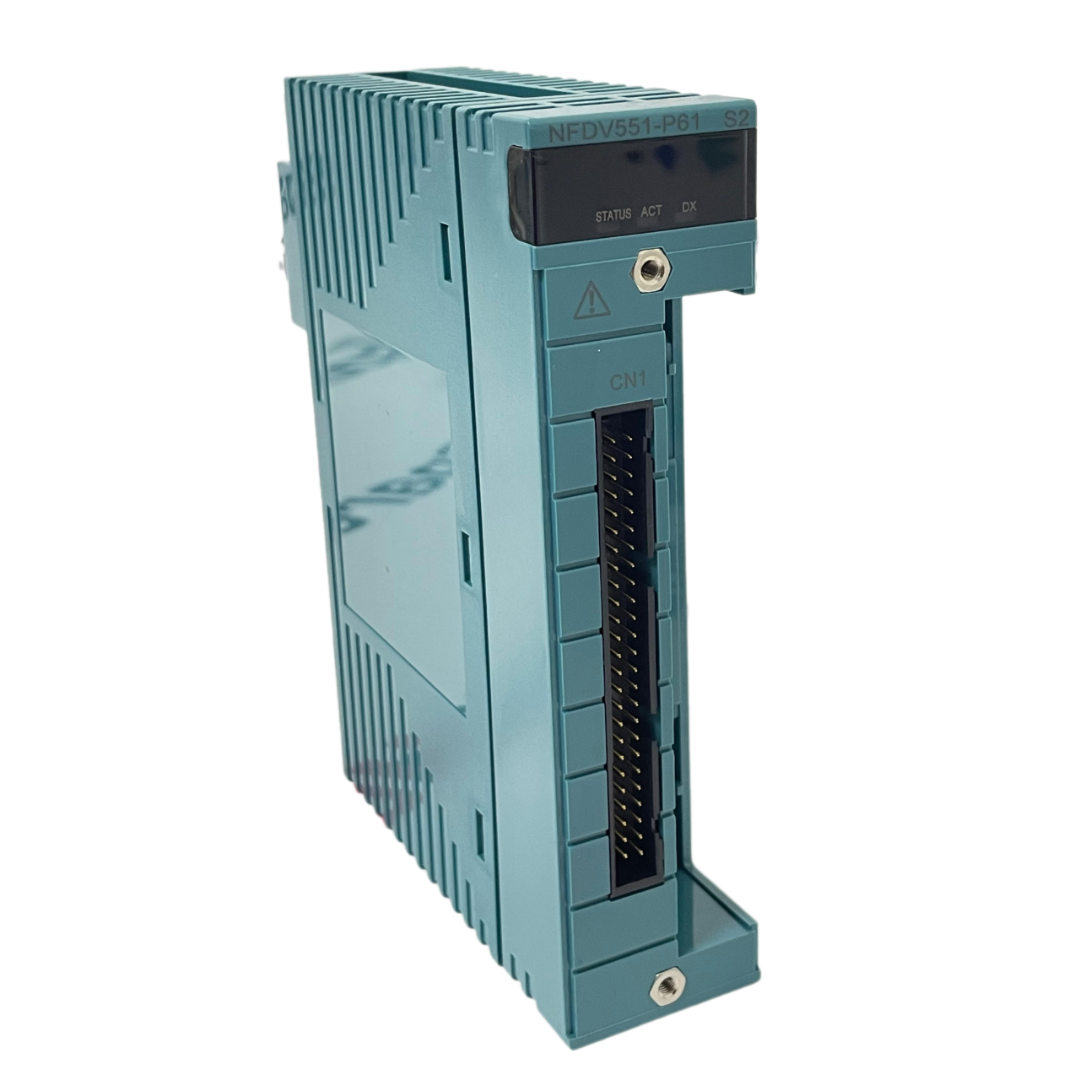

The Yokogawa NFDV551-P11 is a 32-channel digital output module designed for industrial automation systems. It outputs transistor contact signals and delivers reliable performance under demanding conditions. The module supports flexible power supply ranges, fast response times, and robust isolation for system integrity.
Key Features
- Operates at a rated applied voltage of 24 V DC for industrial control applications.
- Each channel supports up to 100 mA load current at 26.4 V DC.
- Field power supply voltage range spans 20.4–26.4 V DC.
- Current sink output ensures efficient and precise signal transfer.
- Minimal leakage current (<0.1 mA) when output is OFF.
- Fast status response time of 3 ms or less.
- Supports configurable fallback actions: HOLD, OFF, or NO.
- Compact design weighing 0.2 kg, suitable for easy installation.
- Compatible with pressure clamp terminals and MIL connector cables.
Technical Specifications
| Specification | Value |
|---|---|
| Model | NFDV551-P11 |
| Series | NFDV551 Digital Output Module |
| Number of Channels | 32 |
| Rated Applied Voltage | 24 V DC |
| Load Voltage | 24 V DC, 50 mA per channel |
| Maximum Load Current | 100 mA/channel at 26.4 V DC |
| Output Format | Current sink |
| Output ON Voltage Max | 2 V DC |
| Leak Current (OFF) | <0.1 mA |
| Withstanding Voltage | 2000 V AC (output to system); 500 V AC between commons |
| Status Output Function | ON/OFF |
| Output Response Time | ≤3 ms |
| Current Consumption | 700 mA (5 V DC), 60 mA (24 V DC field supply) |
| Weight | 0.2 kg |
| External Connections | Pressure clamp terminal, MIL connector cable |
Models and Suffix Codes
- Model: NFDV551 – 32-channel, 24 V DC, isolated digital output module
- Suffix Codes:
- -P: Standard type
- 1: Includes ISA Standard G3 option
Installation Notes
- Provide an external 24 V DC field power supply for operation.
- Connect a diode when driving DC relays to protect the system.
- Choose consistent fallback settings (HOLD, OFF, NO) across all channels.
- Fallback detection occurs within 4 seconds to ensure quick system response.
Details
| Weight | 0.2 kg |
|---|
