Product Overview

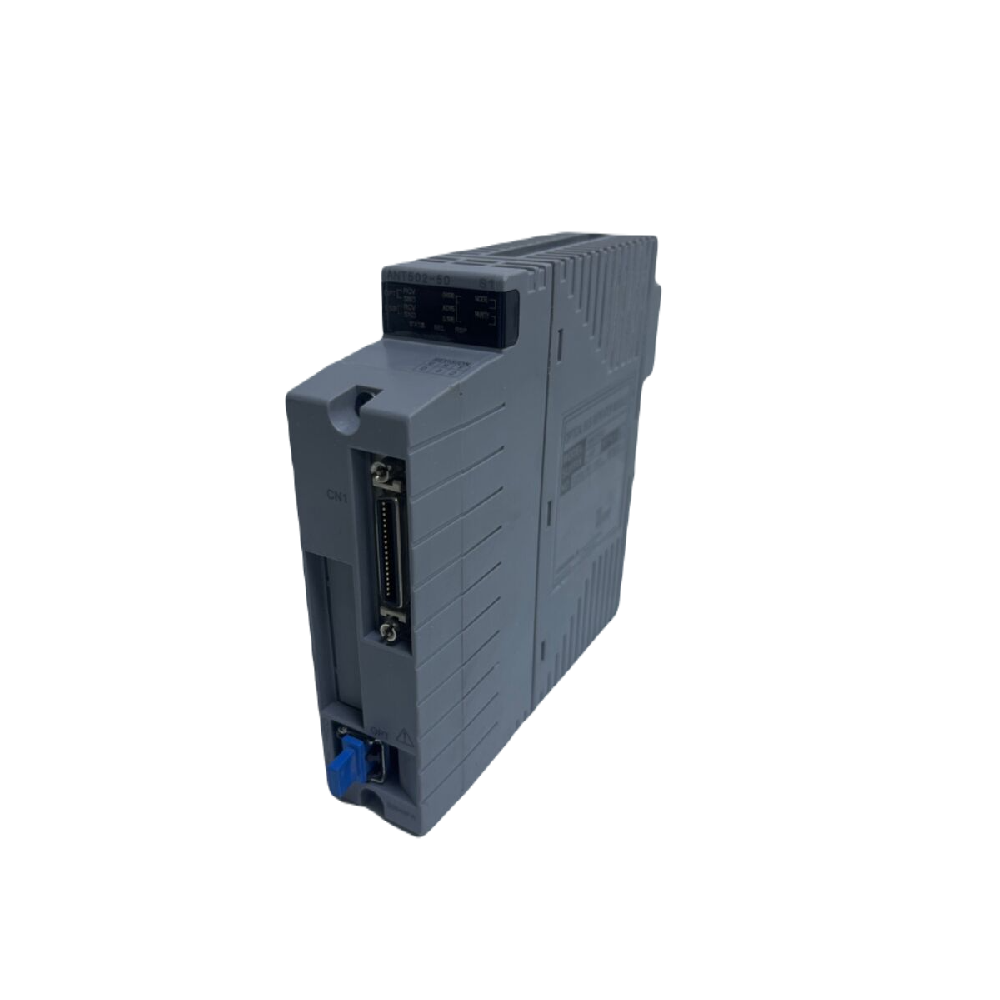

The Yokogawa ANT502-50 module functions as an Optical ESB Bus Repeater Slave for industrial communication networks. It supports distances up to 5 km and integrates seamlessly with the Optical ESB Bus Node Unit ANB11 or the Unit for Optical ESB Bus Repeater Module ANT10U. This module ensures reliable dual-redundant operation in N-IO/FIO systems and provides cabinet temperature and fan monitoring through HKU interface options.
Key Specifications
| Specification | Detail |
|---|---|
| Model | ANT502-50 |
| Type | Optical ESB Bus Repeater Slave Module |
| Maximum Distance | 5 km |
| Compatible Systems | N-IO/FIO, dual-redundant configurations |
| ESB Bus Connection Options | With connector (/BU1A, /HU1A), without connector (/BU1B, /HU1B) |
| Cabinet Monitoring | Temperature and fan monitoring via HKU interface |
| Standard Type | -5 suffix for non-explosion-protected environments |
| Basic Type | -0 suffix for maintenance purposes only |
| Compatible Master Modules | ANT401-series, A2EN501-series, ANB11 series (ANB11S, ANB11D) |
| Manufacturer | Yokogawa |
Features
- Extends ESB Bus communication up to 5 km for industrial networks.
- Supports dual-redundant configurations for enhanced system reliability.
- Integrates with master modules ANT401 or A2EN501 for flexible deployment.
- Offers optional ESB Bus connectors and HKU cabinet monitoring for operational safety.
- Compatible with ANB11 node units to optimize communication topology.
Applications
Yokogawa ANT502-50 suits factory automation, process control, and distributed I/O systems. Its reliable optical repeater functionality ensures uninterrupted communication between slave and master modules across extended distances.
Details
| Weight | 0.2 kg |
|---|---|
| Dimensions | 32 × 127 × 127 mm |
