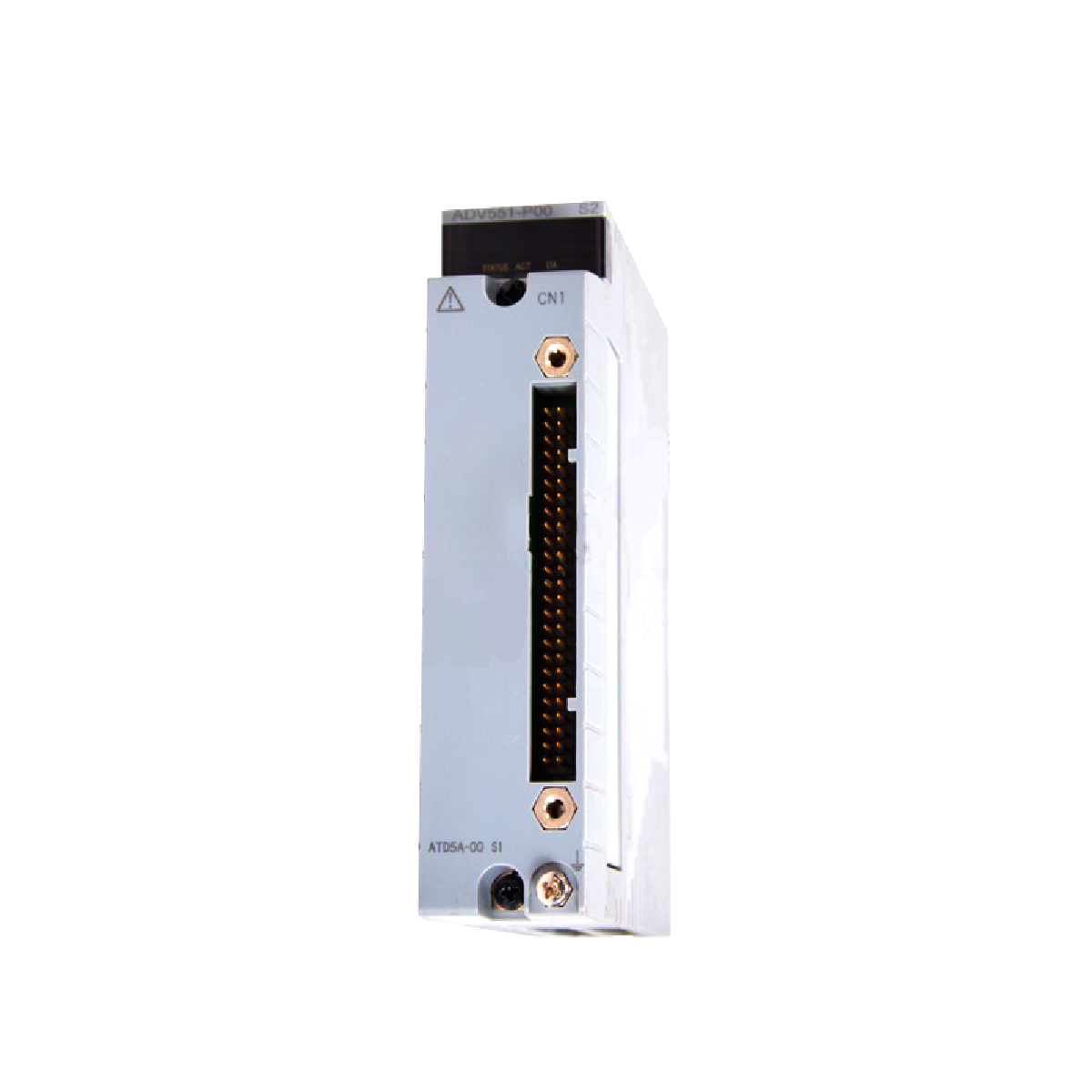

The Yokogawa ADV551-P00 S2 is a 32-channel digital output module designed for industrial automation and process control applications. It supports dual-redundant configurations, offering reliable operation and fast response for safety-critical and high-availability systems. Furthermore, its compact design ensures easy integration into control cabinets while maintaining high durability.
Key Features
High-Performance Digital Output
- 32 channels for digital output at 24 VDC.
- Supports pulse width and time-proportioning output functions, enabling precise control of actuators and relays.
- Fast status output response of ≤ 3 ms and mixed output response ≤ 10 ms.
Reliable and Redundant Operation
- Supports dual-redundant configuration for enhanced system reliability.
- Compact and lightweight, approximately 0.2 kg, ideal for constrained spaces.
- Durable construction suitable for industrial environments.
Flexible Connection Options
- External Connection: Pressure damp terminal, dedicated cable (AKB331), or MIL connector cable.
- Compatible with DC relays; diode connection required when driving relays.
- Ensures stable operation across a wide voltage range of 20.4–26.4 VDC.
Technical Specifications
| Specification | Details |
|---|---|
| External Power Supply | 24 VDC, 50 mA |
| Output ON Voltage Max | 2 VDC |
| Leakage Current (OFF) | 0.1 mA |
| Output Format | Current sink |
| Max Load Current | 100 mA per channel (26.4 VDC) |
| Withstanding Voltage | 500 V AC (dedicated cable) |
| Status Output | ON/OFF function |
| Pulse Width Range | 8 ms – 7200 s |
| Pulse Width Resolution | 8 ms (max 1 ms delay) |
| Output Response Time | ≤ 3 ms (status output) / ≤ 10 ms (mixed output) |
| Max Current Consumption | 700 mA (5 VDC), 60 mA (external power) |
Model and Suffix Codes
| Model | Description |
|---|---|
| ADV551 | Digital Output Module (32-channel, 24 VDC, Isolated) |
| Suffix Code | Description |
|---|---|
| -P | With pulse width & time-proportional output |
| 0 | Without status display, no explosion protection |
| 0 | Basic type |
Recommended Accessories
- AKB331 dedicated cable or MIL connector cable for connection.
- Ensure diode connection when using DC relays for protection.
Applications
- Industrial Automation: Controls actuators, solenoids, and other field devices.
- Process Control Systems: Provides fast, reliable digital output for critical operations.
- Safety-Critical Systems: Supports redundant configurations for enhanced availability.
- Compact Control Panels: Lightweight and small footprint for easy installation.
Details
| Weight | 0.2 kg |
|---|
