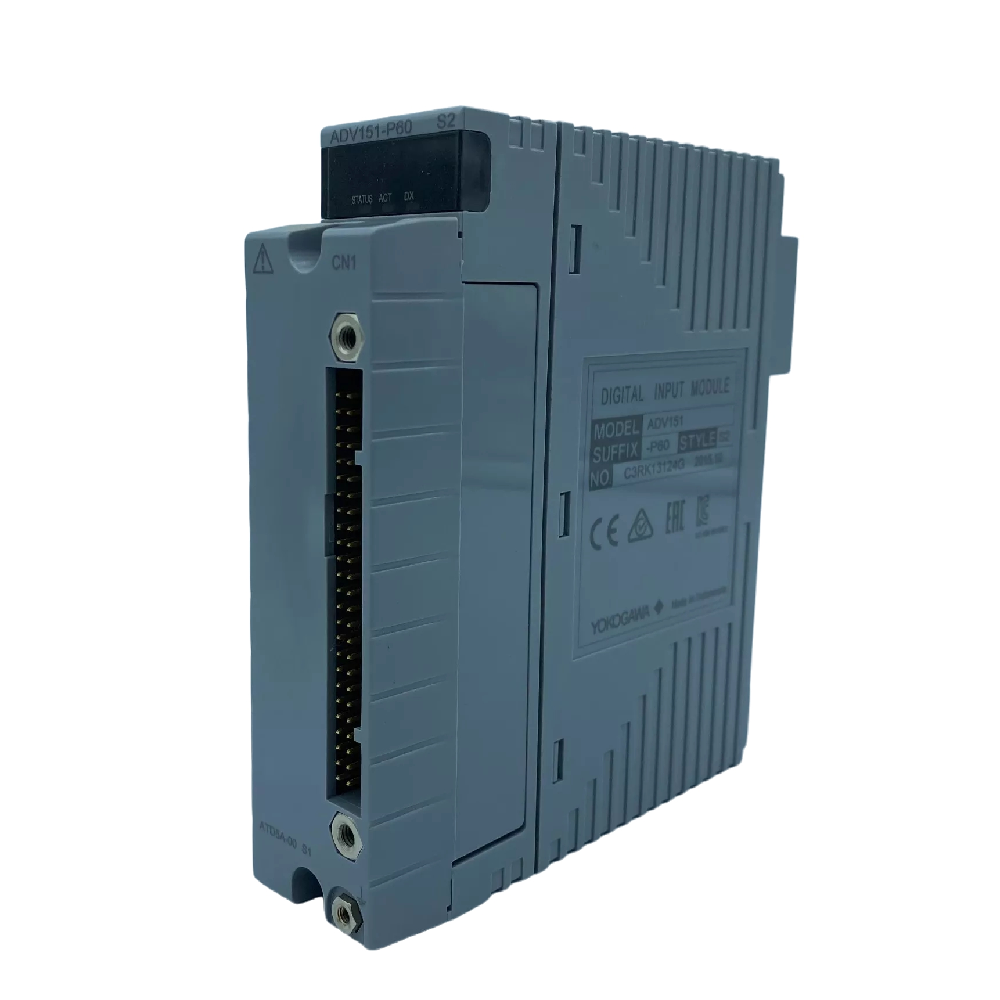

The Yokogawa ADV151-P60 STYLE S2 is a 32-channel digital input module designed for 24 V DC ON/OFF signal processing. It supports pushbutton edge counting, Sequence of Events (SOE) capture, and rapid signal response, making it ideal for high-reliability automation and control systems in industries such as power generation, oil & gas, and manufacturing.
🔑 Key Features
- Input Handling
- 32 channels of sink/source 24 V DC input.
- ON voltage: 18–26.4 V DC, OFF voltage: ≤ 5.0 V DC.
- Rated input current: 4.1 mA ±20% per channel.
- Electrical Isolation
- 2 kV AC isolation (input to system, 1 minute).
- 500 V AC isolation (between commons, per 16 channels).
- SOE & Pushbutton Support
- Captures Sequence of Events (SOE) with precise timestamps.
- Pushbutton detection: ≥ 20 ms ON, up to 25 Hz ON/OFF cycle.
- High Performance
- Input response time: ≤ 8 ms.
- Maximum allowable input: 30 V DC.
- Compact Design
- Weight: 0.30 kg.
- Supports pressure clamp terminals, dedicated AKB331 cable, or MIL connector cable.
📊 Technical Specifications
| Attribute | Details |
|---|---|
| Number of Channels | 32 |
| Input Voltage | 24 V DC (sink/source) |
| ON Voltage | 18 – 26.4 V DC |
| OFF Voltage | ≤ 5.0 V DC |
| Rated Input Current | 4.1 mA ±20% / channel |
| Max Allowable Voltage | 30.0 V DC |
| Withstand Voltage | 2 kV AC (signal ↔ system, 1 min) 500 V AC (between commons, 1 min) |
| Input Response Time | ≤ 8 ms |
| Pushbutton Input | Min ON: 20 ms Max cycle: 25 Hz |
| Max Current Consumption | 500 mA (5 V DC) |
| Weight | Approx. 0.30 kg |
| External Connection | Pressure clamp terminal, AKB331 cable, MIL connector cable |
🧩 Model & Suffix Codes
| Code | Description |
|---|---|
| ADV151 | Digital Input Module (32-ch, 24 V DC) |
| -P | With pushbutton input functionality |
| 6 | With status display (no explosion protection) |
| 0 | Basic type |
⚙️ Applications
- Sequence of Events Monitoring
Capture and timestamp ON/OFF transitions for troubleshooting and root-cause analysis. - Process Automation
Reliable detection of ON/OFF signals and pushbutton inputs across manufacturing and utility systems. - Safety-Critical Environments
Ensures robust digital input handling with strong isolation for control and protection IEDs.
Details
| Weight | 0.3 kg |
|---|---|
| Dimensions | 51 × 254 × 114 mm |
