Overview

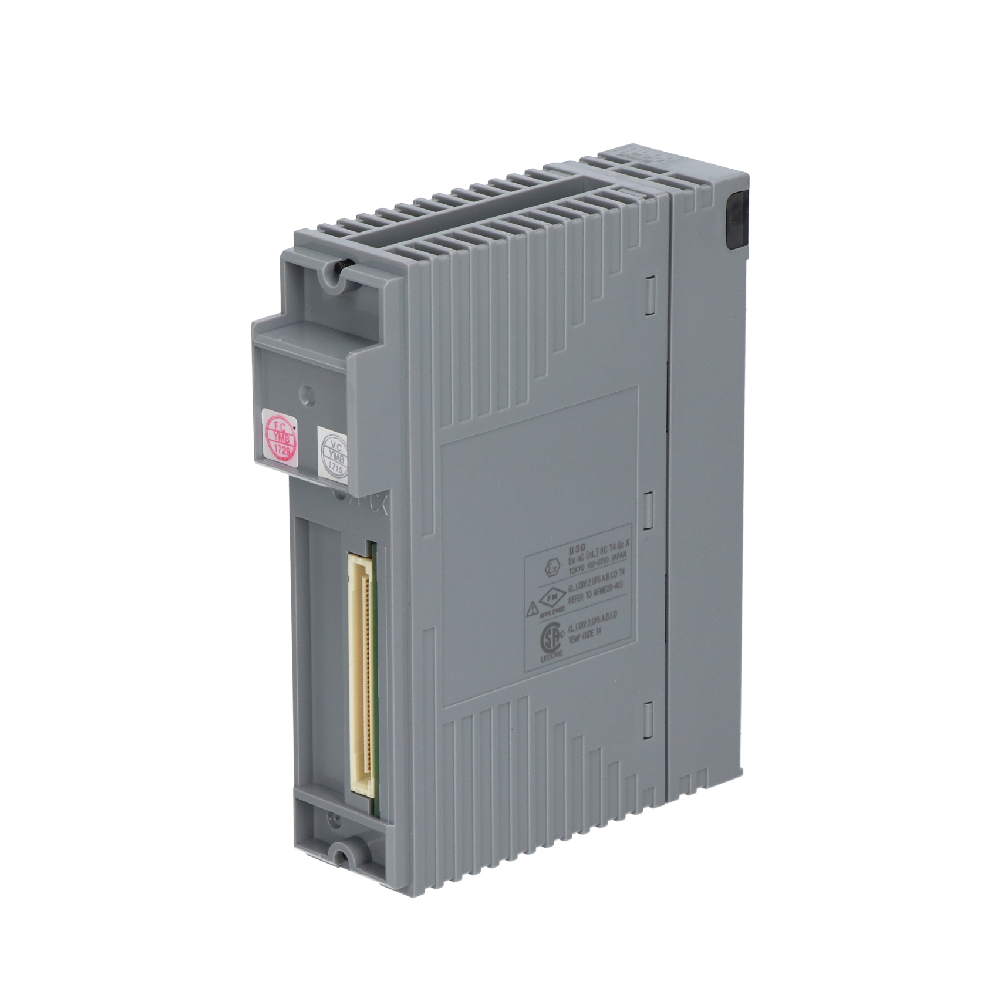

The YOKOGAWA ADV151-P10 Digital Input Module offers 32 channels to manage 24 V DC ON/OFF signals effectively. Moreover, it supports dual redundant configuration for critical industrial automation systems, ensuring consistent operational reliability.
Functional Highlights
- Dual Redundancy: Designed for high-availability systems, allowing fail-safe operation in critical environments.
- High Voltage Protection: Withstands up to 2 kV AC for input signal isolation and 500 V AC between commons.
- Multiple Functions: Detects ON/OFF status, performs pushbutton edge counting, and captures SOE data efficiently.
- Compact Design: Lightweight and easy to integrate into existing control racks with minimal footprint.
- Fast Response: Input status is processed within 8 ms, enabling real-time control and monitoring.
Technical Data
| Specification | ADV151-P10 |
|---|---|
| Number of Channels | 32 |
| Rated Input Voltage | 24 V DC (sink/source) |
| Input ON Voltage | 18–26.4 V DC |
| Input OFF Voltage | ≤ 5.0 V DC |
| Input Current | 4.1 mA ± 20% per channel |
| Maximum Allowable Voltage | 30 V DC |
| Withstanding Voltage | 2 kV AC (input to system, 1 min), 500 V AC (between commons, 1 min) |
| Input Response Time | ≤ 8 ms |
| Minimum ON Detection Time | 20 ms (pushbutton) |
| Maximum ON/OFF Cycle | 25 Hz (pushbutton) |
| Max Current Consumption | 500 mA (5 V DC) |
| Weight | Approx. 0.30 kg |
| Connection Types | Pressure clamp, AKB331 cable, MIL connector cable |
System Integration
This module integrates seamlessly into Yokogawa DCS and industrial automation systems. For instance, its SOE capture and fast response support precise monitoring and control of production processes. In addition, the dual redundancy ensures minimal downtime during critical operations.
FAQ
Q1: Is the ADV151-P10 module original and in stock?
A1: Yes, it is brand new, factory original, and ready for immediate shipment from our inventory.
Q2: What is the estimated shipping time?
A2: Orders ship within 3 days to 2 weeks depending on quantity, using DHL or similar logistics providers.
Q3: What warranty or support is offered for quality issues?
A3: We provide 30-day coverage for any manufacturing defects or shipping-related problems.
Details
| Weight | 0.3 kg |
|---|
