Product Overview

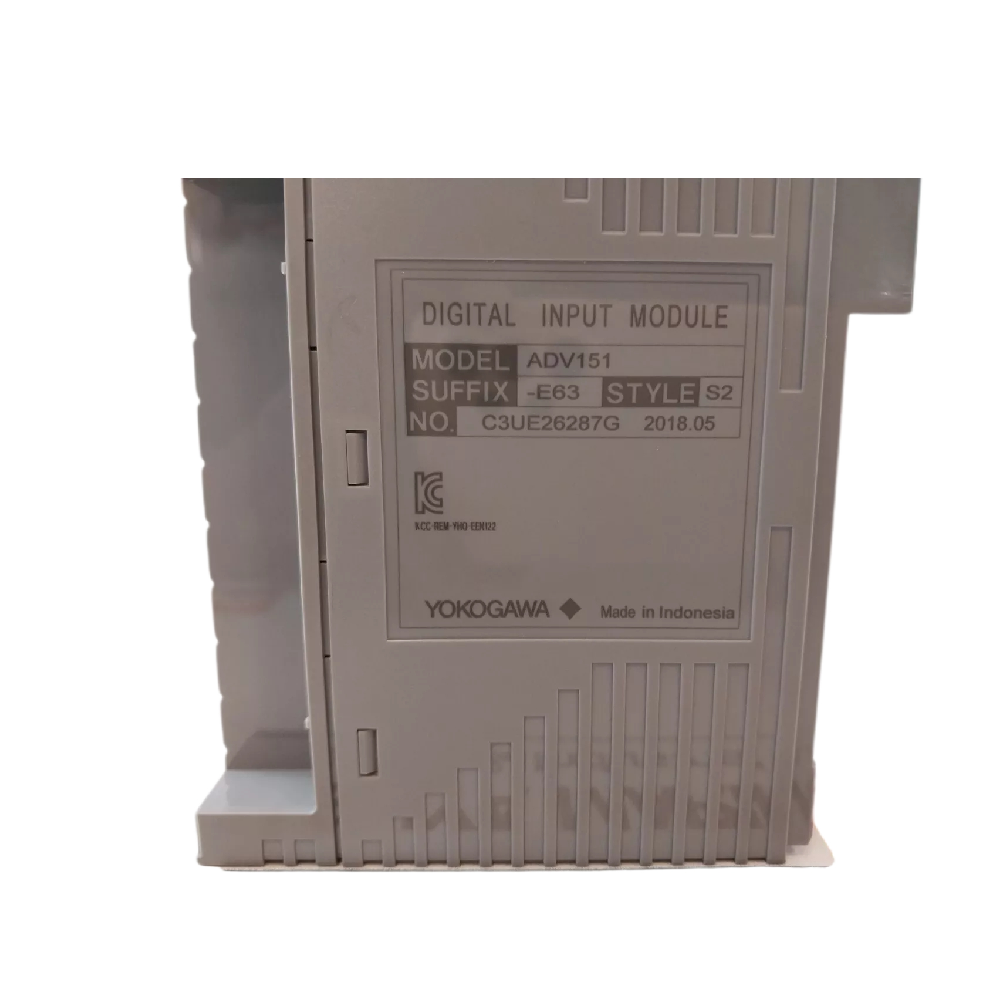

The ADV151-E63 by Yokogawa manages 32 or 64 isolated digital input channels with 24 V DC signals. It captures events using SOE functionality and integrates into dual-redundant systems, enhancing reliability. The module supports sink/source inputs, detects ON/OFF status changes, and counts pushbutton edges accurately. Its status display allows operators to monitor channel states clearly. Engineers can install the module in demanding industrial environments while maintaining precise system control.
Technical Specifications
| Attribute | Details |
|---|---|
| Model | ADV151-E63 |
| Manufacturer | Yokogawa |
| Category | Digital Input Module / SOE Capture |
| Number of Channels | 32 or 64 isolated channels |
| Input Voltage | 24 V DC (sink/source) |
| ON Voltage Range | 20 to 26.4 V DC |
| OFF Voltage Threshold | ≤ 5.0 V DC |
| Input Current | 2.5 mA ± 20% per channel |
| Max Allowable Voltage | 30.0 V DC |
| Withstand Voltage | 2 kV AC (input to system, 1 min), 500 V AC (between commons, 1 min) |
| Input Response Time | ≤ 8 ms for status input |
| Pushbutton Input | Min ON detection 20 ms, Max cycle 25 Hz |
| Current Consumption | 550 mA (5 V DC) |
| Weight | Approx. 0.30 kg |
| External Connection | Dedicated cable (AKB337) or MIL connector cable |
| Environmental Compliance | ISA Standard G3, temperature range -20°C to 70°C |
| Installation Requirements | ESB or Optical ESB bus node units only |
Key Features
- Captures digital events with SOE functionality, timestamping every change
- Handles 32 or 64 channels with isolated 24 V DC sink/source inputs
- Detects ON/OFF status changes with fast 8 ms response time
- Supports pushbutton input counting for dynamic systems
- Dual-redundant configuration enhances reliability and minimizes downtime
- Compact and lightweight design at 0.30 kg for easy installation
- ISA G3 option ensures corrosion resistance and wide temperature operation
Applications
- Sequence of Events Monitoring: Tracks and timestamps critical industrial events efficiently
- Process Automation: Supports power generation, oil and gas, and chemical processing
- Dual-Redundant Systems: Maintains system reliability and prevents downtime
Installation Notes
Install the ADV151-E63 in ESB or optical ESB bus node units. Avoid ER bus node units to maintain full functionality. Ensure all input signals use consistent polarity for optimal performance.
Model and Suffix Codes
| Code | Description |
|---|---|
| ADV151 | Digital Input Module (32-channel, 24 V DC) |
| -E | Includes SOE capture functionality |
| 6 | Includes status display; no explosion protection |
| 3 | ISA Standard G3 option, extended temperature (-20°C to 70°C) |
