Product Overview

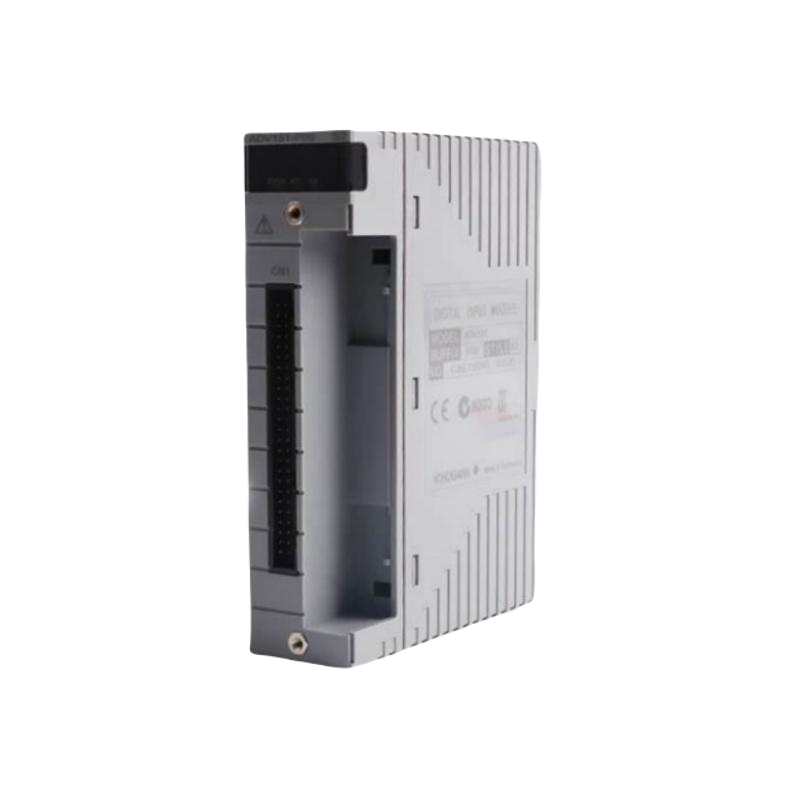

The ADV151-E63 from Yokogawa handles 32-channel ON/OFF signals efficiently, supporting dual-redundant configurations for enhanced reliability. It accepts 24 V DC sink/source inputs, and its SOE capture functionality records critical events with precise timestamps. Operators can monitor pushbutton actions, status inputs, and sequence of events data with high accuracy.
Key Features
- Supports 32 isolated digital input channels for flexible integration
- Captures Sequence of Events (SOE) data for critical process monitoring
- Detects ON/OFF statuses with 8 ms response time
- Counts pushbutton inputs with minimum 20 ms ON detection
- Handles maximum ON/OFF cycle at 25 Hz
- Provides robust isolation: 2 kV AC between input signal and system, 500 V AC between commons every 16 channels
- Offers dual-redundant configuration for high system uptime
- Lightweight at approximately 0.30 kg, suitable for compact installations
Technical Specifications
| Attribute | Details |
|---|---|
| Model | ADV151-E63 |
| Manufacturer | Yokogawa |
| Category | Digital Input Module |
| Input Channels | 32 |
| Input Voltage | 24 V DC (sink/source) |
| Input ON Voltage Range | 18 to 26.4 V DC |
| Input OFF Voltage Threshold | ≤ 5.0 V DC |
| Input Current | 4.1 mA ± 20% per channel |
| Maximum Input Voltage | 30.0 V DC |
| Withstand Voltage | 2 kV AC (input to system, 1 min) |
| 500 V AC (between commons, 1 min every 16 channels) | |
| Input Response Time | 8 ms or less |
| Pushbutton Input | Min ON: 20 ms, Max Cycle: 25 Hz |
| Maximum Current Consumption | 500 mA (5 V DC) |
| Weight | Approx. 0.30 kg |
| External Connection | Pressure clamp terminal, AKB331 cable, MIL connector cable |
| Environmental Option | ISA Standard G3; temperature range -20 to 70°C |
Model and Suffix Codes
| Code | Description |
|---|---|
| ADV151 | Digital Input Module (32 channels, 24 V DC) |
| -E | Includes SOE capture functionality |
| 6 | Includes status display; no explosion protection |
| 3 | ISA Standard G3 option with extended temperature |
Applications
- Industrial Event Monitoring: Tracks ON/OFF statuses and pushbutton inputs for troubleshooting
- Dual-Redundant Systems: Ensures system reliability in critical automation environments
- Process Automation: Supports power, chemical, and oil & gas industries
Installation Notes
Install the ADV151-E63 only in ESB Bus Node Units or Optical ESB Bus Node Units. Avoid ER Bus Node Units. Ensure all input signals share the same polarity for proper operation.
FAQ
Q1: Are these modules original Yokogawa products?
Yes, we provide full new, original Yokogawa modules with verified quality.
Q2: How quickly can I receive the module?
We ship within 3 days to 2 weeks depending on order size.
Q3: Which shipping methods do you offer?
We use DHL, FedEx, and other reliable logistics options.
Q4: Can I return a module if it has defects?
Yes, we accept returns within 30 days for quality-related issues.
Q5: Does this module support dual-redundant configurations?
Yes, the ADV151-E63 allows dual-redundant setup to enhance system reliability.
