Product Overview

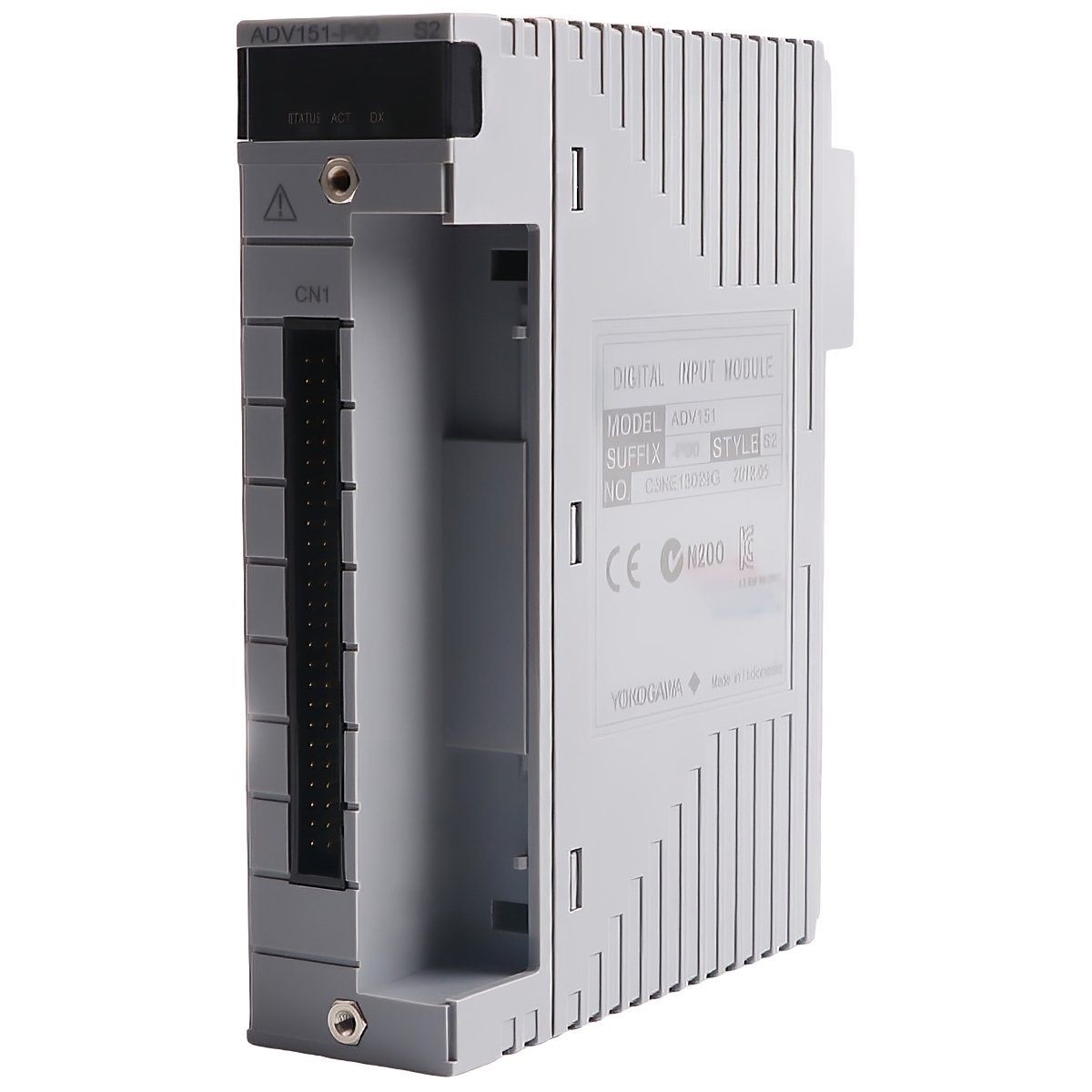

The ADV151-E60 by Yokogawa provides 32 isolated digital input channels for FCS systems, capturing and timestamping events using SOE functionality. Its built-in status display shows channel states clearly, and the module supports dual-redundant configurations for high reliability. Operators monitor events through the module directly or via integrated system interfaces. The ADV151-E60 only installs in ESB or optical ESB bus nodes, so engineers must plan accordingly.
Technical Specifications
| Attribute | Details |
|---|---|
| Model | ADV151-E60 |
| Manufacturer | Yokogawa |
| Category | Digital Input Module / SOE Capture |
| Number of Channels | 32 isolated channels |
| Input Voltage | 24 V DC (sink/source) |
| ON Voltage Range | 20 to 26.4 V DC |
| OFF Voltage Threshold | ≤ 5.0 V DC |
| Input Current | 2.5 mA ± 20% per channel |
| Max Allowable Voltage | 30.0 V DC |
| Withstand Voltage | 2 kV AC (input to system, 1 min), 500 V AC (between commons, 1 min) |
| Input Response Time | ≤ 8 ms for status inputs |
| Pushbutton Input | Min ON detection 20 ms, Max cycle 25 Hz |
| Current Consumption | 550 mA (5 V DC) |
| Weight | Approx. 0.30 kg |
| External Connection | Dedicated cable (AKB337) or MIL connector cable |
| Installation Requirements | ESB or optical ESB bus node units only |
Key Features
- Captures and timestamps digital events rapidly for precise monitoring
- Maintains 512 events every two seconds to prevent data loss
- Handles 32 isolated 24 V DC channels with sink/source flexibility
- Provides built-in status display for clear visibility of operations
- Supports dual-redundant system setups for maximum reliability
- Offers fast response time (≤ 8 ms) and accurate pushbutton input counting
- Withstands harsh electrical conditions with 2 kV/500 V AC isolation
Applications
- Sequence of Events Monitoring: Tracks and timestamps critical digital events efficiently
- Process Automation: Supports oil and gas, power generation, and chemical processes
- Dual-Redundant Systems: Ensures continuous operation and system reliability
Installation Notes
Install the ADV151-E60 only in ESB or optical ESB bus node units. Avoid ER bus node units to ensure proper operation. Ensure all input signals maintain the same polarity for optimal performance.
