Product Overview

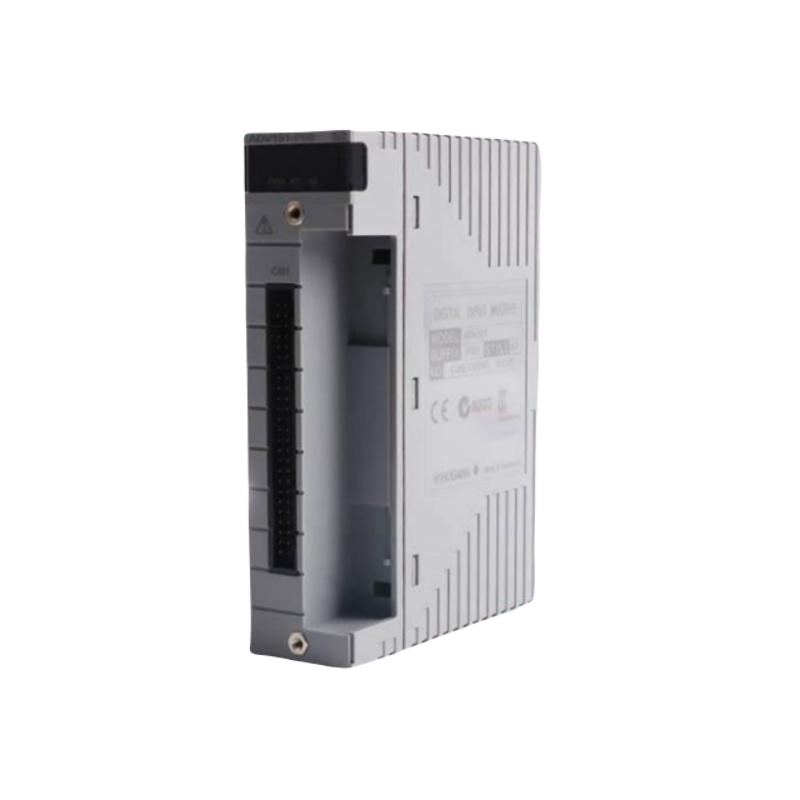

The ADV151-E60 from Yokogawa delivers reliable digital input handling for industrial automation. It supports 32 isolated channels of 24 V DC ON/OFF signals and records sequences of events (SOE capture) for accurate event tracking. The module integrates easily into Field Control Station (FCS) systems and dual-redundant setups, ensuring high availability and precise monitoring.
Key Features
- Monitors 32 digital input channels for extensive process coverage
- Handles standard 24 V DC signals with sink/source configuration
- Captures SOE data to log critical sequences of events for troubleshooting
- Provides electrical isolation to protect against noise and interference
- Supports dual-redundant configurations to improve system reliability
- Compact and lightweight for flexible installation in constrained spaces
Technical Specifications
| Attribute | Details |
|---|---|
| Model | ADV151-E60 |
| Manufacturer | Yokogawa |
| Category | Digital Input Module |
| Input Channels | 32 |
| Rated Input Voltage | 24 V DC (sink/source) |
| Input ON Voltage Range | 18 to 26.4 V DC |
| Input OFF Voltage Threshold | ≤ 5.0 V DC |
| Input Current | 4.1 mA ± 20% per channel |
| Maximum Allowable Voltage | 30.0 V DC |
| Withstanding Voltage | 2500 V AC (50/60 Hz, 1 min) between circuits |
| Functions | Status Input, Pushbutton Counting, SOE Capture |
| Weight | Approx. 0.30 kg |
| External Connection | Pressure clamp terminals, AKB331 cable, MIL connector cable |
| Compatibility | Works with Yokogawa FCS and automation systems |
Model and Suffix Codes
| Code | Description |
|---|---|
| ADV151 | Digital Input Module (32 channels, 24 V DC) |
| -E | Includes SOE capture functionality |
| 6 | Includes status display; no explosion protection |
| 0 | Basic type |
Applications
- Industrial Event Monitoring: Tracks ON/OFF states and pushbutton signals for accurate troubleshooting
- Process Automation: Supports oil & gas, power generation, and chemical industries
- Redundant System Integration: Provides dual-redundant setups to maximize system uptime
Installation Notes
Install the ADV151-E60 only in ESB Bus Node Units or Optical ESB Bus Node Units. Avoid ER Bus Node Units. Ensure all input signals share the same polarity for reliable operation.
FAQ
Q1: Are these modules original Yokogawa products?
Yes, we supply full new, original Yokogawa modules with verified quality.
Q2: How fast can I receive the module?
We ship within 3 days to 2 weeks depending on order size.
Q3: Which shipping methods do you offer?
We use DHL, FedEx, and other reliable logistics providers.
Q4: Can I return a module if it has defects?
Yes, we accept returns within 30 days for quality-related issues.
Q5: Does the module support SOE capture and status display?
Yes, the ADV151-E60 captures sequences of events and includes a visible status display.
Details
| Weight | 0.63 kg |
|---|
