Product Overview

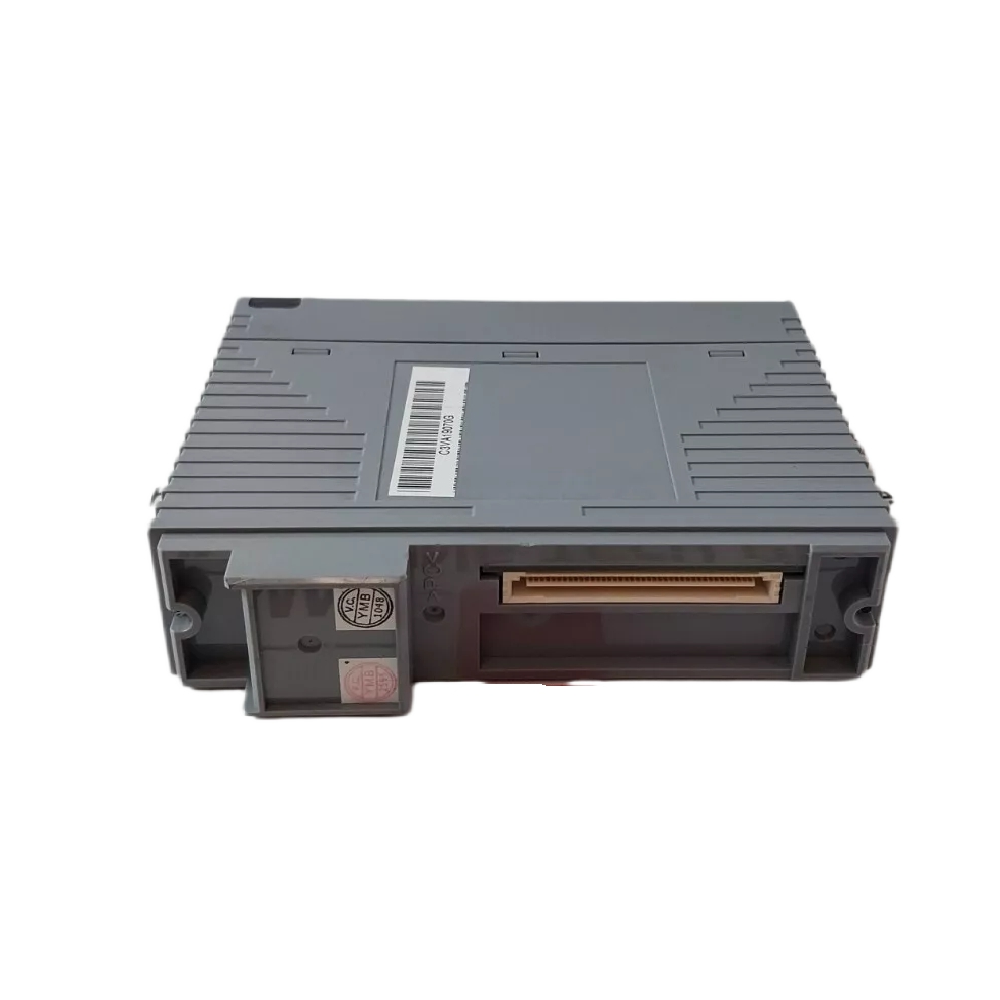

The ADV151-E50 by Yokogawa provides 32 isolated digital input channels for Field Control Station (FCS) systems. It captures and timestamps critical events using advanced Sequence of Events (SOE) functionality. The module stores up to 512 events every two seconds, allowing operators to track high-frequency signals without missing data. Engineers access SOE data directly through Human Interface Stations (HIS) using the SOE Viewer software. The module integrates with ESB and optical ESB bus node units, but it cannot operate on ER bus nodes.
Technical Specifications
| Attribute | Details |
|---|---|
| Model | ADV151-E50 |
| Manufacturer | Yokogawa |
| Category | Digital Input Module / SOE Capture |
| Number of Channels | 32 isolated digital inputs |
| Input Voltage | 24 V DC (isolated) |
| Event Buffer Capacity | 512 events every 2 seconds |
| Bus Node Compatibility | Works with ESB or optical ESB bus node units |
| FCS Module Capacity | Up to 78 modules with VP6F1550, or 110 modules |
| Installation Limitation | Not compatible with ER bus node units |
| SOE Integration | Accessible via HIS Station Status Display |
| Event Storage Access | Viewable through SOE Viewer software |
Key Features
- Captures and timestamps digital events continuously for precise monitoring
- Stores up to 512 events every two seconds even in high-activity conditions
- Connects seamlessly to ESB and optical ESB bus node units
- Handles 32 isolated 24 V DC input channels for reliable operation
- Provides immediate event access via HIS stations and SOE Viewer software
- Enhances troubleshooting and control in critical industrial processes
Applications
- Sequence of Events Monitoring: Tracks critical digital events in real time for troubleshooting
- Process Automation: Supports power generation, oil and gas, and chemical industries
- Control System Integration: Connects to Yokogawa’s Vnet/IP networks for efficient control
Related Parts & Services
- Yokogawa ESB Bus Node Units and Optical ESB Bus Node Units
- FCS System Digital Input Modules
- SOE Monitoring and Automation Accessories
FAQ
Q1: Are these modules factory new?
Yes, we supply 100% original Yokogawa products with verified quality.
Q2: How quickly do you ship after ordering?
We usually ship within 3 days to 2 weeks depending on the order size.
Q3: Which shipping methods do you use?
We ship via DHL, FedEx, and other reliable logistics providers.
Q4: Can I return a defective module?
Yes, we accept returns within 30 days for any quality-related issues.
Q5: Will the module miss events during high-frequency signals?
No, it records up to 512 events every two seconds, ensuring accurate monitoring.
Details
| Weight | 0.63 kg |
|---|
