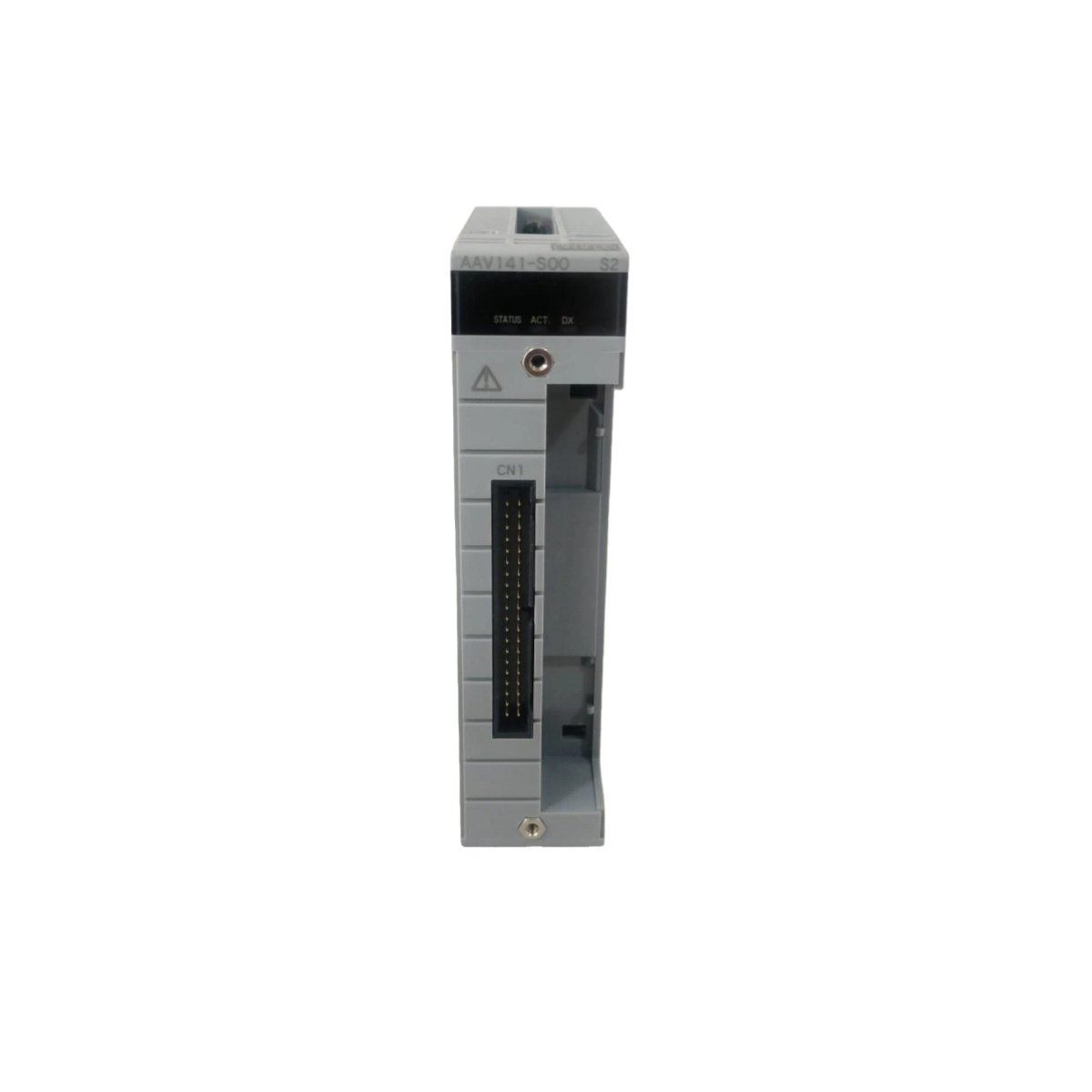

Core Technical Specifications of the Yokogawa AAV141-S00 Module
The Yokogawa AAV141-S00 accepts standard analog signals from field devices. This module provides 8 isolated input channels for maximum configuration flexibility. You can set each channel independently for 1-5V, 0-10V, or 4-20 mA ranges. The device achieves 16-bit resolution for accurate signal conversion. Each channel includes built-in surge protection for wiring safety. You will find a removable terminal block for every input pair. This design simplifies maintenance without disturbing existing connections.
| Parameter | Specification |
|---|---|
| Input Channels | 8 isolated differential inputs |
| Voltage Ranges | 1-5V, 0-10V |
| Current Range | 4-20 mA |
| Resolution | 16 bits |
| Accuracy | ±0.1% of span |
| Input Impedance | 1 MΩ (voltage), 250 Ω (current) |
| Surge Protection | Built-in, 2 kV rating |
Physical Dimensions and Weight Information
The Yokogawa AAV141-S00 weighs approximately 0.33 kilograms for lightweight mounting. Its dimensions measure 12.5 cm in height and 4.5 cm in width. The front panel includes 8 green LED indicators for channel activity. Each channel uses a screw-type terminal block for secure connections. The module stores no internal energy for safe hot-swapping. You will find a 24-pin backplane connector for system integration. The enclosure meets IP30 protection standards for control rooms.
Environmental Ratings and Manufacturer Details
This analog input module operates reliably from -10°C to 55°C ambient temperatures. The Yokogawa AAV141-S00 consumes less than 2.5 watts of power. You can mount this unit vertically or horizontally in any FA-M3 rack. Yokogawa Electric Corporation manufactures this precision input module. The Yokogawa AAV141-S00 belongs to the FA-M3 series controller family. This module carries CE and UL certifications for global deployment.
Details
| Weight | 0.7 kg |
|---|---|
| Dimensions | 2.5 × 20.3 × 15.2 mm |
