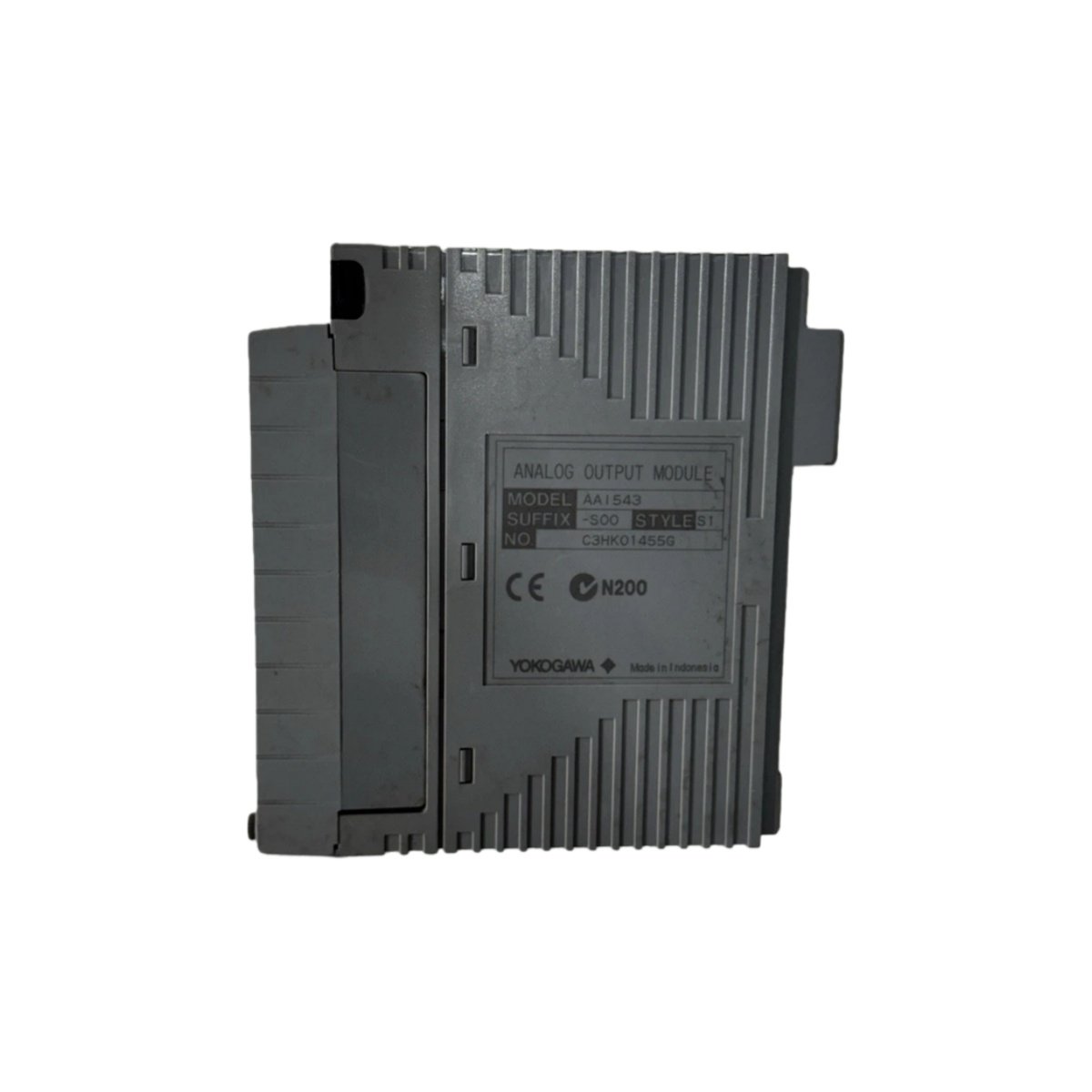

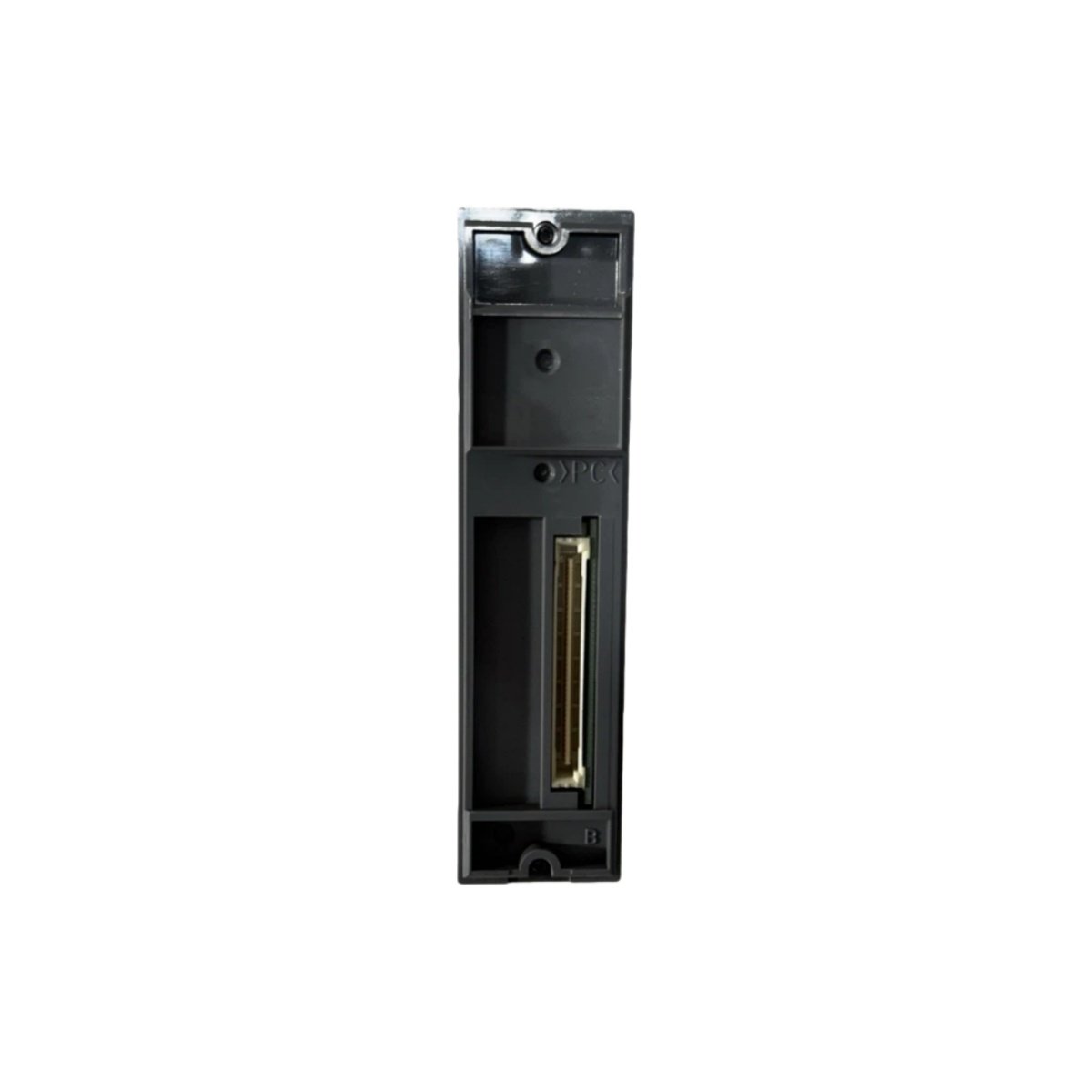

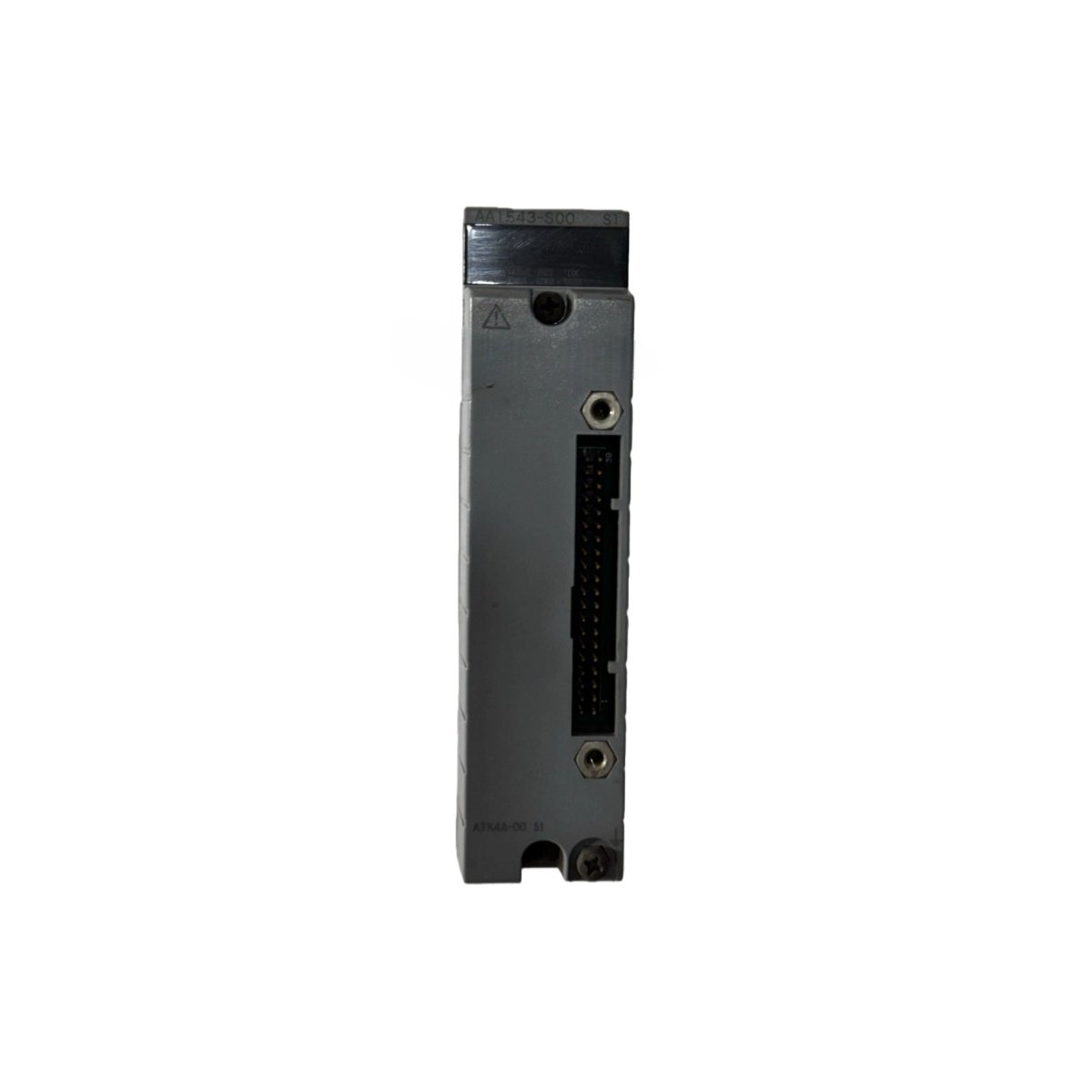

The Yokogawa AAI543-S00 serves as a sophisticated analog output module designed for demanding industrial automation applications. We engineered this unit to deliver precise 4 to 20 mA signals across 16 fully isolated channels. It provides flexible configuration options including standard or fast switch-over response. Consequently, this module ensures reliable signal transmission for critical process control operations.
Technical Specifications and Key Features
Understanding the exact technical attributes of the Yokogawa AAI543-S00 is essential for proper system integration. We have designed this output module to meet rigorous industrial standards for precision and reliability. Its isolated channel architecture prevents signal interference and ground loops between outputs. The table below details its core design and operational capabilities.
| Specification | Details |
|---|---|
| Model Number | AAI543-S00 |
| Product Type | Analog Output Module |
| Output Channels | 16 isolated channels |
| Output Signal | 4 to 20 mA DC |
| Communication Protocol | HART-enabled option |
| Switch-Over Response | Standard or fast response options |
| Redundancy Options | Standard and fast redundancy configurations |
| Temperature Range | -20 to 70 °C (with ISA Standard G3 option) |
| Explosion Protection | Available option for hazardous areas |
Advanced Configuration and Flexibility
This Yokogawa AAI543-S00 module excels in providing versatile configuration options for diverse application requirements. You can select standard or fast switch-over response based on your process dynamics. The module also offers both standard and fast redundancy configurations to enhance system reliability. Therefore, you can tailor the performance to match specific control loop demands.
The AAI543-S00 includes an optional HART protocol for digital communication over analog signals. It operates reliably across a wide temperature range from -20 to 70 °C with the ISA Standard G3 option. Additionally, the module supports explosion protection configurations for installation in hazardous environments. This flexibility makes it suitable for a broad spectrum of industrial applications.
Seamless Integration with Yokogawa Systems
As a genuine Yokogawa component, the AAI543-S00 offers guaranteed compatibility with CENTUM VP and CENTUM CS 3000 platforms. You can install it directly into compatible I/O racks for streamlined system expansion. Its isolated channel design ensures signal integrity even in electrically noisy environments. The module adheres to the strict quality standards associated with the Yokogawa automation portfolio.
We recommend this analog output module for applications requiring flexible redundancy and switch-over options. Its wide operating temperature range accommodates installations in harsh environmental conditions. Always verify the specific configuration options for your application requirements. The Yokogawa AAI543-S00 represents a versatile choice for precision analog output control.
Details
| Weight | 0.7 kg |
|---|---|
| Dimensions | 2.5 × 20.3 × 15.2 mm |
