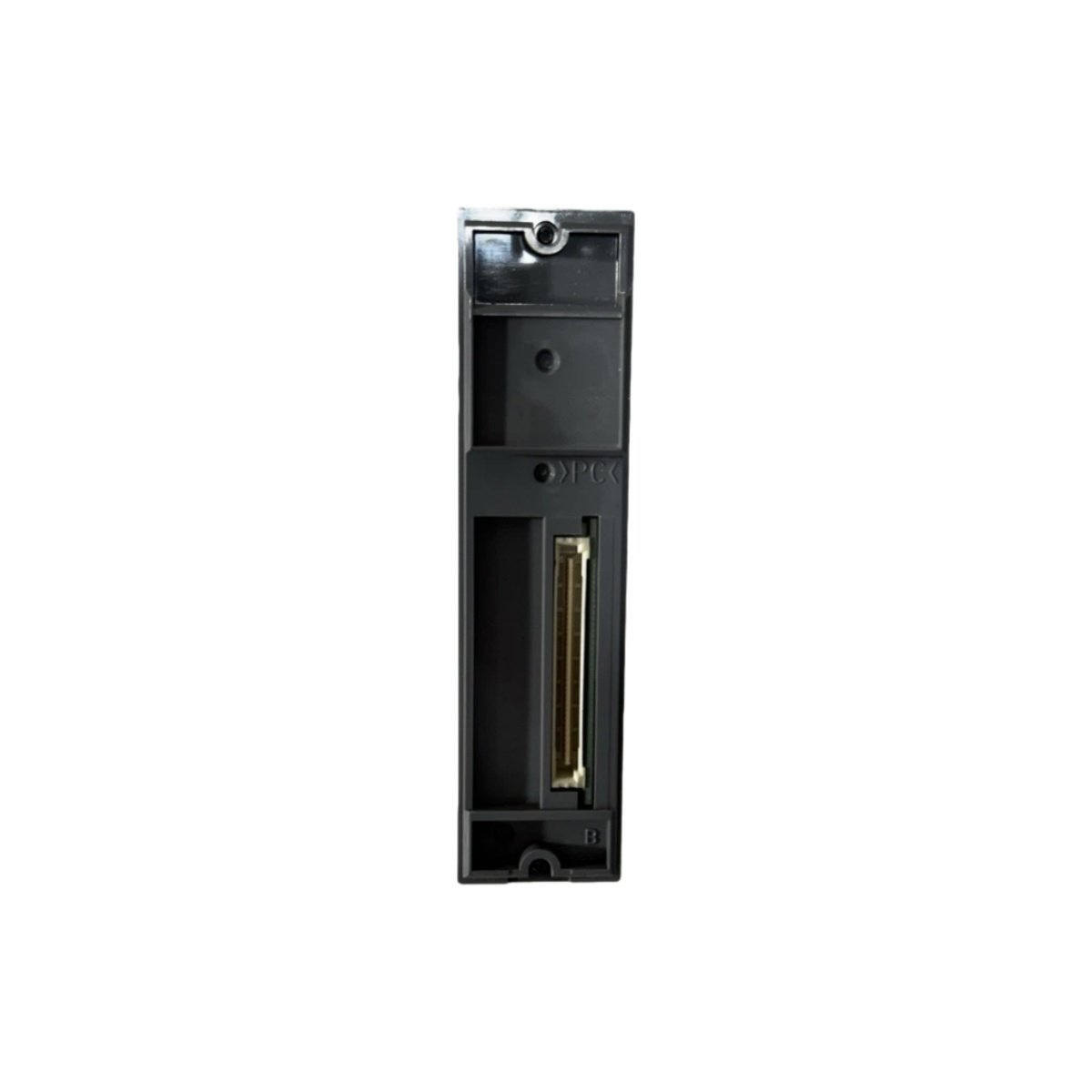

The Yokogawa AAI543-S00/A4S00 serves as a rugged analog output module engineered for challenging industrial automation environments. We designed this unit to deliver precise 4 to 20 mA signals across 16 fully isolated channels. It includes the ISA Standard G3 option for extended temperature operation from -20 to 70 °C. Consequently, this module ensures reliable signal transmission in harsh industrial conditions.
Technical Specifications and Key Features
Understanding the exact technical attributes of the Yokogawa AAI543-S00/A4S00 is essential for proper system integration. We have engineered this output module to meet stringent industrial standards for precision and durability. Its isolated channel architecture prevents signal interference and ground loops between outputs. The table below details its core design and operational capabilities.
| Specification | Details |
|---|---|
| Model Number | AAI543-S00/A4S00 |
| Product Type | Analog Output Module |
| Output Channels | 16 isolated channels |
| Output Signal | 4 to 20 mA DC |
| Communication Protocol | HART-enabled option |
| Switch-Over Response | Standard or fast response options |
| Redundancy Options | Standard and fast redundancy configurations |
| Temperature Range | -20 to 70 °C (with ISA Standard G3 option) |
| Explosion Protection | Available option for hazardous areas |
Advanced Configuration and Environmental Durability
This Yokogawa AAI543-S00/A4S00 module excels in providing versatile configuration options for diverse application requirements. You can select standard or fast switch-over response based on your process dynamics. The module also offers both standard and fast redundancy configurations to enhance system reliability. Therefore, you can tailor the performance to match specific control loop demands.
The AAI543-S00/A4S00 includes the ISA Standard G3 option for reliable operation in extreme temperatures. It supports an optional HART protocol for digital communication over analog signals. Additionally, the module offers explosion protection configurations for installation in hazardous areas. This rugged design makes it suitable for a broad spectrum of demanding industrial applications.
Seamless Integration with Yokogawa Systems
As a genuine Yokogawa component, the AAI543-S00/A4S00 offers guaranteed compatibility with CENTUM VP and CENTUM CS 3000 platforms. You can install it directly into compatible I/O racks for streamlined system expansion. Its isolated channel design ensures signal integrity even in electrically noisy environments. The module adheres to the strict quality standards associated with the Yokogawa automation portfolio.
We recommend this analog output module for applications requiring rugged construction and extended temperature range. Its wide operating temperature from -20 to 70 °C accommodates installations in harsh environments. Always verify the specific configuration options for your application requirements. The Yokogawa AAI543-S00/A4S00 represents a durable choice for precision analog output control.
Details
| Weight | 0.7 kg |
|---|---|
| Dimensions | 2.5 × 20.3 × 15.2 mm |
