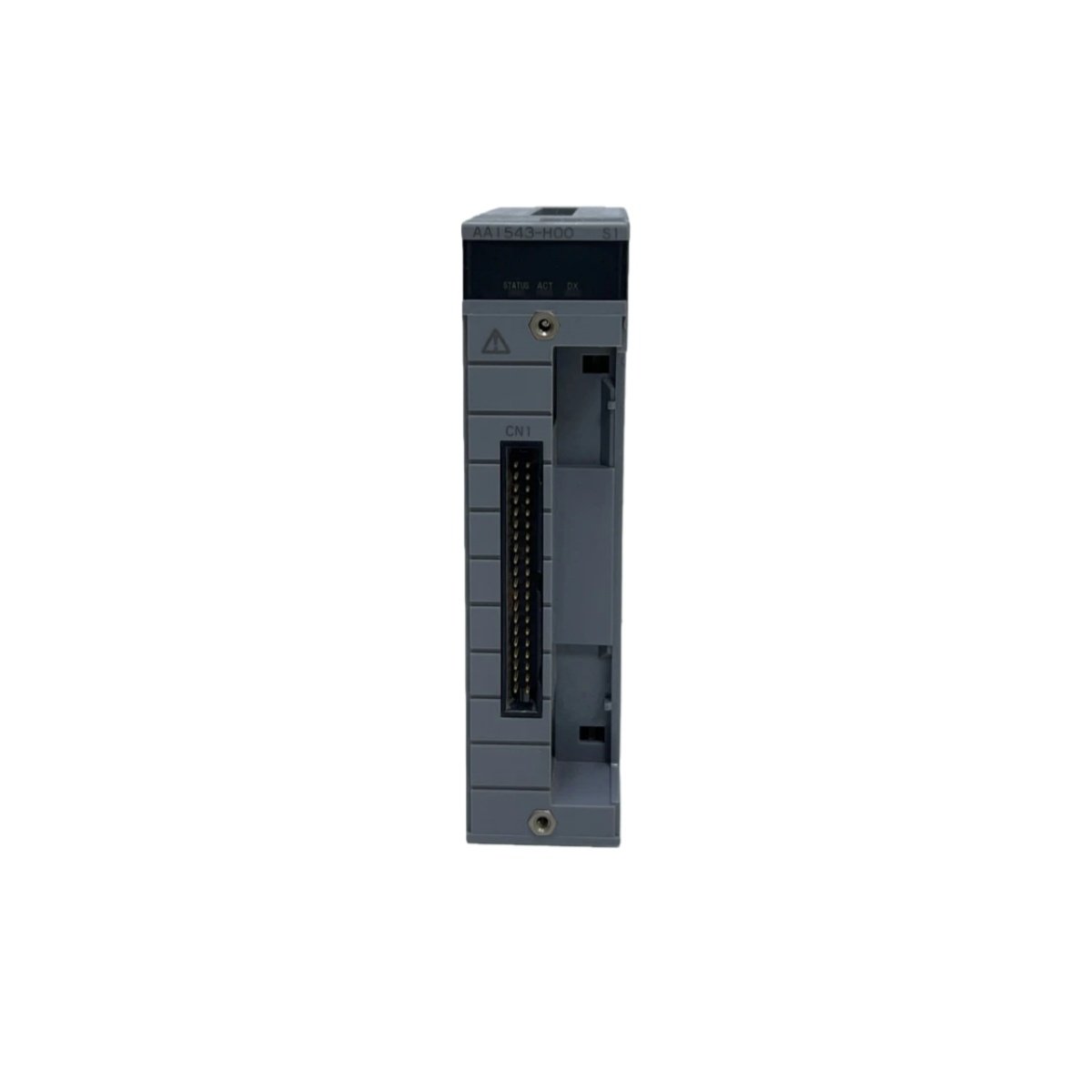

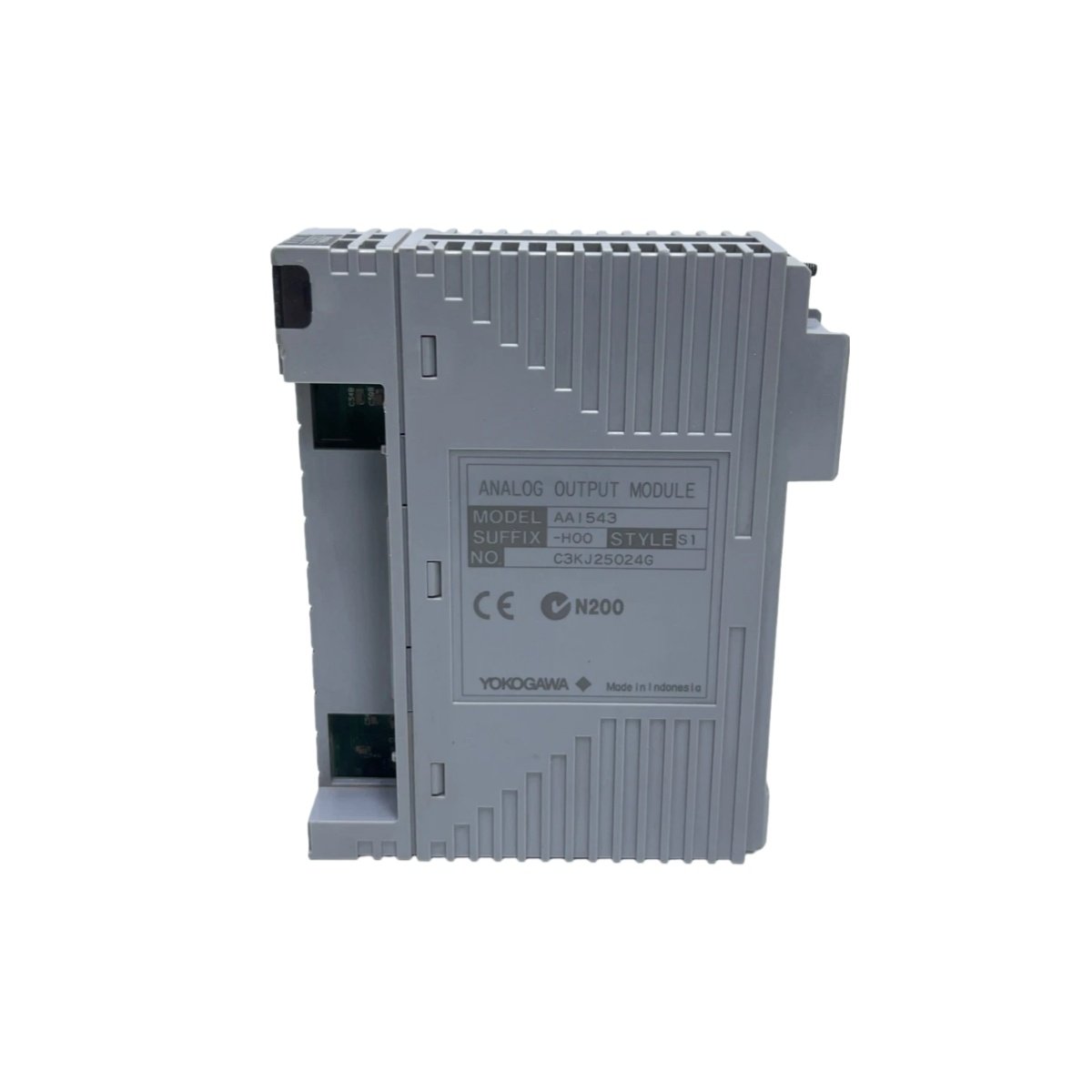

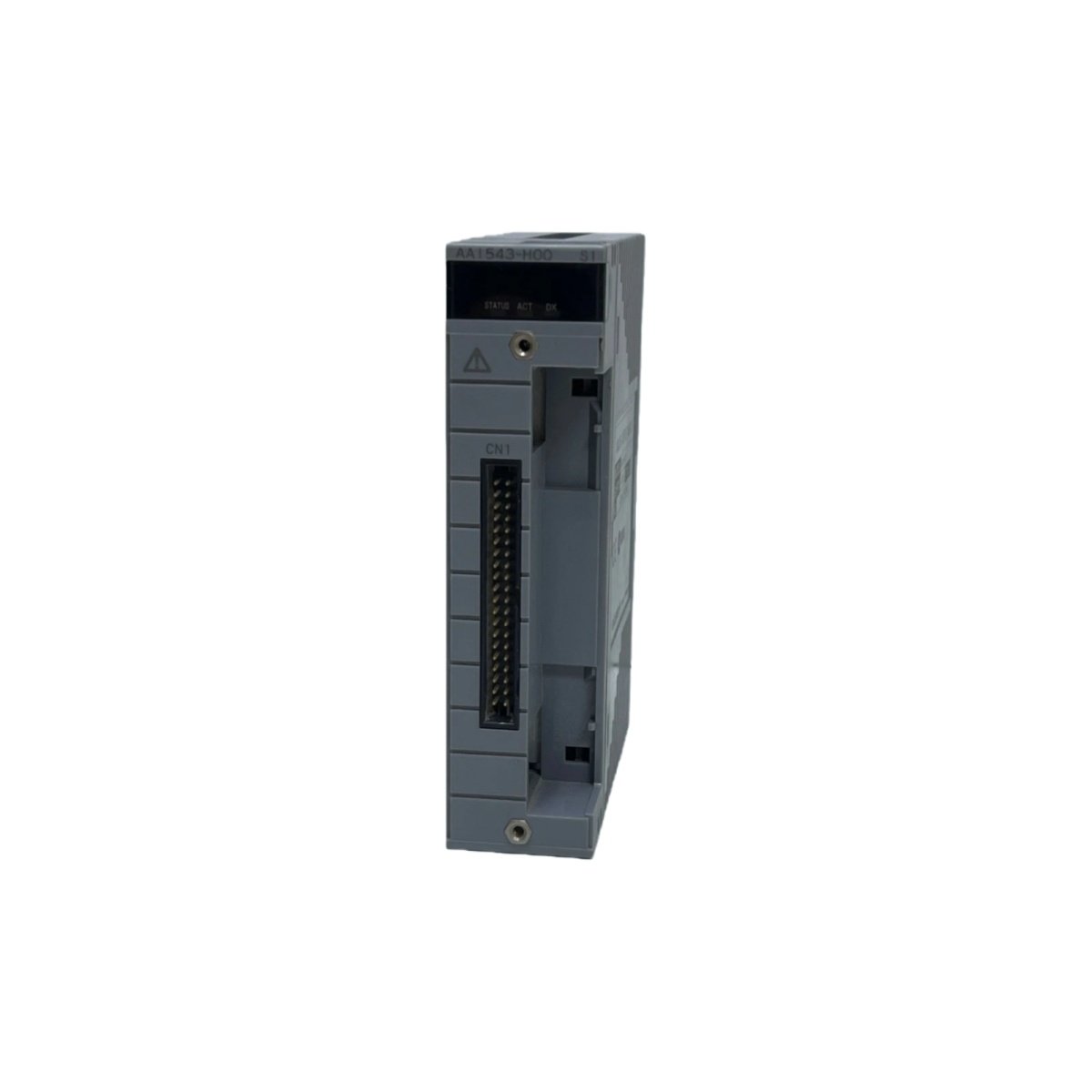

The Yokogawa AAI543-H00 functions as a high-performance analog output module for advanced industrial control applications. We engineered this unit to integrate seamlessly with CENTUM VP and CENTUM CS 3000 distributed control systems. It delivers precise 4 to 20 mA signals across 16 isolated channels to actuators and valves. Consequently, this module ensures accurate positioning and reliable process regulation in demanding environments.
Technical Specifications and Key Features
Understanding the exact technical attributes of the Yokogawa AAI543-H00 is essential for proper system integration. We have designed this output module to meet rigorous industrial standards for accuracy and reliability. Its isolated channel architecture prevents ground loops and interference between outputs. The table below details its core design and operational capabilities.
| Specification | Details |
|---|---|
| Model Number | AAI543-H00 |
| Product Type | Analog Output Module |
| Output Channels | 16 isolated channels |
| Output Signal | 4 to 20 mA DC |
| Communication Protocol | HART-enabled (digital over analog) |
| Load Resistance | 0 to 750 Ω |
| Accuracy | ±48 µA |
| Data Update Period | 10 milliseconds |
| Circuit-Open Detection | Less than 0.65 mA |
| Temperature Drift | ±16 µA per 10°C change |
| Withstanding Voltage | 1500 V AC for 1 minute |
| Power Consumption (5 V DC) | 230 mA |
| Power Consumption (24 V DC) | 540 mA |
Advanced Output Capabilities with HART Communication
This Yokogawa AAI543-H00 module excels in providing high-precision analog output for critical control loops. It includes HART communication capabilities for smart device integration and remote configuration. The module supports redundant configurations for maximum system availability in critical applications. Therefore, you can achieve bumpless switch-over without process disruption during failures.
The AAI543-H00 features circuit-open detection below 0.65 mA for immediate fault identification in the field. Its fast 10 ms data update period ensures responsive control for dynamic processes. Additionally, the module maintains exceptional stability with minimal drift due to temperature changes. This precision guarantees reliable operation in environments with fluctuating ambient conditions.
Seamless Integration with CENTUM Systems
As a genuine Yokogawa component, the AAI543-H00 offers guaranteed compatibility with CENTUM VP and CENTUM CS 3000 platforms. You can install it directly into compatible I/O racks for streamlined system expansion. Its 1500 V AC withstanding voltage ensures robust isolation between outputs and the system. The module adheres to the strict quality standards associated with the Yokogawa automation portfolio.
We recommend this analog output module for applications requiring 16 isolated channels with HART capability. Its load resistance range from 0 to 750 Ω accommodates various field devices. Always verify the power consumption requirements for your specific system configuration. The Yokogawa AAI543-H00 represents a reliable choice for precision analog output control.
Details
| Weight | 0.7 kg |
|---|---|
| Dimensions | 2.5 × 20.3 × 15.2 mm |
