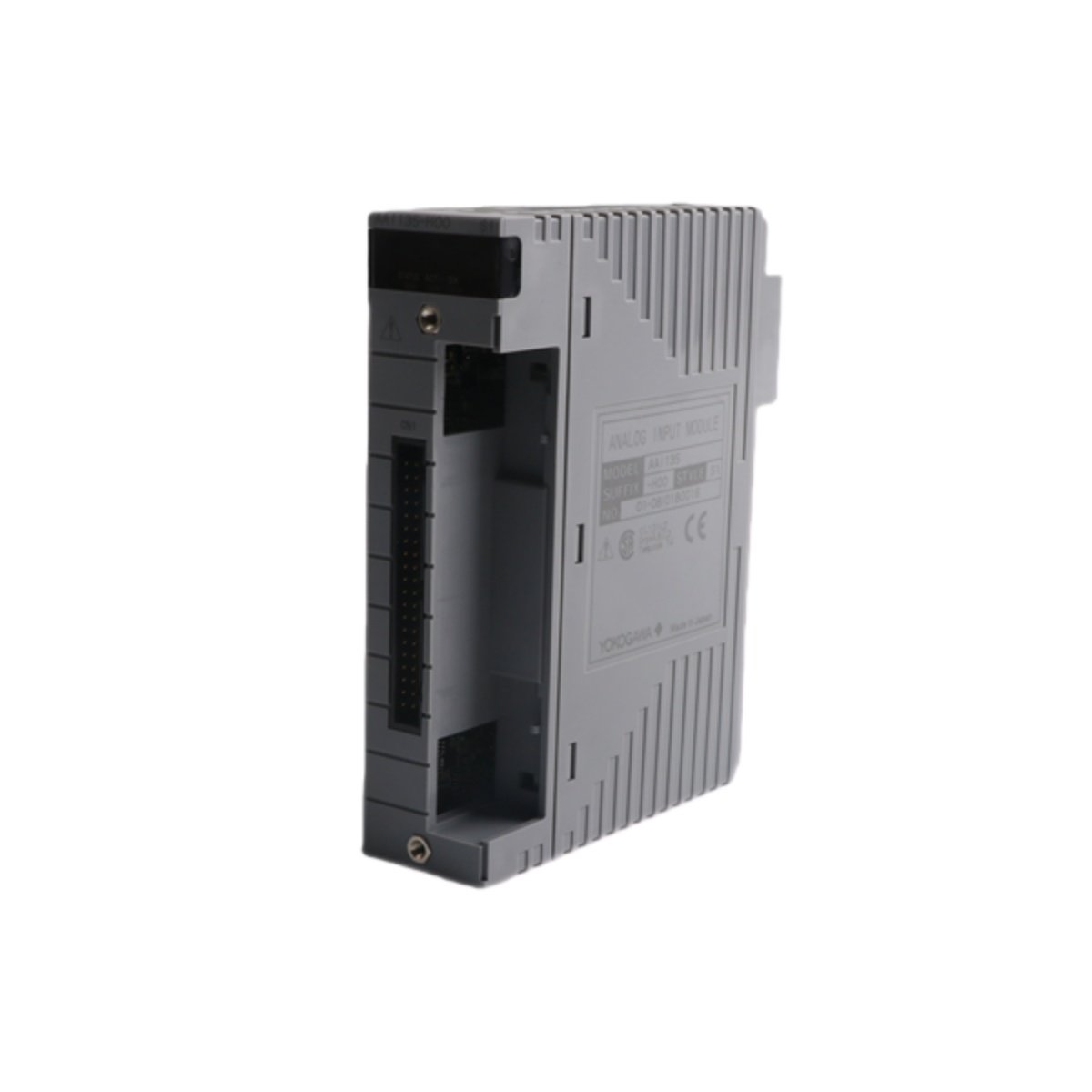

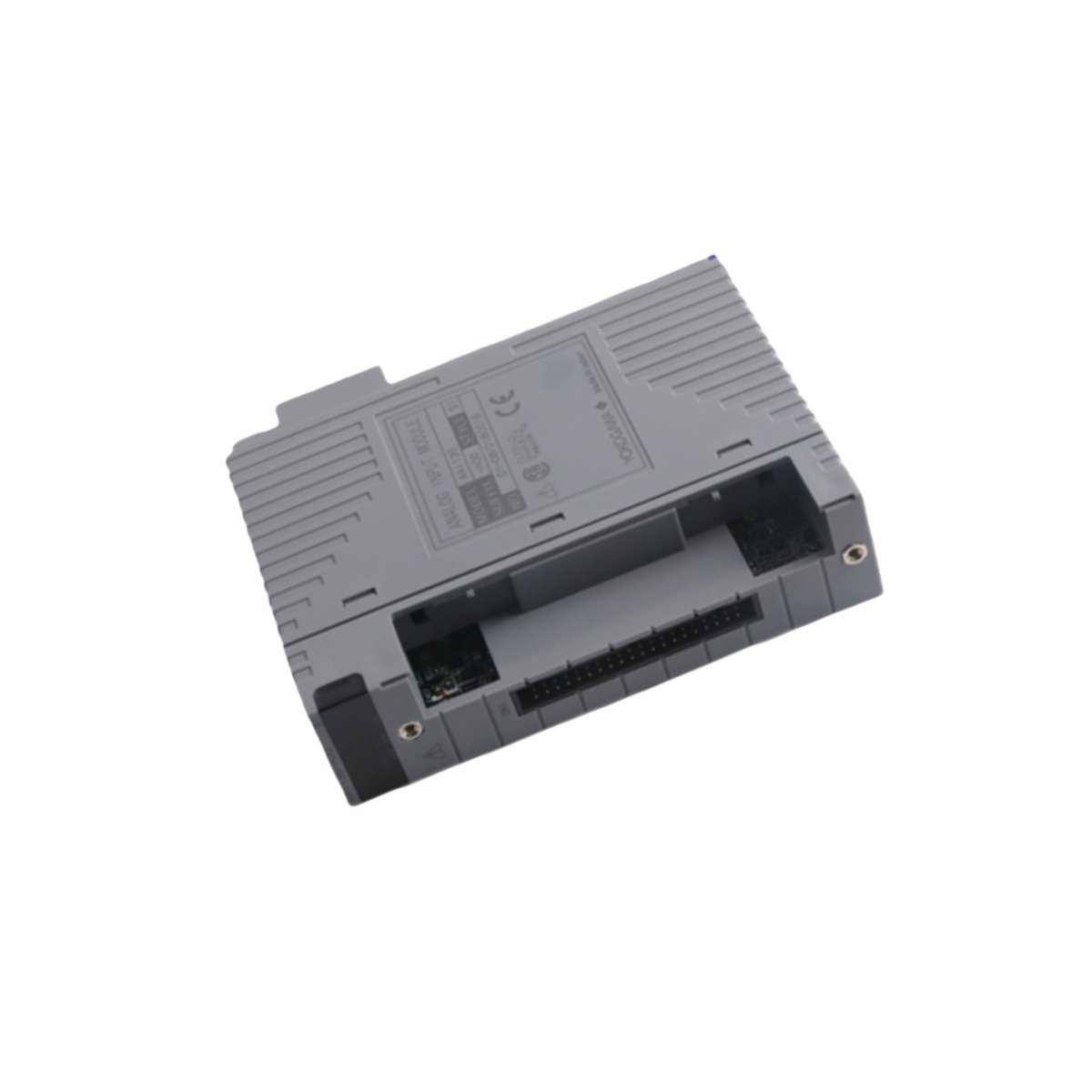

The Yokogawa AAI135-H00 is an 8-channel analog input module engineered specifically for CENTUM CS 3000 and CENTUM VP distributed control systems. Each channel features complete galvanic isolation and integrated HART protocol pass-through capability. This module delivers exceptional signal fidelity for critical process automation applications.

Key Technical Specifications

Integrated HART Communication for Smart Device Management

The AAI135-H00 includes full HART modem functionality on every input channel. You therefore access transmitter diagnostics, calibration data, and device status directly through the DCS. This capability eliminates separate HART multiplexers and associated wiring. Consequently, you reduce both capital expenditure and ongoing maintenance costs.

Per-Channel Isolation Eliminates Ground Loops

Each of the eight inputs provides complete 500 V AC galvanic isolation. You can connect field devices with different ground references without concern. The AAI135-H00 prevents circulating currents that otherwise compromise measurement accuracy. This isolation also protects sensitive DCS electronics from transient surges.

Dual Accuracy Specifications for Critical Loops

Yokogawa guarantees ±16 microamp absolute accuracy across the full 4–20 mA range. Temperature drift adds only ±16 microamps per 10 °C ambient change. Your flow, pressure, and level measurements remain within 0.1 percent of span. The AAI135-H00 therefore suits custody transfer and safety-instrumented functions.

Simultaneous Analog and Digital Data Paths

This module transmits analog current values and HART digital data concurrently. You receive the primary process variable through the fast 10 ms analog path. Simultaneously, secondary variables and diagnostic alerts arrive via the HART channel. The AAI135-H00 thus provides complete device visibility without compromise.

Ten-Millisecond Update for Dynamic Processes

All eight channels update synchronously every 10 milliseconds. You therefore obtain true simultaneous sampling across all connected transmitters. This performance supports fast chemical reactions and compressor antisurge control. The AAI135-H00 introduces no phase delay between related measurements.

Integrated Transmitter Power Supply

The module supplies regulated DC power to all eight two-wire transmitters. You see 15.0 volts available at 20 milliamps loop current. Open-circuit voltage reaches 29.3 volts maximum. Therefore, the AAI135-H00 powers even long cable runs without additional field power supplies.

Flexible Field Termination Options

You choose among pressure clamp terminals, MIL connectors, or KS cable assemblies. Pressure clamps accept bare copper wire from 0.5 to 2.5 mm² cross-section. MIL connectors provide quick disconnect for panel shop prefabrication. KS cables offer pre-terminated harnesses for standardized installations.

Mechanical and Environmental Specifications

The AAI135-H00 weighs exactly 0.3 kilograms with all connectors installed. Its 45 mm wide housing mounts directly into ESB and ER bus node racks. You operate this module continuously from -20 °C to +70 °C ambient. Non-condensing humidity tolerance reaches 95 percent.

Hazardous Location Application Notes

This module does not comply with RoHS material restrictions by design. You must install appropriate Zener barriers or isolators in explosive atmospheres. The AAI135-H00 itself installs only in general-purpose or protected areas. Always consult the product certification manual for area classification details.
