This rugged operator interface provides reliable control and visualization for industrial environments. Xycom built this unit to withstand harsh factory conditions while maintaining consistent performance. Operators will find the interface responsive and intuitive for daily machine interaction.
Core Technical Specifications

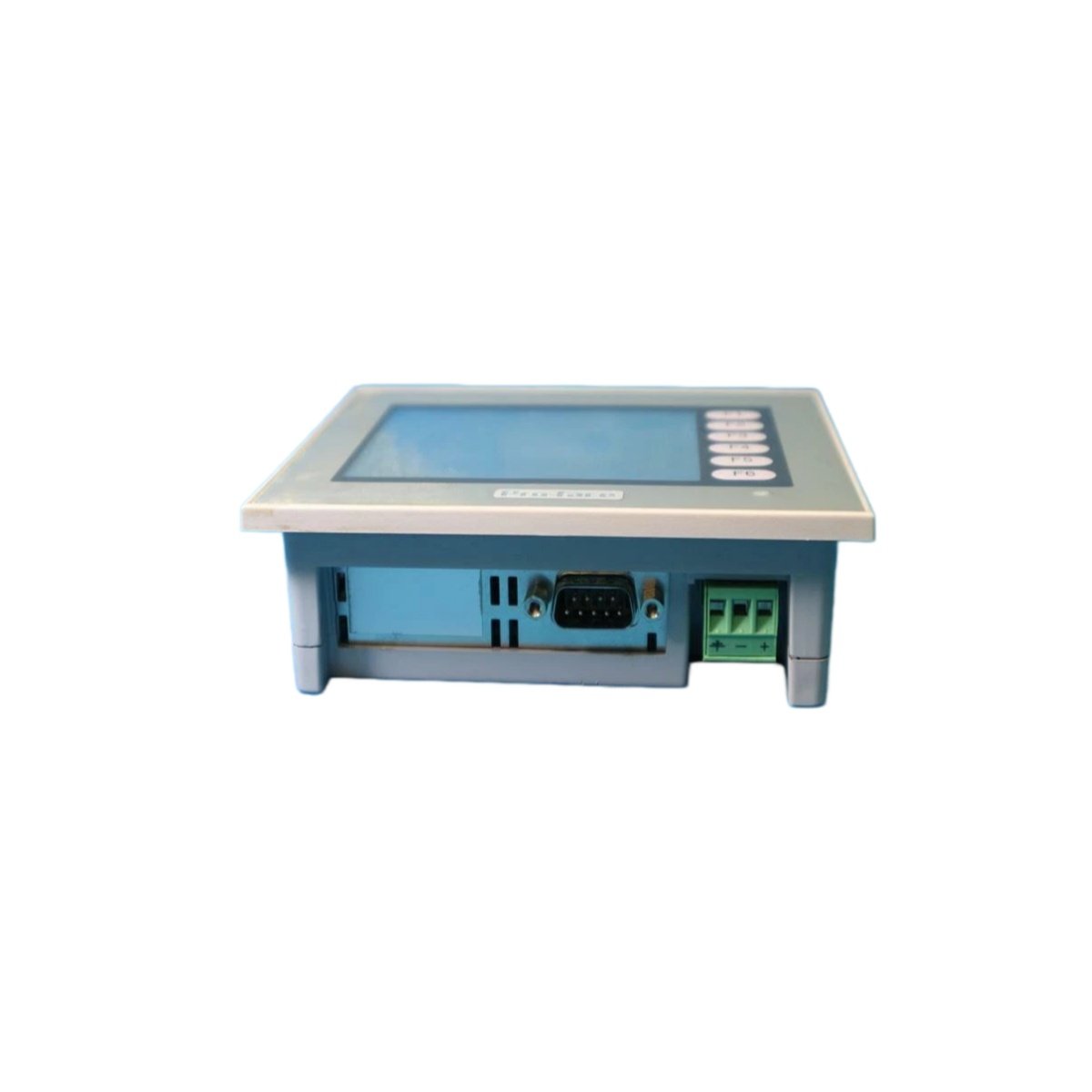

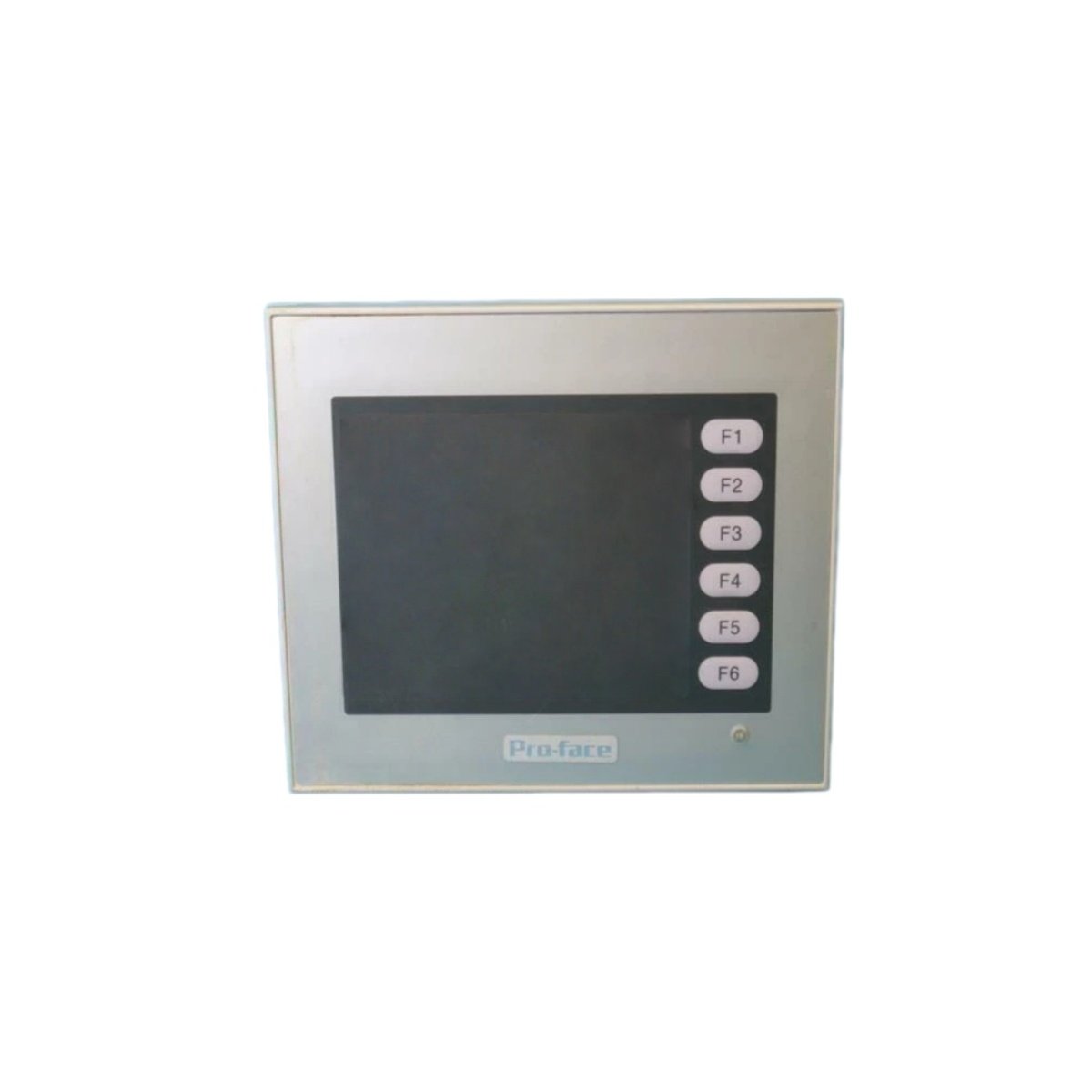

The Xycom ST401AG4124V integrates a bright flat panel display for clear visibility in various lighting conditions. Its compact construction allows seamless mounting into existing control panels. The table below outlines the key technical parameters.
| Parameter | Specification |
|---|---|
| Display Type | Flat Panel Color TFT |
| Screen Size | 10.4 inches diagonal |
| Resolution | 640 x 480 pixels (VGA) |
| Touch Technology | Resistive analog touchscreen |
| Dimensions (W x H x D) | 11.5 x 8.8 x 2.6 inches |
| Weight | 4.5 lbs (2.04 kg) |
| Backlight Type | CCFL with replaceable design |
| Power Input | 24 VDC nominal |
| Communication Interface | RS-232 serial port |
| Front Bezel Rating | NEMA 4/12 (IP65 equivalent) |
Mechanical Architecture and Component Design
Engineers will appreciate the streamlined internal layout of this operator interface. The Xycom ST401AG4124V contains a single main logic board that minimizes potential failure points. This design simplifies field maintenance and reduces system downtime significantly. Additionally, the resistive touch interface registers inputs accurately even with gloved hands. Operators can navigate machine controls reliably without removing protective gear.
Power Management and System Connectivity
Furthermore, this interface operates efficiently on a standard 24 VDC power supply. Its power circuitry includes built-in transient protection for industrial electrical environments. You can connect the unit directly to PLCs, PC-based controllers, or static trip relay systems. For protective relay applications, this display pairs seamlessly with modules like the RMS TSG TZ C Static Trip series. The serial interface supports straightforward integration with legacy automation equipment.
Environmental Durability and Application
The front bezel meets NEMA 4/12 standards for water and dust resistance. This protection enables installation in wash-down areas or facilities with airborne particulates. Moreover, the operating temperature range spans 0°C to 50°C, ensuring stable performance across diverse conditions. Xycom (now part of Emerson Automation) designed this series for extended service life in demanding industrial applications.
Details
| Weight | 2.85 kg |
|---|---|
| Dimensions | 41.2 × 17.8 × 6.2 mm |
