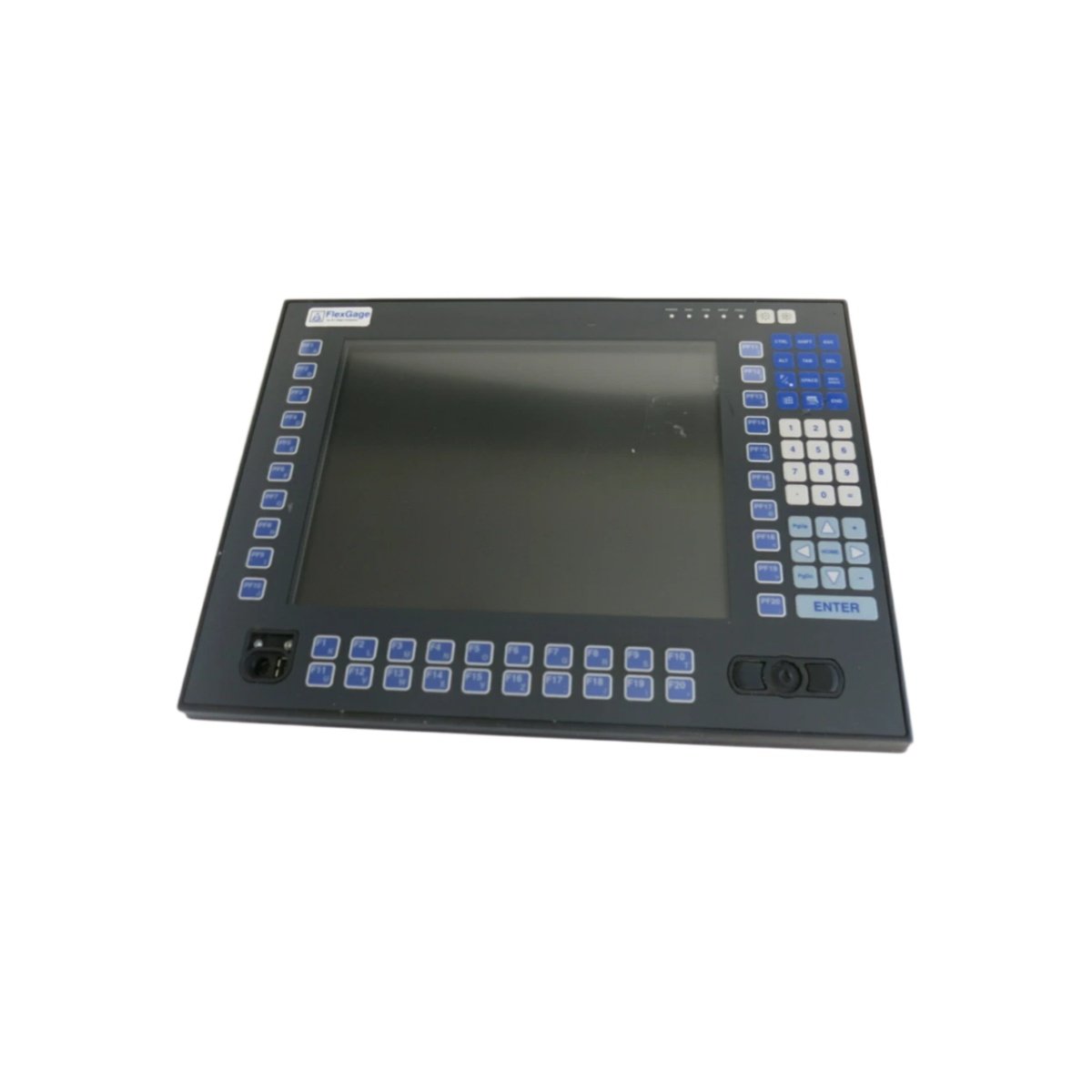

The Xycom 9712KP provides a slim flat-panel operator interface for industrial environments. This HMI features a 12.1-inch active matrix color TFT display with 800 x 600 resolution. Consequently, operators can view process data clearly from various angles. The unit includes a resistive analog touchscreen for intuitive data entry and navigation.
This flat-panel terminal connects to a remote host computer via standard cabling. Therefore, you can place the display up to 15 meters from the main processor. The Xycom 9712KP fits into panel cutouts with its shallow 65mm depth design.
Technical Specifications
Many facilities pair this HMI with protection relays like the RMS-TSG-TZ-C Static Trip for complete system visualization . The Xycom 9712KP delivers reliable operator interaction for demanding production lines.
| Parameter | Specification |
|---|---|
| Manufacturer | Xycom (now Emerson) |
| Model | 9712KP |
| Type | Flat-Panel Industrial HMI / Operator Terminal |
| Display Size | 12.1 inches diagonal |
| Display Type | Active matrix TFT color LCD |
| Resolution | 800 x 600 pixels (SVGA) |
| Touchscreen | Resistive analog |
| Dimensions (HxWxD) | 280 x 340 x 65 mm |
| Weight | Approx. 4.5 kg (9.9 lbs) |
| Front Panel Rating | NEMA 4/12 (IP65) |
| Power Input | 24 VDC ±20% |
Hardware & Interface Details
The Xycom 9712KP includes a PS/2 keyboard port for external input devices. It also provides a serial RS-232C interface for host communication. The rear panel features a DB15 VGA connector for video input from a remote computer. This design separates the display from the processing hardware for better heat management.
Furthermore, this flat-panel HMI offers brightness controls and an auto-sensing backlight. It uses a cold cathode fluorescent lamp (CCFL) for uniform screen illumination. The Xycom 9712KP stores no internal energy beyond standard power supply filtering.
Installation & Power Management
This industrial HMI draws approximately 0.8 A from a 24 VDC power source. It contains no internal batteries, eliminating routine replacement maintenance. You can mount this unit using the included panel-mounting clips and gasket. The NEMA 4 front panel withstands hose-directed water and dust ingress.
Engineers choose the Xycom 9712KP for its slim profile and rugged construction. The operating temperature ranges from 0°C to 50°C for most factory conditions. For outdoor installations, you will need additional sun shielding and thermal protection.
Details
| Weight | 2.85 kg |
|---|---|
| Dimensions | 41.2 × 17.8 × 6.2 mm |
