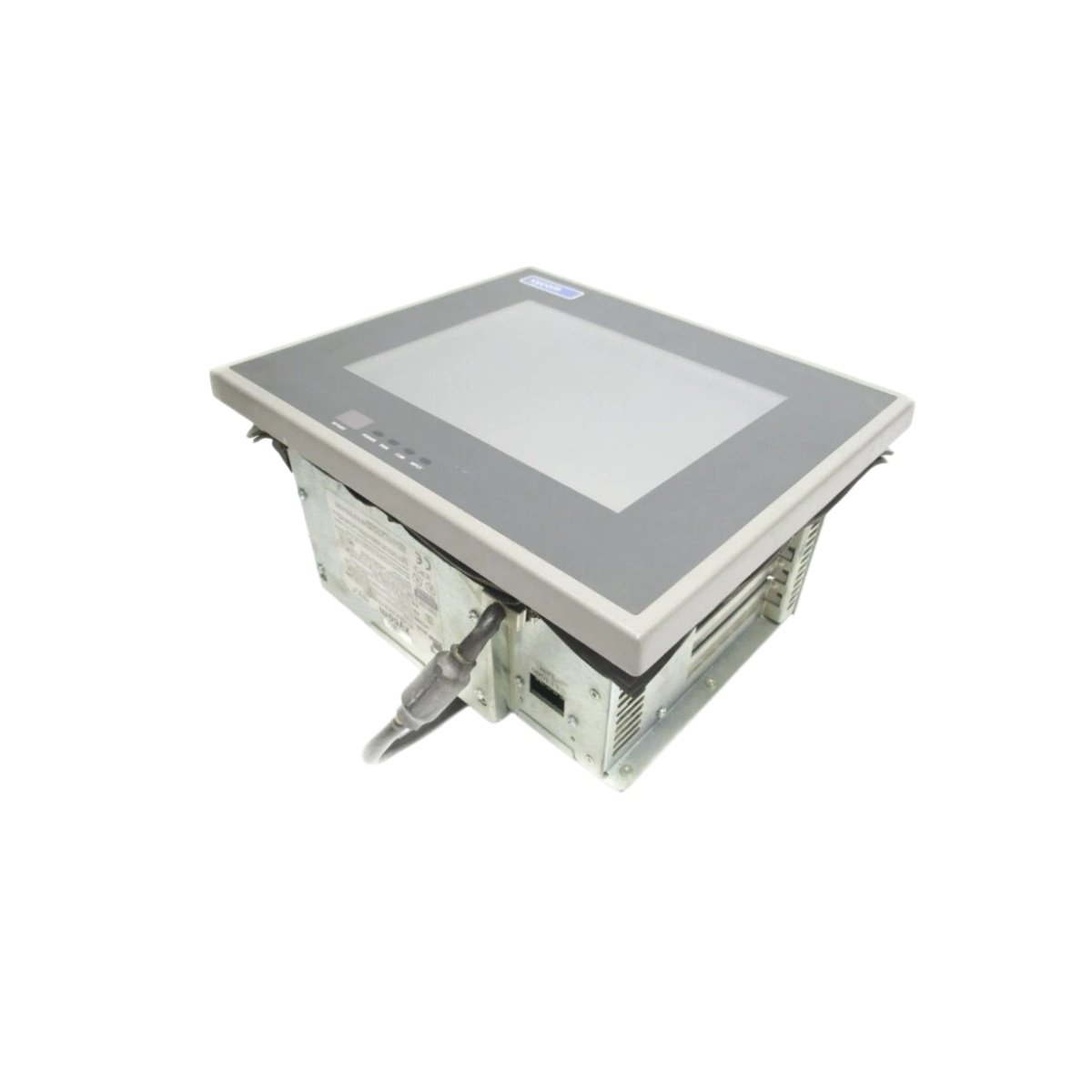

Modern factories demand reliable visualization tools. The Xycom 9462-0163040011004 provides a robust link between operators and their machinery. This unit functions as a dedicated Operator Interface Panel from the Xycom brand. It performs exceptionally well in harsh industrial environments. This panel reduces downtime through its durable construction.

Technical Specifications & Dimensions

We designed this panel for seamless system integration. It supports standard communication protocols like Modbus. The table below outlines its core technical parameters.

Durable Construction and Interface Options

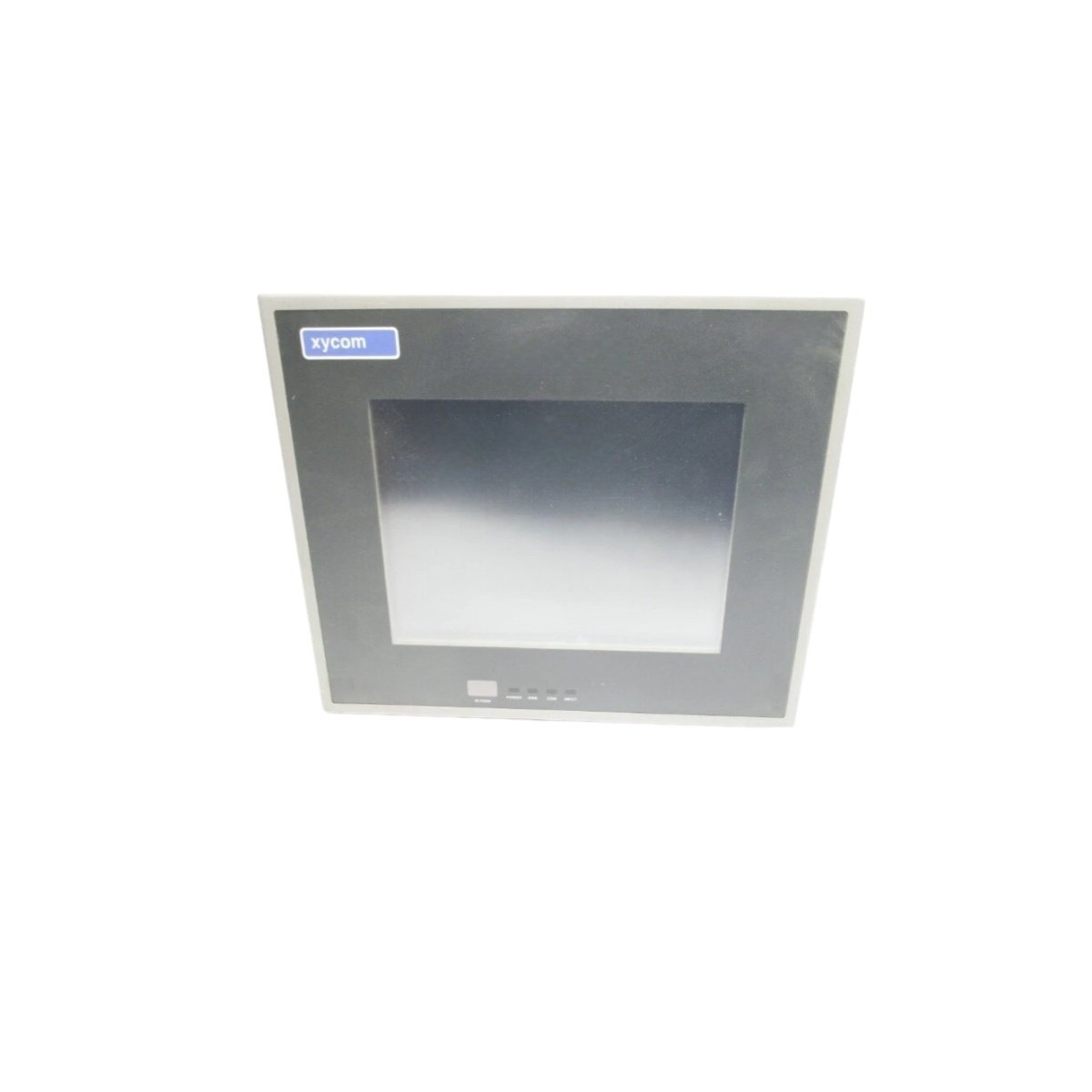

This panel features a sealed front bezel with an impact-resistant shield. Such a design protects internal components from moisture and airborne dust. Furthermore, the Xycom 9462-0163040011004 includes multiple connectivity ports for legacy setups. You will find two RS-232 serial ports on this interface. The unit also supports external PS/2 keyboard access. This feature enables flexible data entry for operators.

Energy Storage and Processing Power

Unlike standard PLCs, this Operator Interface Panel does not rely on large internal batteries. Instead, it uses solid-state electronics for program storage. Consequently, the unit maintains very low energy consumption. A dedicated PowerPC processor handles all screen rendering efficiently. The unit stores display configurations in non-volatile flash memory. Therefore, you will not lose critical settings during power outages.

Installation Dimensions and Cooling

Installing the Xycom 9462-0163040011004 is straightforward for any technician. The unit supports standard VESA mounting patterns. It also fits into most existing panel cutouts easily. Always verify the clearance for the 24V DC power cable before mounting. The unit uses passive cooling without any internal fans. This design eliminates fan-related maintenance and noise issues. The rear housing depth measures just 65 millimeters.

Practical Integration with Control Systems

This HMI works perfectly with Allen-Bradley and Siemens controllers. It provides a clear window into your machine’s operational status. Operators can use this panel to acknowledge alarms and modify setpoints. The crisp TFT screen effectively reduces eye strain during long shifts. Consequently, this model remains a popular choice for system retrofits. The Xycom 9462-0163040011004 delivers consistent performance in extreme temperatures.
