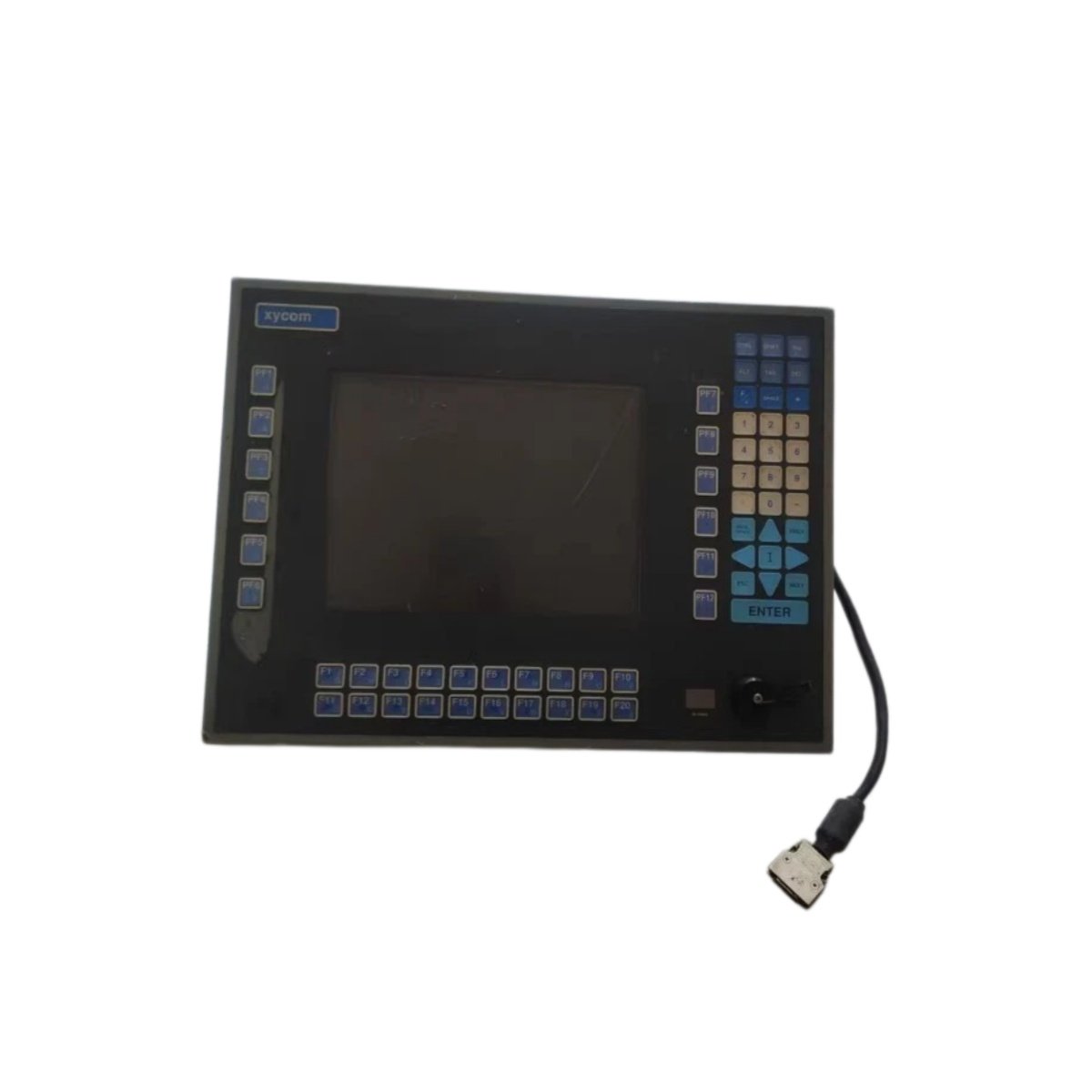

The Xycom 3410KP provides a rugged operator interface panel for industrial control applications. This unit features a 10.4-inch color TFT LCD for clear process visualization. It includes an integrated keypad with 36 tactile membrane keys. Consequently, you can enter data and navigate screens efficiently on the factory floor.
Technical Specifications and Physical Dimensions
The Xycom 3410KP measures 350 mm in width, 280 mm in height, and 75 mm in depth. This operator panel weighs approximately 5.1 kilograms. It consumes 40 W of power from a 24 V DC source. The unit offers 2 MB of battery-backed SRAM for application storage. Moreover, this industrial HMI includes 2 MB of flash memory for firmware and fonts.
| Parameter | Specification |
|---|---|
| Brand | Xycom |
| Model | 3410KP |
| Product Type | Operator Interface Panel |
| Display Size | 10.4 inches |
| Display Type | Color TFT LCD |
| Resolution | 640 x 480 (VGA) |
| Keypad | 36 tactile membrane keys |
| Dimensions (W x H x D) | 350 x 280 x 75 mm |
| Weight | 5.1 kg (11.2 lbs) |
| Power Supply | 24 V DC, 40 W |
| SRAM Memory | 2 MB (battery-backed) |
| Flash Memory | 2 MB |
| Communication Ports | 2 x RS-232, 1 x RS-422/485, 1 x Ethernet |
| Operating Temperature | 0°C to 50°C |
| Protection Rating | IP65 (front panel) |
Energy Storage and Backup Features
The Xycom 3410KP includes a replaceable lithium battery for SRAM data retention. This battery preserves application logic and tag databases for up to 60 days. The unit stores its operating system in non-volatile flash memory. Therefore, you lose no critical configurations during power interruptions. For additional industrial components, you can explore the RMS-TSG-TZ-C Static Trip unit on Alibaba. Always verify compatibility before integrating third-party hardware.
Connectivity and Mounting Details
You can mount the Xycom 3410KP into a standard panel cutout of 325 x 255 mm. The interface provides one 10/100 Ethernet port for network-based HMI applications. It also includes two RS-232 ports for direct PLC connections. Furthermore, this unit supports both NEMA 4 and NEMA 12 environmental ratings.
Details
| Weight | 2.85 kg |
|---|---|
| Dimensions | 41.2 × 17.8 × 6.2 mm |
Reviews
There are no reviews yet.
