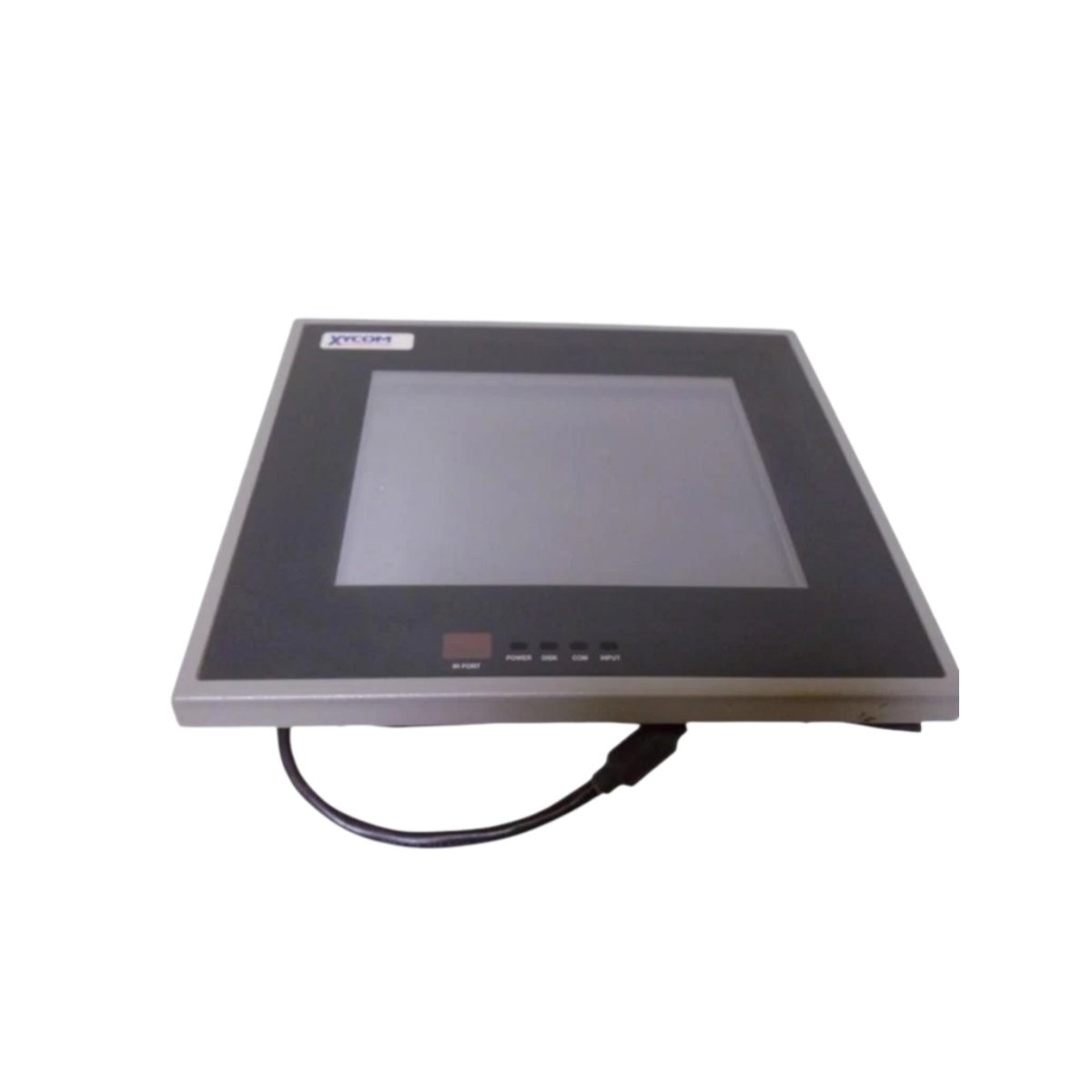

This 3410 301412001300P 513332-F95 rugged flat panel display delivers reliable visualization for demanding factory environments. Xycom engineered this unit to withstand harsh conditions while maintaining operational clarity. Operators benefit from its responsive interface and durable construction.
Core Technical Specifications
The Xycom 3410 301412001300P 513332-F95 integrates a high-brightness flat panel for excellent visibility across various lighting conditions. Its compact form factor allows straightforward installation into existing control cabinets. The table below outlines the key technical parameters.
| Parameter | Specification |
|---|---|
| Model Number | 3410 301412001300P 513332-F95 |
| Display Type | Flat Panel Color TFT |
| Screen Size | 10.4 inches diagonal |
| Resolution | 640 x 480 pixels (VGA) |
| Touch Technology | Resistive analog touchscreen |
| Dimensions (W x H x D) | 11.5 x 8.8 x 2.6 inches |
| Weight | 4.5 lbs (2.04 kg) |
| Backlight Type | CCFL with replaceable design |
| Power Input | 24 VDC nominal |
| Communication Interface | RS-232 serial port |
| Front Bezel Rating | NEMA 4/12 (IP65 equivalent) |
Mechanical Design and Component Layout
Engineers will appreciate the internal architecture of this industrial monitor. The Xycom 33410 301412001300P 513332-F95 contains a single main logic board that reduces potential failure points. This design choice simplifies maintenance procedures and shortens repair times significantly. Additionally, the resistive touch interface registers inputs accurately even when operators wear protective gloves. Users can navigate controls reliably without removing safety equipment.
Power Management and System Integration
Furthermore, this display operates efficiently on a standard 24 VDC power supply. Its power circuitry incorporates built-in transient protection for industrial electrical environments. You can connect the unit directly to PLCs, PC-based controllers, or static trip relay systems. For protective relay applications, this display pairs seamlessly with modules like the RMS TSG TZ C Static Trip series. The serial interface supports straightforward integration with legacy automation equipment.
Environmental Durability and Installation
The front bezel meets NEMA 4/12 standards for water and dust resistance. This protection enables installation in wash-down areas or facilities with airborne particulates. Moreover, the operating temperature range spans 0°C to 50°C, ensuring stable performance across diverse conditions. Xycom (now part of Emerson Automation) built this series for extended service life in demanding industrial applications.
Details
| Weight | 2.85 kg |
|---|---|
| Dimensions | 41.2 × 17.8 × 6.2 mm |
