The Xycom 2000T 97957-101 97957101 provides a rugged human-machine interface for industrial environments. This unit features a 10.4-inch STN color display with resistive touchscreen technology. Consequently, operators can monitor processes and enter commands through an intuitive interface. The system runs on MS-DOS 6.22 for reliable real-time operation.
This operator interface includes both a floppy disk drive and a PC/104 expansion slot. Therefore, you can load applications and extend functionality with standard industrial components. The Xycom 2000T 97957-101 withstands harsh factory floor conditions with its NEMA 4/12 front panel.
Technical Specifications
Many facilities integrate this HMI with controllers and protection relays like the RMS-TSG-TZ-C Static Trip for complete system visualization . The Xycom 2000T 97957-101 delivers dependable operator interaction for critical processes.
| Parameter | Specification |
|---|---|
| Manufacturer | Xycom (now Emerson) |
| Model | 2000T 97957-101 97957101 |
| Type | Operator Interface / Industrial HMI |
| Display | 10.4″ STN Color LCD |
| Resolution | 640 x 480 pixels (VGA) |
| Touchscreen | Resistive analog |
| Dimensions (HxWxD) | 289 x 373 x 111 mm |
| Weight | Approx. 7.7 kg (17 lbs) |
| Power Consumption | 1.4 A at 12 VDC typical |
| Front Panel Rating | NEMA 4/12 (IP65) |
Hardware & Interface Details

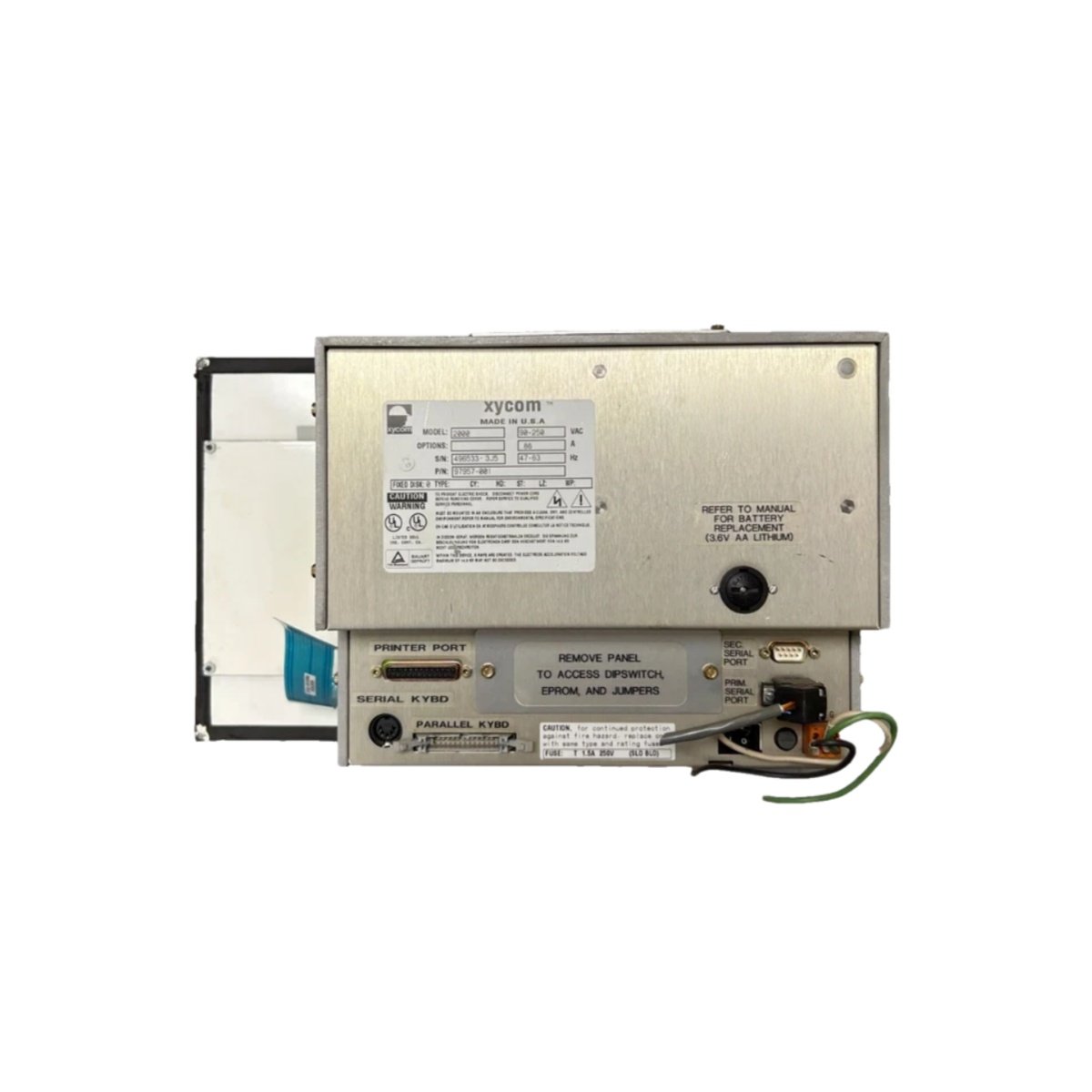

The Xycom 2000T 97957-101 97957101 includes a 3.5-inch floppy disk drive for program loading. It features a PC/104 expansion slot for additional communication cards. The rear panel provides a DB9 serial port and a DB25 parallel port. These interfaces connect to PLCs, printers, or other peripheral devices.
Furthermore, this operator interface offers a keyboard connector for external input devices. It uses a passive backplane design for improved reliability and serviceability. The Xycom 2000T 97957-101 also includes onboard battery-backed RAM for data retention.
Installation & Power Management
This operator interface consumes 1.4 A from a 12 VDC power source. It contains a lithium battery for CMOS and real-time clock backup. You should replace this battery every five years for optimal performance. The unit stores minimal capacitive energy, making power cycling safe for repairs.
Engineers mount this HMI using standard panel cutout dimensions of 327 x 284 mm. The operating temperature ranges from 0°C to 50°C for most industrial settings. For washdown areas, the NEMA 4 front panel provides complete moisture protection.
Details
| Weight | 2.85 kg |
|---|---|
| Dimensions | 41.2 × 17.8 × 6.2 mm |
