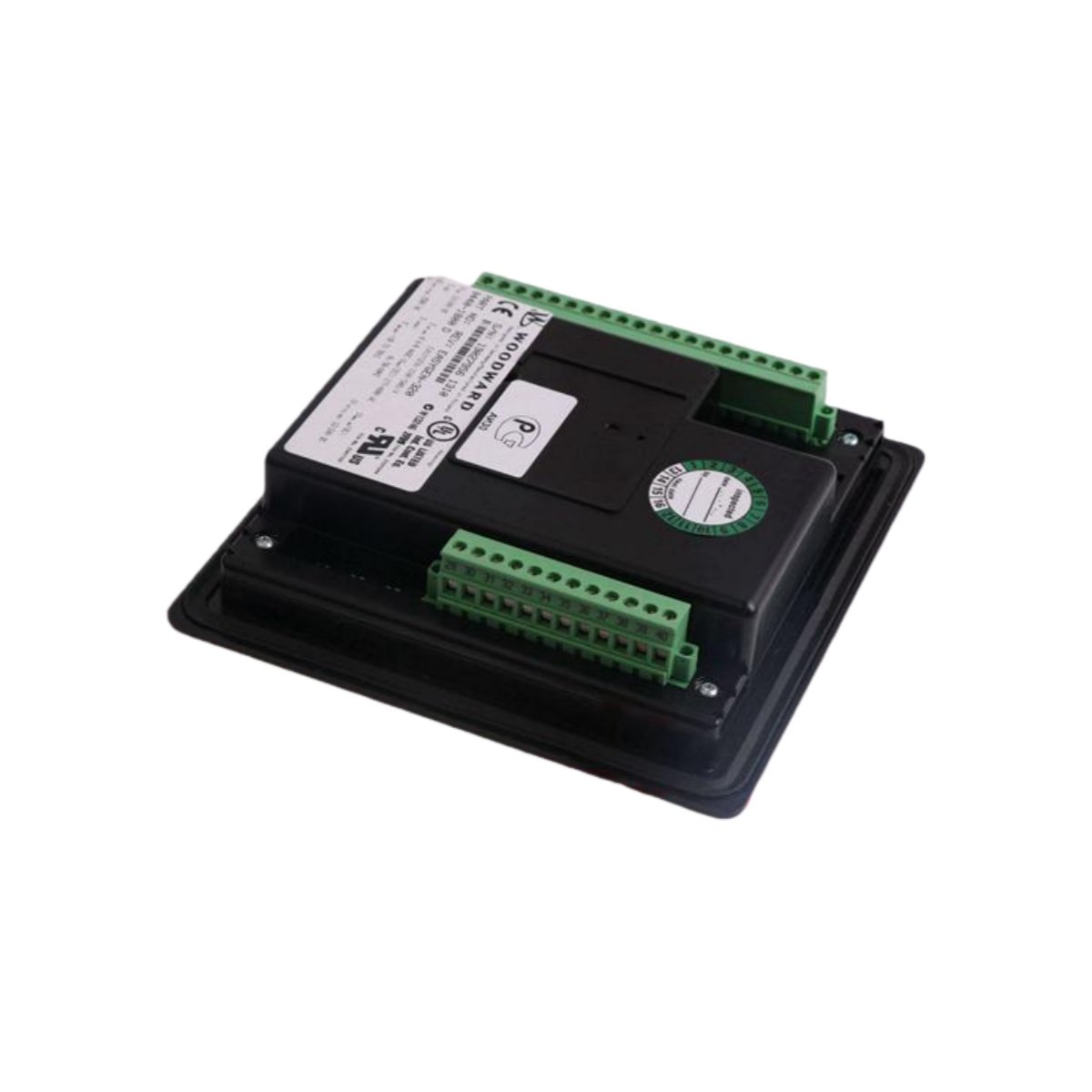

The Woodward SST-PFB-PLC5 enables seamless ProfiBus DP connectivity for Allen-Bradley PLC-5 processors. This co-processor module operates in a master/scanner mode on the ProfiBus DP network. Consequently, it allows the PLC-5 to directly command and monitor remote slave devices. The module installs directly within a 1771 I/O chassis adjacent to the main processor.
Robust Physical and Electrical Design
This SST module features a durable metal housing for harsh industrial environments. It draws 1.5 Amps at 5 Volts DC from the chassis backplane for operation. Furthermore, the unit provides clear status indication through its OK, SYS, and COM LED indicators. This robust design ensures reliable communication in demanding automation applications.
Comprehensive Communication Interfaces
The SST-PFB-PLC5 integrates four distinct communication interfaces for maximum flexibility. A 9-pin female D-shell connector serves as the ProfiBus DP network port. Additionally, a 9-pin male D-shell RS-232 port allows for direct PC configuration and monitoring. The 58-pin processor interface connects directly to the PLC-5’s parallel port.
Detailed Technical Specifications
Below are the complete technical parameters for the Woodward SST-PFB-PLC5 co-processor module.
| Parameter | Specification |
|---|---|
| Manufacturer | Woodward (SST) |
| Product Model | SST-PFB-PLC5 |
| Product Line | SST Communication Cards |
| Compatible Controller | Allen-Bradley PLC-5 |
| Module Function | ProfiBus DP Master/Scanner Co-Processor |
| Installation Location | 1771 I/O Chassis (next to processor) |
| Network Protocol | ProfiBus DP |
| Supported Baud Rates | 9.6k to 12 Mbps (9 standard rates) |
| Power Requirements | 1.5A @ 5VDC (from backplane) |
| DP Interface | 9-pin Female D-Shell Connector |
| RS-232 Interface | 9-pin Male D-Shell (for Configuration) |
| Processor Interface | 58-pin Connector (to PLC-5 Parallel Port) |
| Status Indicators | OK, SYS, COM LEDs |
| Included Accessory | Null Modem Cable |
| Housing Material | Metal |
| Weight | 20.00 lbs (9.07 kg) |
Configuration and Network Integration
Users configure the network easily via the RS-232 port using a PC. The included null modem cable facilitates this direct connection for setup. Moreover, the module supports a wide range of standard ProfiBus DP communication rates. This flexibility allows integration into both new and existing network infrastructures.
Application in Automation Systems
This module connects the PLC-5 to devices like sensors, actuators, and Flex I/O adapters. It also enables communication with SLC 500 adapters and PanelView operator terminals. Therefore, the SST-PFB-PLC5 bridges the gap between the PLC-5 platform and the ProfiBus world. It is an essential solution for expanding system connectivity without replacing the core controller.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 108 × 70 × 108 mm |
