Core VMEbus Integration and Protocol Support

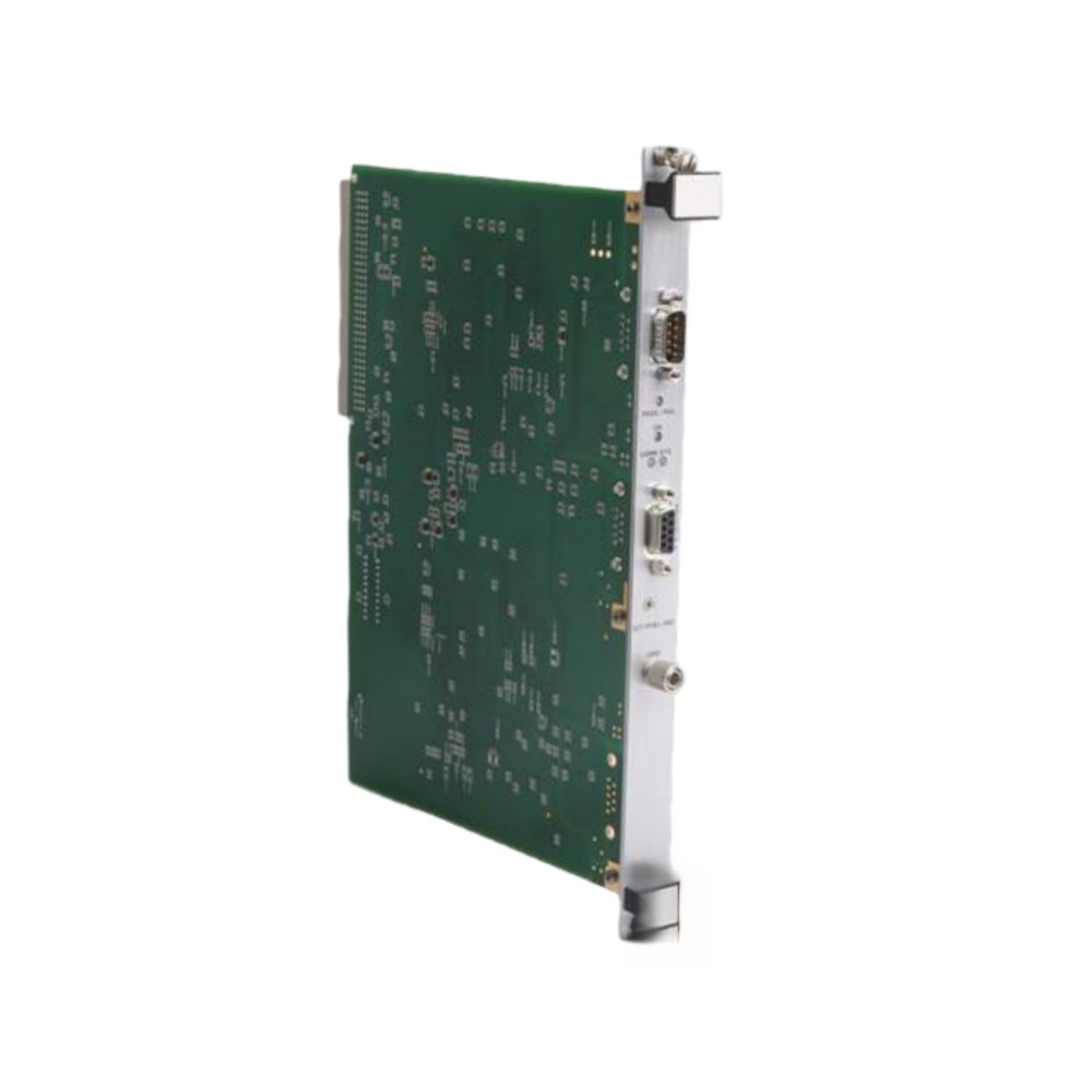

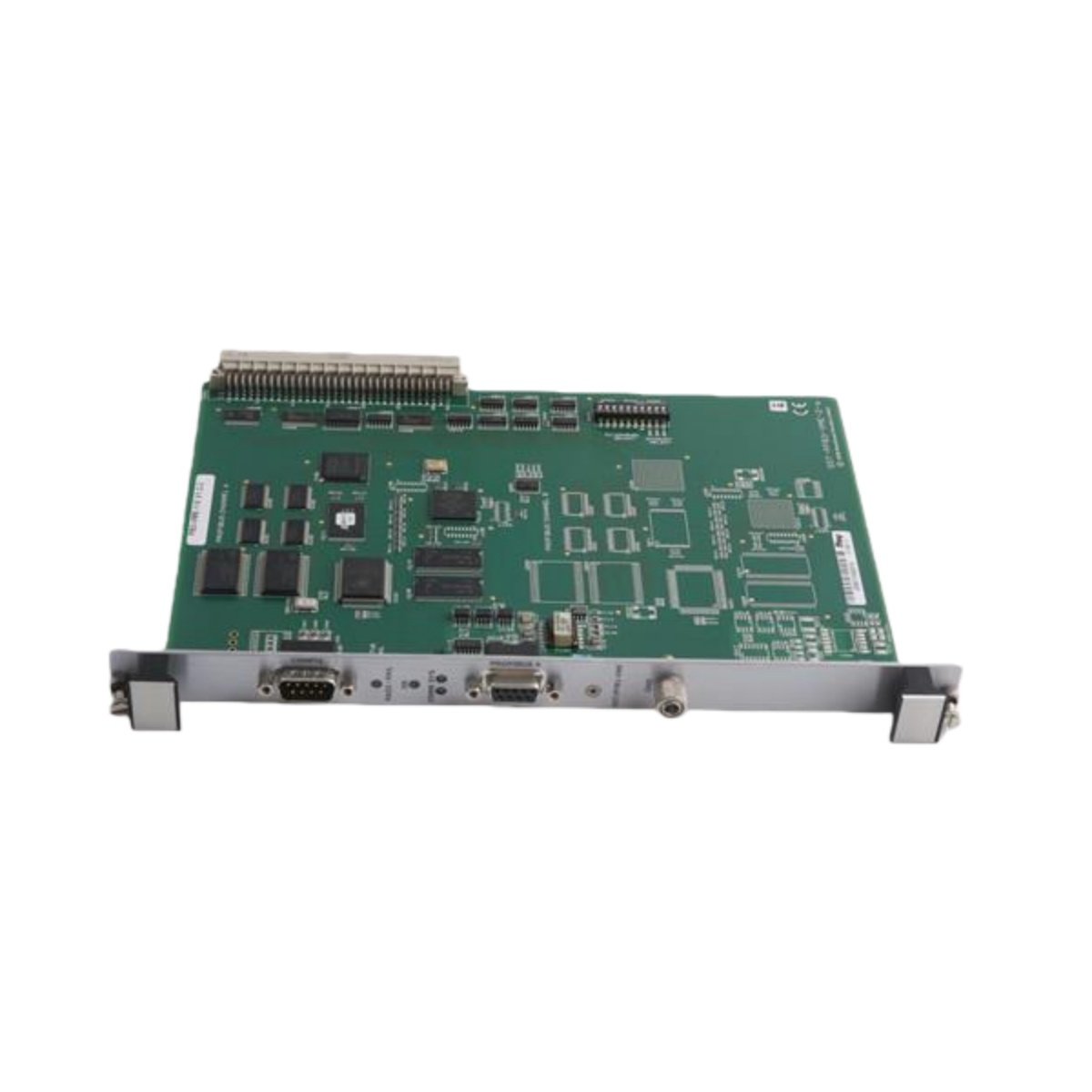

The Woodward SST-PB3-VME-1 is a single-channel PROFIBUS DP communication module for VMEbus systems. This module integrates seamlessly into industrial computers and controllers using the VMEbus architecture. It supports both PROFIBUS DP-V0 and DP-V1 specifications for broad network compatibility. Consequently, it enables reliable cyclic and acyclic data exchange between the host system and field devices.
Dual-Mode Operation and High-Speed Performance
This module operates in either Master or Slave mode, providing flexible network configuration options. It supports high-speed baud rates up to 12 Mbps for responsive and efficient data transfer. The SST-PB3-VME-1 is compatible with VMEbus Revisions 2.0 and 3.0 for versatile system integration. Furthermore, its RoHS-compliant design meets modern environmental and safety standards.
Detailed Technical Specifications
Engineered for industrial reliability, the module operates within a wide temperature and humidity range. It withstands significant levels of shock and vibration common in plant environments. The following table details its comprehensive bus, communication, and environmental parameters.
| Parameter | Specification |
|---|---|
| Manufacturer | Woodward |
| Product Model | SST-PB3-VME-1 |
| Module Type | PROFIBUS DP Communication Module |
| Host Bus | VMEbus (Rev. 2.0 & 3.0) |
| Form Factor | VME6U |
| PROFIBUS Channels | 1 |
| Supported Modes | Master & Slave |
| Supported Protocols | PROFIBUS DP-V0, DP-V1 |
| Baud Rate Range | 9.6 kbps to 12 Mbps |
| Data Transfer Modes | Cyclic & Acyclic |
| Power Consumption | 5 W |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Vibration Resistance | 5 g rms (10 Hz to 500 Hz) |
| Shock Resistance | 32 g, 11 ms half-sine |
| EMC Standards | EN 61000-6-1, EN 61000-6-2 |
| Environmental Compliance | RoHS |
Application in Industrial Control Systems
Use this module to connect VMEbus-based controllers to distributed PROFIBUS DP I/O and drives. It is ideal for industrial automation, process control systems, and sophisticated test stands. The Woodward SST-PB3-VME-1 provides a robust communication link for demanding applications. Therefore, it is a key component for building high-performance control architectures in manufacturing and energy sectors.
Details
| Weight | 0.52 kg |
|---|---|
| Dimensions | 130 × 95 × 40 mm |
