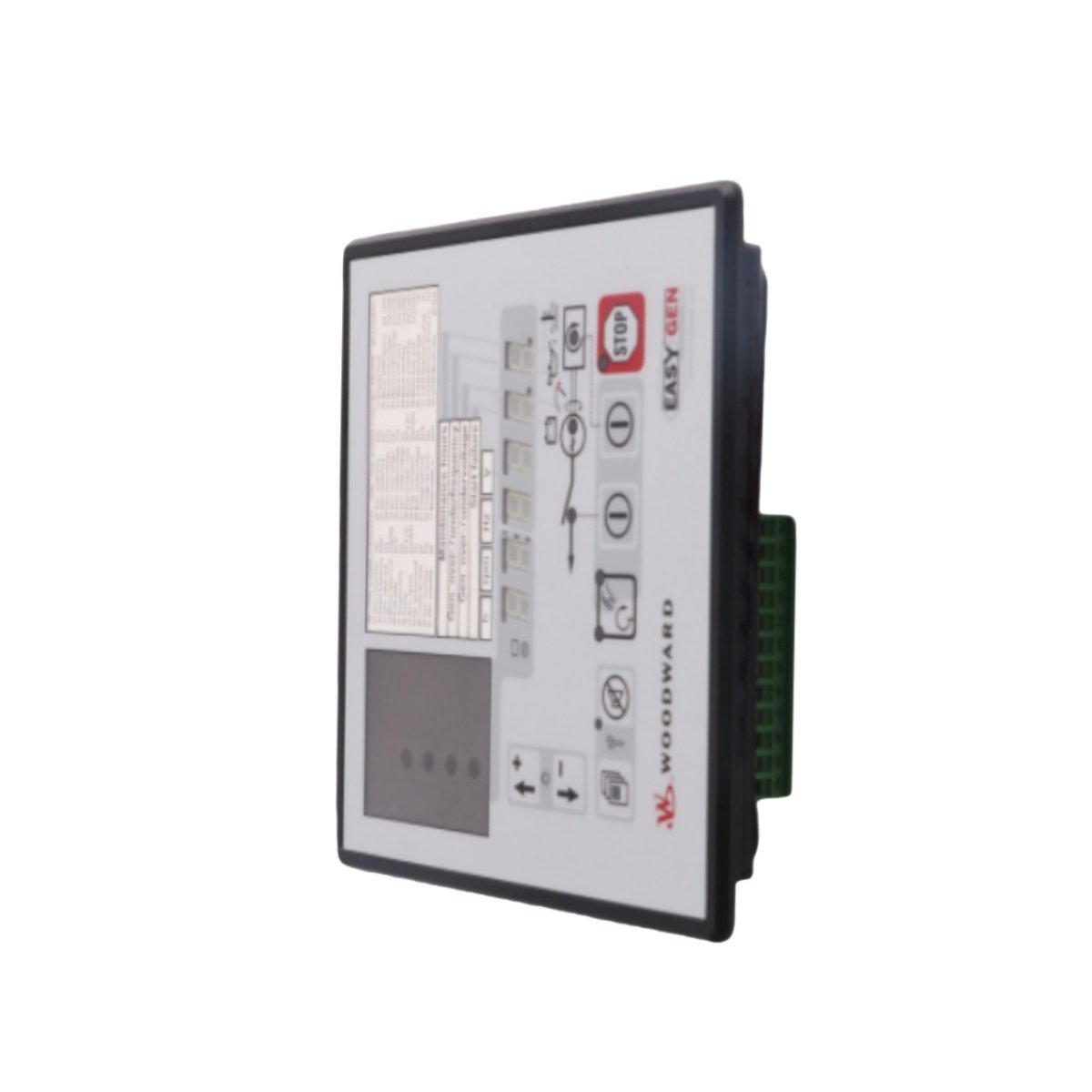

The Woodward easYgen-320 is a dedicated control unit for single generator sets. This robust controller manages automatic start/stop sequences and provides critical protection functions. It delivers comprehensive metering and monitoring through an intuitive front-panel interface. As a core member of the popular easYgen-300 series, it offers reliable power management for isolated operations.
Technical Specifications and Key Parameters
This controller features true RMS voltage sensing for accurate electrical measurements. It integrates critical engine protection against faults like overspeed and overcrank. The easYgen-320 supports communication with modern engines via the J1939 CAN bus protocol. Furthermore, its design includes control outputs for managing a generator circuit breaker (GCB).
The following table details the essential specifications for the Woodward easYgen-320:
| Parameter | Specification |
|---|---|
| Manufacturer / Brand | Woodward |
| Model / Series | easYgen-320 (easYgen-300 Series) |
| Product Type | Genset (Generator Set) Controller |
| Primary Operation Mode | Single-Unit, Isolated Operation |
| Core Control Functions | Automatic Start/Stop, Crank Sequencing, Load Control |
| Key Protections | Over/Under Voltage, Over/Under Frequency, Overspeed, Overcrank |
| Metering Display | Front-Panel 7-Segment LED Display |
| Monitored Parameters | Voltage, Current, Frequency, Engine Speed, Running Hours |
| Primary Comm. Interface | CAN bus (SAE J1939 for engine ECU) |
| Control Output | Generator Circuit Breaker (GCB) Control |
| Human-Machine Interface | Integrated front panel with pushbuttons & status LEDs |
| Typical Power Supply | 24 VDC (common for industrial genset applications) |
| Operating Temp. Range | -30°C to +70°C (standard industrial rating) |
| Enclosure Rating | Typically IP20 for panel-mounted protection |
Application Features and System Integration
The Woodward easYgen-320 is ideal for emergency standby power in commercial facilities. It also serves reliably in prime power and distributed generation applications. The controller simplifies on-site operation with its clear display and manual pushbuttons. Consequently, technicians can easily configure settings and view real-time system status without external tools.
Its integrated protection logic safeguards both the engine and the generator from damaging conditions. The J1939 CAN connectivity enables seamless data exchange with modern electronic engine controllers. This makes the easYgen-320 a comprehensive, all-in-one solution for managing and protecting a standalone power generation asset.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 108 × 70 × 108 mm |
