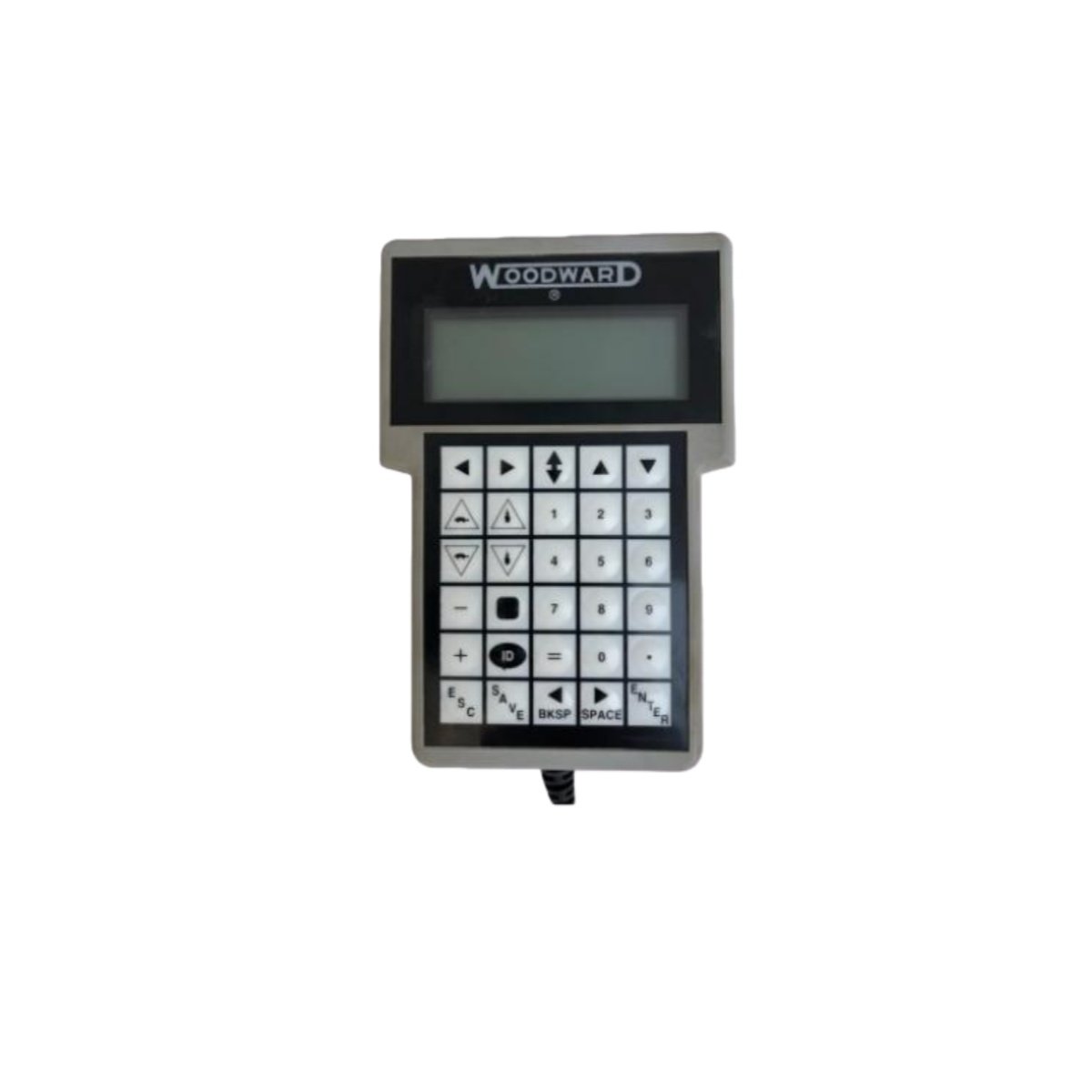

The Woodward 9907-205 serves as a specialized handheld programmer for configuring DSLC controls. This portable device offers convenient on-site setup and diagnostics for your Woodward systems. Operators can easily connect to compatible controllers for real-time parameter adjustments. Consequently, this tool streamlines commissioning and maintenance tasks in the field.
Robust Power Design for Field Use
This handheld programmer operates on a wide 7-28 VDC power input range. This flexible voltage specification allows use with various industrial power sources. Furthermore, the unit’s design ensures reliable performance in typical plant and mobile equipment environments. The low-voltage DC operation also enhances operational safety for personnel.
Core Functionality and Application Scope
The 9907-205 provides direct access to the DSLC control unit’s configuration menus. Users can monitor real-time data, modify setpoints, and troubleshoot system parameters. This capability is essential for fine-tuning engine or turbine control systems efficiently. Moreover, the handheld format enables programming without needing a full PC workstation.
Detailed Technical Specifications
Below are the complete technical parameters for the Woodward 9907-205 handheld programmer.
| Parameter | Specification |
|---|---|
| Manufacturer | Woodward |
| Product Model | 9907-205 |
| Device Type | Handheld Programmer / Monitor |
| Compatible Controller | DSLC (Digital Speed Load Control) |
| Primary Function | Configuration, Monitoring, Diagnostics |
| Operating Voltage | 7 – 28 V DC |
| Power Input Type | DC Input via Connector |
| Display Type | LCD Screen (Character-based) |
| Interface | Dedicated Serial Communication Cable |
| Keypad | Integrated Tactile Keypad for Navigation |
| Typical Use Case | Field Service, Commissioning, Troubleshooting |
| Physical Design | Handheld, Durable Enclosure |
| Dimensions (Approx.) | Refer to official Woodward datasheet for exact HxWxD |
| Weight (Approx.) | Lightweight, handheld design (Consult datasheet) |
Seamless Integration with Woodward Systems

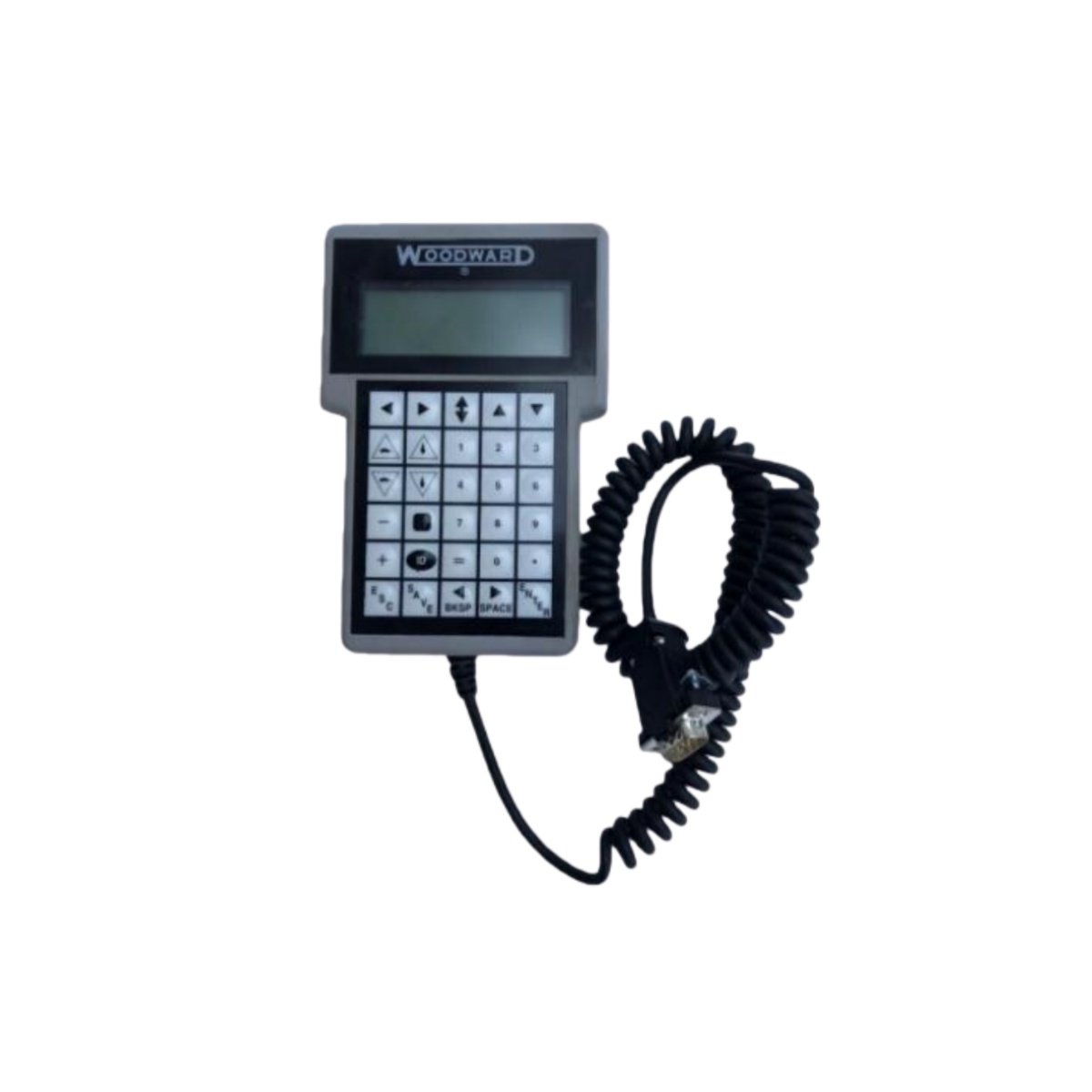

This programmer connects directly to the DSLC control unit via a dedicated cable. The interface provides clear menu-driven navigation through the integrated LCD screen. Technicians can quickly view critical parameters like speed, load, and actuator position. Therefore, the 9907-205 becomes an indispensable tool for system optimization.
Key Benefits for Engineers and Technicians
Owning the Woodward 9907-205 reduces downtime during commissioning and service. Its portable nature allows for immediate adjustments right at the equipment. The straightforward interface requires minimal training for experienced control personnel. Ultimately, this handheld unit ensures your Woodward controls operate at peak performance.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 108 × 70 × 108 mm |
