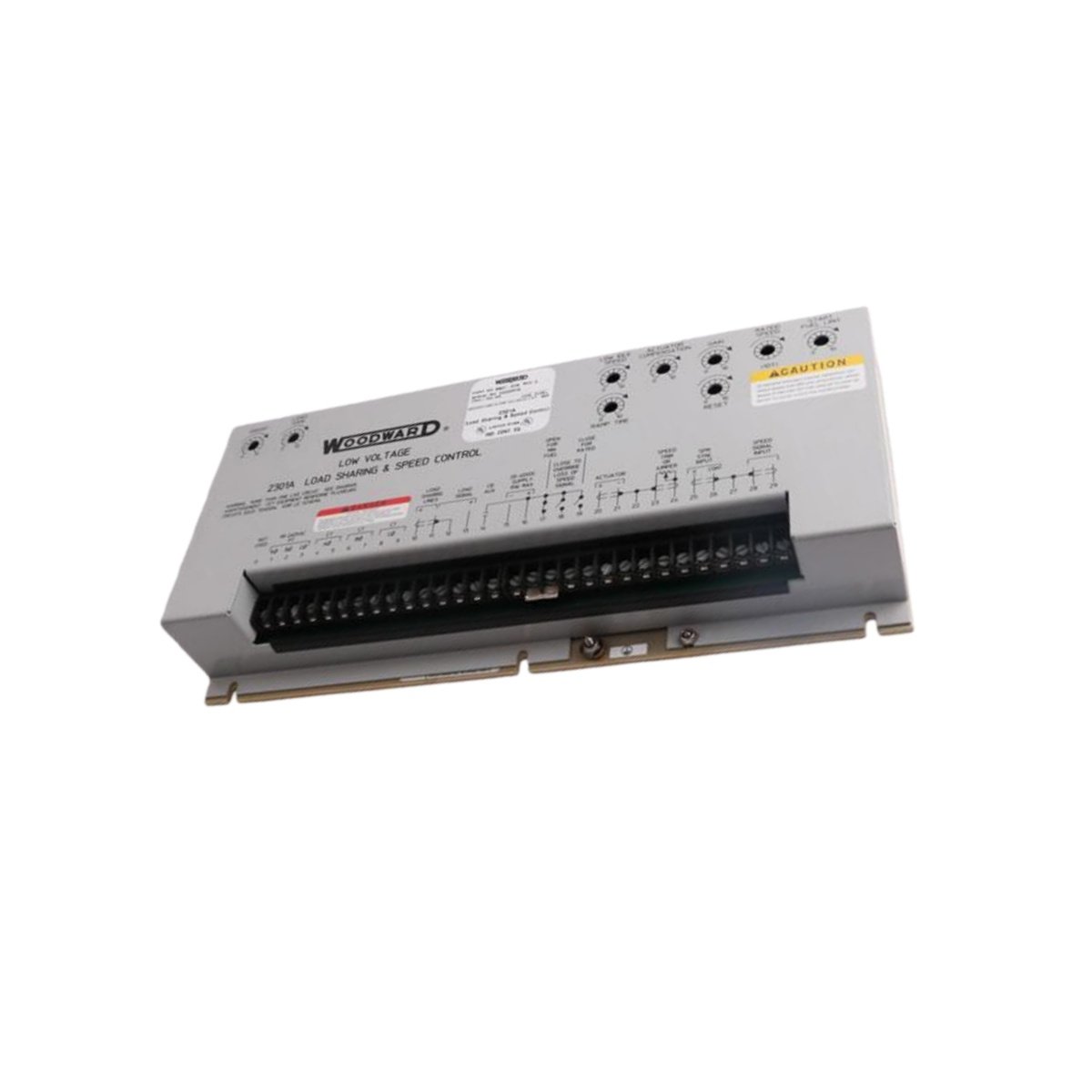

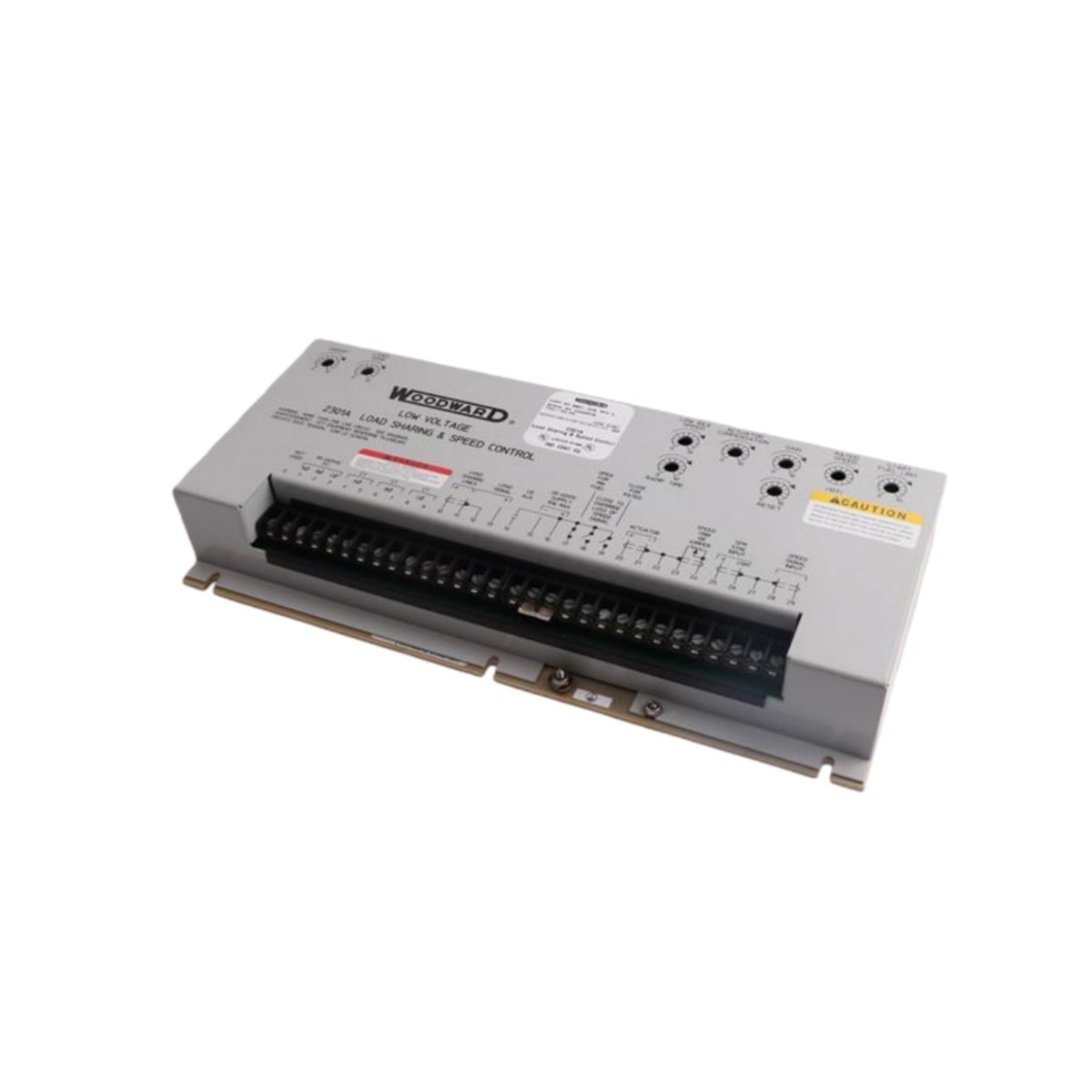

The Woodward 9907-018 is a precise speed and load sharing controller from the Woodward 2301A series. This unit regulates the operation of diesel engines, gasoline engines, gas turbines, and steam turbines. Its robust design ensures reliable performance in demanding industrial environments.
This controller optimizes load distribution across multiple generator sets or prime movers. Furthermore, it maintains precise speed regulation for stable and efficient system operation. Consequently, it is a critical component for power generation, co-generation, and mechanical drive applications.
Technical Specifications and Dimensions
The Woodward 9907-018 operates within specific electrical and physical parameters. The table below details its core technical specifications.
| Parameter | Specification |
|---|---|
| Operating Voltage Range | 20 – 40 VDC |
| Current Signal Output | 0 – 200 mA |
| Power Consumption | < 15 W |
| Storage Temperature Range | -40°C to +85°C |
| Dimensions (W x H x D) | 15.25 in x 7.125 in x 2.5 in |
| Weight | 1.758 kg |
| Key Certifications | CE-Marked, CSA Certified for Ordinary Locations |
Key Features and Compatibility
This controller features a self-contained load sensor for enhanced functionality. It is fully compatible with a range of Woodward actuators, including EG, PB, EGB, 2301, and TM models. Additionally, its front-accessible potentiometers allow for quick field adjustments and tuning.
The enclosure provides robust shielding against EMI, RFI, dust, humidity, and vibration. Therefore, the 9907-018 maintains its calibration and performance in harsh plant conditions. This makes it an ideal choice for ensuring the reliability and efficiency of multi-unit power systems.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 108 × 70 × 108 mm |
