Overview

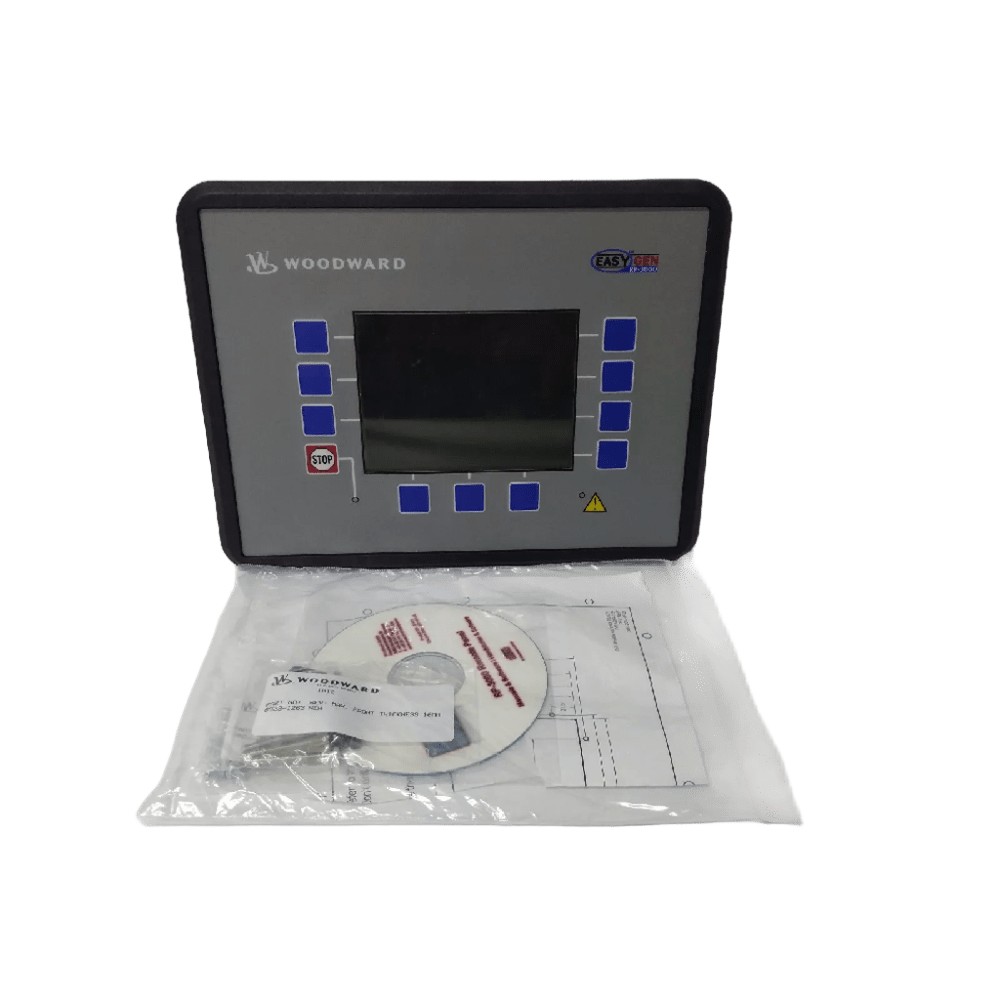

The Woodward 8446-1014 RP-3000 Remote Panel delivers secure remote control, annunciation, and configuration for easYgen-3100/3400 and easYgen-3200/3500 genset controls. It suits hospitals, marine switchboards, drilling platforms, and critical facilities such as data centers and wastewater plants. Designed for door mounting, the 8446-1014 minimizes wiring to access doors while keeping high-voltage circuits safely inside the cabinet.
Key Benefits
Operators gain complete access to all parameters of the RP-3000 through password-protected menus. Direct CAN communication ensures fast data exchange with easYgen-3000 controllers, while multilingual display support enhances usability worldwide. For enhanced safety, the panel includes one potential-free relay output that indicates the “Ready for Operation” status.
Technical Specifications
| Category | Specification |
|---|---|
| Power Supply | 12/24 Vdc (8–40 Vdc) |
| Power Consumption | Maximum 12 W |
| Operating Temperature | -20°C to +70°C / -4°F to +158°F |
| Storage Temperature | -30°C to +80°C / -22°F to +176°F |
| Humidity | 95% non-condensing |
| Relay Output | Potential-free, AgCdO contacts |
| Relay Ratings (General) | 2 Aac @ 250 Vac, 2 Adc @ 24 Vdc, 0.36 Adc @ 125 Vdc, 0.18 Adc @ 250 Vdc |
| Pilot Duty (PD) | 1 Adc @ 24 Vdc, 0.22 Adc @ 125 Vdc, 0.10 Adc @ 250 Vdc |
| Housing | Plastic, front-panel flush mounting |
| Dimensions (WxHxD) | 282 × 217 × 67 mm |
| Front Cutout (WxH) | 249 [+1.1] × 183 [+1.0] mm |
| Weight | Approx. 1,300 g |
| Connections | Screw/plug terminals, 2.5 mm² |
| Sealing | Front: IP66 (screw fastening), IP54 (clamp fastening); Back: IP10 |
| Disturbance Test | CE compliant according to EN guidelines |
| Certifications | UL/cUL, CE, LR, ABS, DNV Marine certifications |
Features
- Direct CAN communication with easYgen-3100/3400 and easYgen-3200/3500 controllers
- Remote control, annunciation, and synch-scope visualization
- Password-protected parameter configuration with full menu access
- Multilingual LCD support for 11 languages including English, German, French, and Chinese
- Color display option for easYgen-3400/3500 models
- One relay output indicates system readiness
Model Variants
| easYgen-3000 Series | RP-3000 Model | Part Number |
|---|---|---|
| easYgen-3100/3200 Package P2 | RP-3000 Model 8446-1014 | 8446-1014 |
| easYgen-3100/3200 Package P1 | RP-3000 Model 8446-1018 | 8446-1018 |
| easYgen-3100/3200 Package P2 | RP-3000 Model 8446-1019 | 8446-1019 |
| easYgen-3400/3500 Package P1 | RP-3000 Model 8446-1042 | 8446-1042 |
| easYgen-3400/3500 Marine P1 | RP-3000 Model 8446-1046 | 8446-1046 |
Application Insights
The Woodward 8446-1014 RP-3000 enables safe, flexible, and efficient genset control from a remote panel. By combining multilingual support, strong environmental protection, and marine certifications, it offers reliable performance in demanding industrial and offshore environments.
Details
| Weight | 0.3 kg |
|---|---|
| Dimensions | 217 × 282 × 67 mm |
