Product Overview

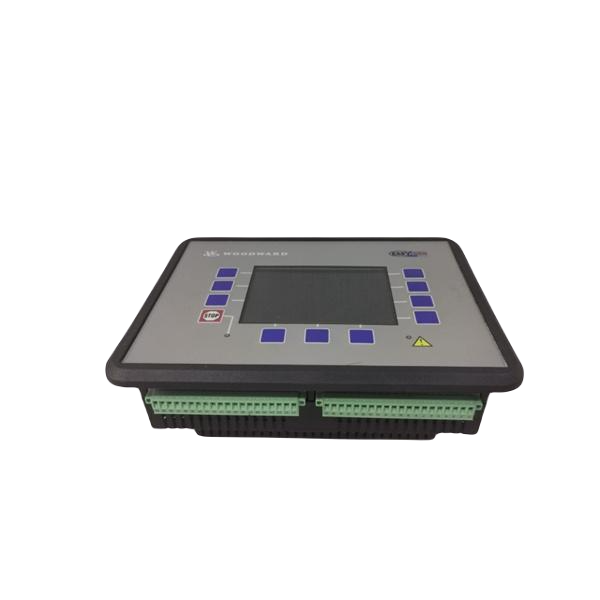

The Woodward 8440-2050 is an advanced easYgen-3000 genset controller designed for managing up to 32 connected generators using automatic sequencing. Moreover, it supports peak shaving, cogeneration, and automatic mains failure (AMF) applications. The integrated HMI features a color LCD and soft keys, providing operators with easy and intuitive system control. In addition, configuration is possible either via the onboard interface or a PC using ToolKit software.
Functional Highlights
- Integrated HMI: Enables direct control with a color LCD and intuitive soft keys.
- Flexible I/O: Supports up to 12 discrete outputs, 16 external I/Os via CANopen, 3 analog inputs, and 2 analog outputs.
- Protection Features: Monitors overspeed, underspeed, frequency mismatch, auxiliary excitation failure, and unbalanced load conditions.
- Frequency Measurement: Operates across 50/60 Hz with a 40–85 Hz measurement range.
- Automatic Sequencing: Manages up to 32 gensets for optimized power generation efficiency.
Furthermore, the controller ensures continuous system reliability under demanding industrial conditions.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Woodward, Fort Collins, CO |
| Model Number | 8440-2050 |
| Series | easYgen-3000 |
| Analog Input Resolution | 16 Bit |
| Back Panel Dimensions | 250W x 227H x 50mm D |
| Current Setting Range | 1 – 32,000 A |
| High Impedance Input Resistance | 2.0 MΩ per path |
| Voltage Setting Range | 50 – 650,000 Vac |
| Power Supply | 12/24 VDC (8 to 40 VDC) |
| Operating Temperature | -20 to 70 °C (-4 to 158 °F) |
| Storage Temperature | -30 to 80 °C (-22 to 176 °F) |
| Humidity | Max 95% (non-condensing) |
| CT Inputs | 5A |
In addition, these specifications provide reliable and precise analog and discrete control for various industrial generators.
Typical Applications
The 8440-2050 controller is widely used in industrial power generation:
- Genset Management: Controls multiple generators for reliable power delivery.
- Peak Shaving: Optimizes energy costs by adjusting generator output.
- Cogeneration Systems: Integrates with combined heat and power setups.
- Automatic Mains Failure: Provides smooth transition between grid and genset power.
For instance, it enables automated coordination of multiple generators in distributed energy systems.
Details
| Weight | 1.6 kg |
|---|
