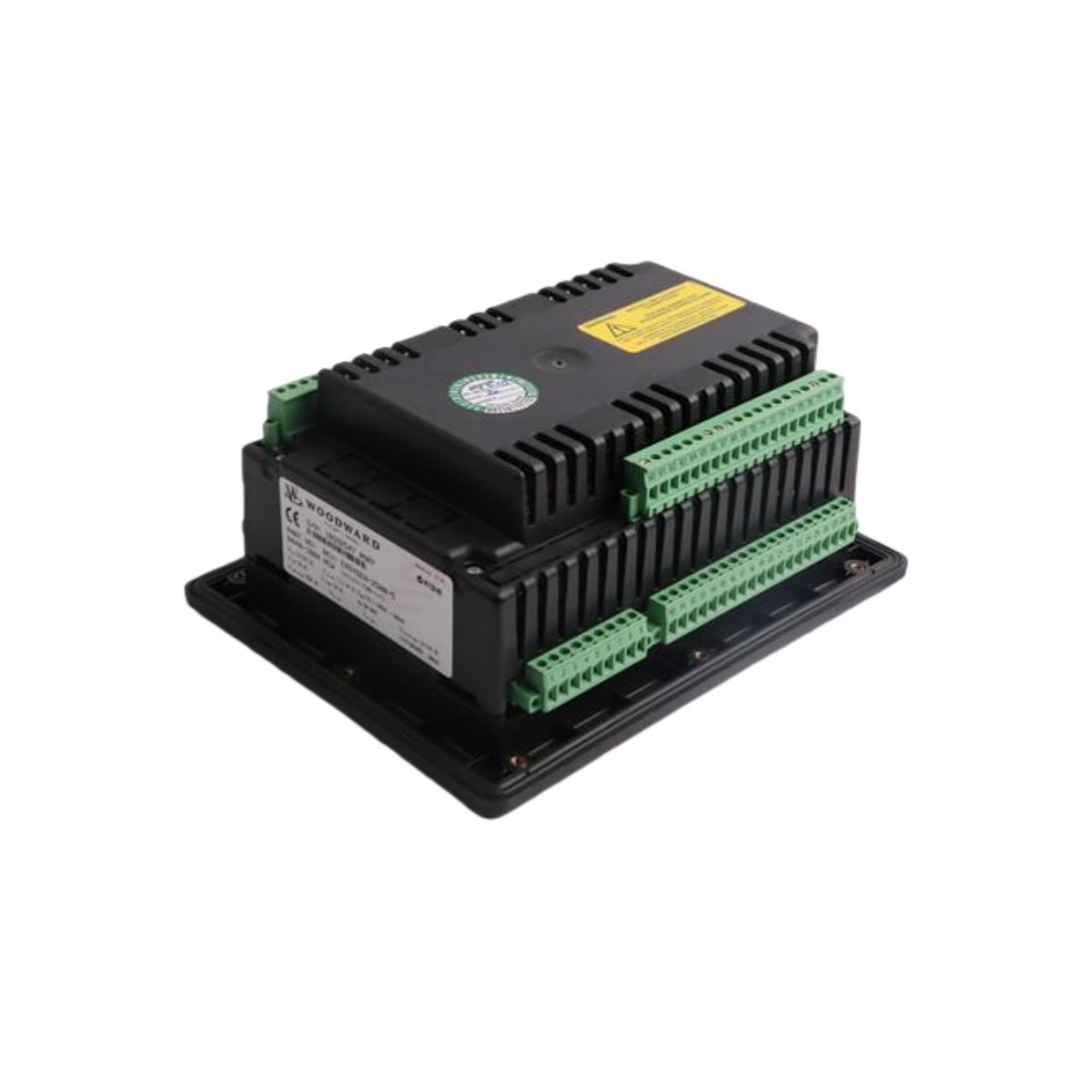

The Woodward 8440-1884 EASYGEN-2500-5, also known as the easYgen-2500-5A/P1, is a microprocessor-based controller. This powerful unit manages automatic start/stop, synchronization, and load sharing for generator sets. Consequently, it provides comprehensive protection and control for standby, prime, and distributed power generation systems.
Multi-Genset Management and Operational Flexibility
This controller efficiently coordinates up to sixteen generator sets operating in parallel. Operators can select from flexible modes including Auto, Manual, Stop, Load Test, or No Load Test. Furthermore, a clear 128 x 64 pixel graphical LCD with soft keys ensures intuitive status visualization and configuration.
Comprehensive I/O Configuration and Communication
The 8440-1884 EASYGEN-2500-5 features extensive input and output capabilities for complete system integration. It includes eight relay outputs, twelve alarm inputs, and multiple digital control inputs. Moreover, it supports industry-standard protocols like CANopen and Modbus RTU/TCP via RS-232, RS-485, and optional Ethernet ports.
Robust Power Supply and Electrical Specifications
This panel-mounted unit operates from a wide-range 9-32 VDC supply, with a nominal 12/24 VDC auxiliary input. It accurately measures generator and mains currents at 5A AC, and voltages up to 480 VAC IEC standard. Additionally, its frequency measurement maintains an accuracy of ±0.05 Hz for precise synchronization.
Detailed Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer & Model | Woodward, 8440-1884 (easYgen-2500-5A/P1) |
| Controller Type | Microprocessor-based Generator Controller |
| Mounting & Weight | Panel-mounted, 1.5 kg |
| Front Panel Protection | IP65 |
| Display | 128 x 64 Graphical LCD with Soft Keys |
| Operating Voltage | 9 – 32 VDC |
| Max Auxiliary Current | 1.2 A @ 12 VDC / 0.6 A @ 24 VDC |
| Current Inputs (Gen & Mains) | 5 A AC |
| Voltage Measurement (IEC) | 120 – 480 VAC (Phase-to-Ground: 300 VAC) |
| Relay Outputs | 8 (up to 250 VAC) |
| Alarm Inputs | 12 |
| Digital Input Voltage | 12/24 VDC |
| Communication Protocols | CANopen, Modbus RTU/TCP |
| Physical Ports | RS-232, RS-485, Optional Ethernet |
| Operating Temperature | -20°C to +70°C |
| Supported Languages | English, Chinese, German, Japanese |
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 108 × 70 × 108 mm |
