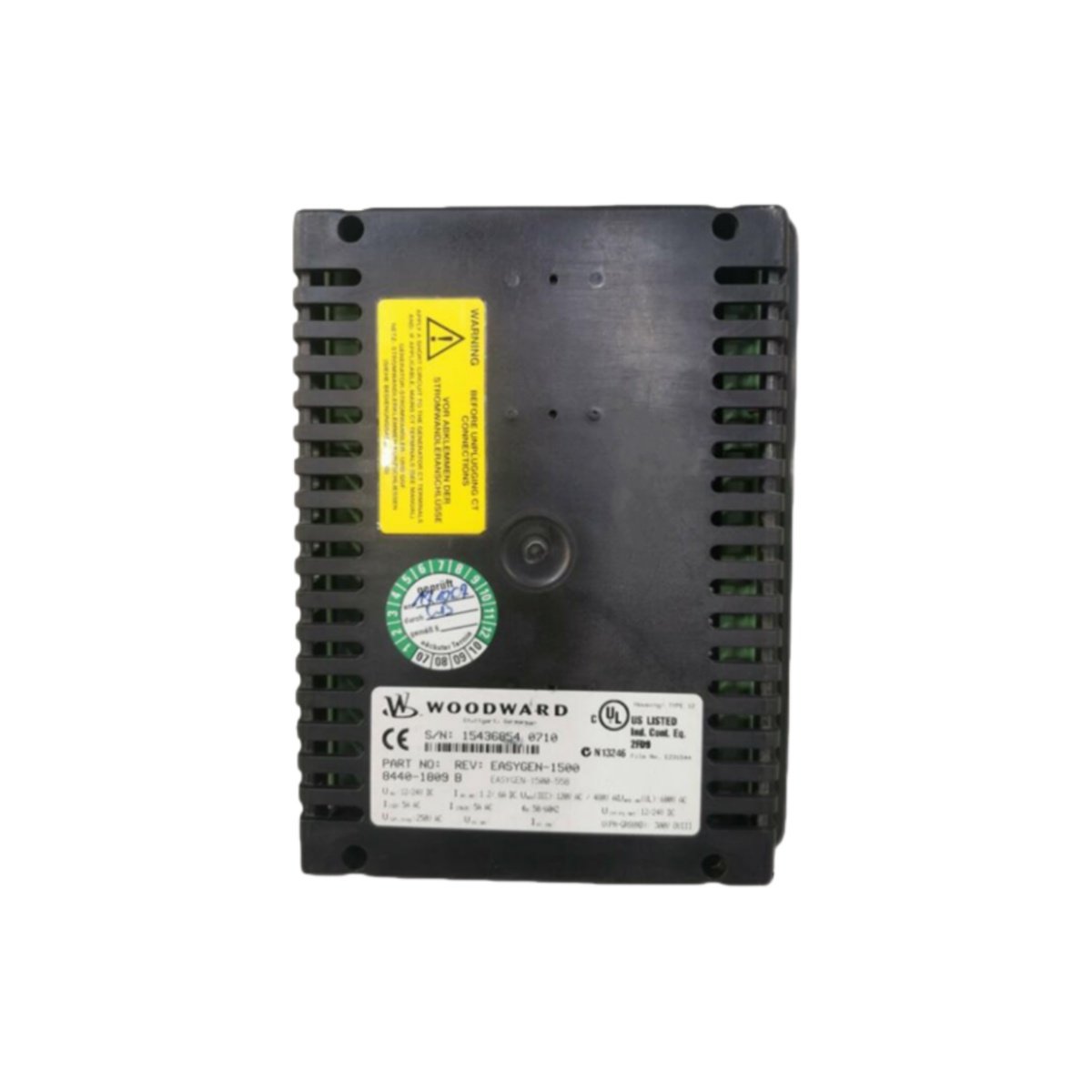

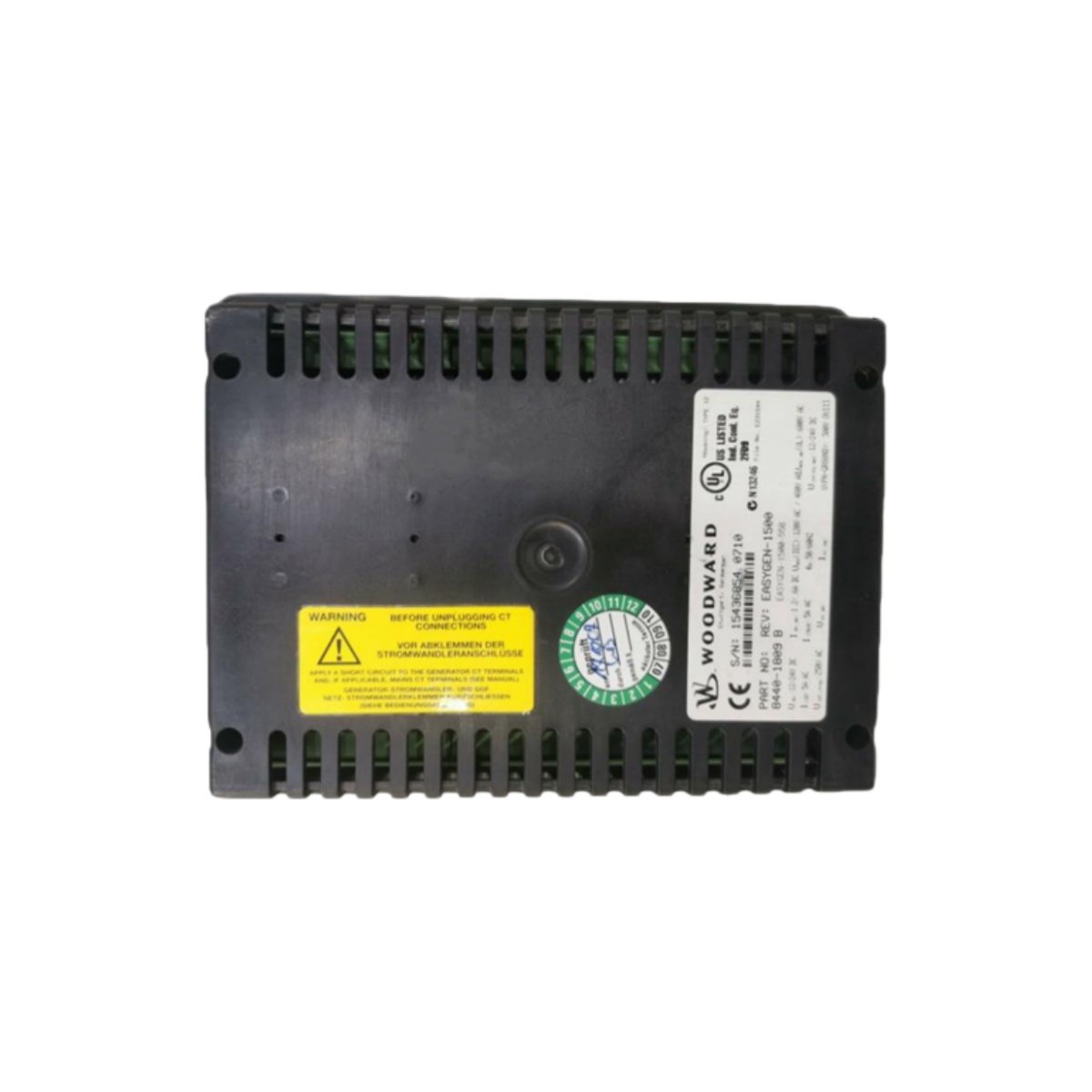

The Woodward 8440-1809 delivers comprehensive generator set management as part of the easYgen-1000 series. This robust genset controller handles start/stop logic for diesel or gas engines efficiently. Consequently, it provides reliable oversight for both mobile power units and emergency standby systems. Operators benefit from its intuitive graphical LCD interface and flexible configuration options.
Interactive Display and User Interface
This controller features a clear 128×64 pixel graphical LCD with softkey navigation. The interactive display provides real-time access to all critical system parameters. Furthermore, the interface supports multiple languages for global deployment ease. Multi-level password security also protects against unauthorized configuration changes.
Comprehensive Monitoring and Protection
The 8440-1809 includes integrated kWh and kvarh meters for precise energy tracking. It also maintains operating hour counters and configurable maintenance reminders. Additionally, the unit offers fully configurable trip levels with programmable delays and alarm classes. This protection suite ensures safe operation under various fault conditions.
Robust Communication and Data Logging
A built-in event recorder stores up to 300 time-stamped events for detailed diagnostics. The real-time clock is battery-backed for a minimum of six years of data retention. Moreover, the controller supports CAN bus connectivity for the easYlite annunciator panel. It also enables remote monitoring and control via modem connectivity and digital signals.
Detailed Technical Specifications
Below are the complete technical parameters for the Woodward 8440-1809 genset controller.
| Parameter | Specification |
|---|---|
| Manufacturer | Woodward |
| Product Model | 8440-1809 |
| Product Series | easYgen-1000 |
| Device Type | Genset Controller |
| Primary Application | Generator Set Management |
| Display | 128×64 Pixel Graphical LCD |
| Interface | Softkeys, Multi-language Support |
| Control Functions | Engine Start/Stop, Pre-glow/Purge |
| Monitoring | kWh/kvarh Meters, Hour Counters |
| Protection | Configurable Trip Levels & Alarms |
| Communication | CAN Bus, Modem Support |
| Event Recorder | 300 Events, Battery-backed RTC |
| RTC Battery Life | Minimum 6 Years |
| Security | Multi-level Password Protection |
| Remote Capability | Yes, via Digital Signals/Interface |
| Breaker Control | Flexible Configuration Supported |
Key Features for System Integration
The controller provides flexible breaker configuration for various genset paralleling schemes. Its real and reactive power sensing enables precise load management and sharing. Remote start capability allows integration into broader building or plant control systems. Therefore, the 8440-1809 serves as a central, intelligent hub for modern power generation assets.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 108 × 70 × 108 mm |
