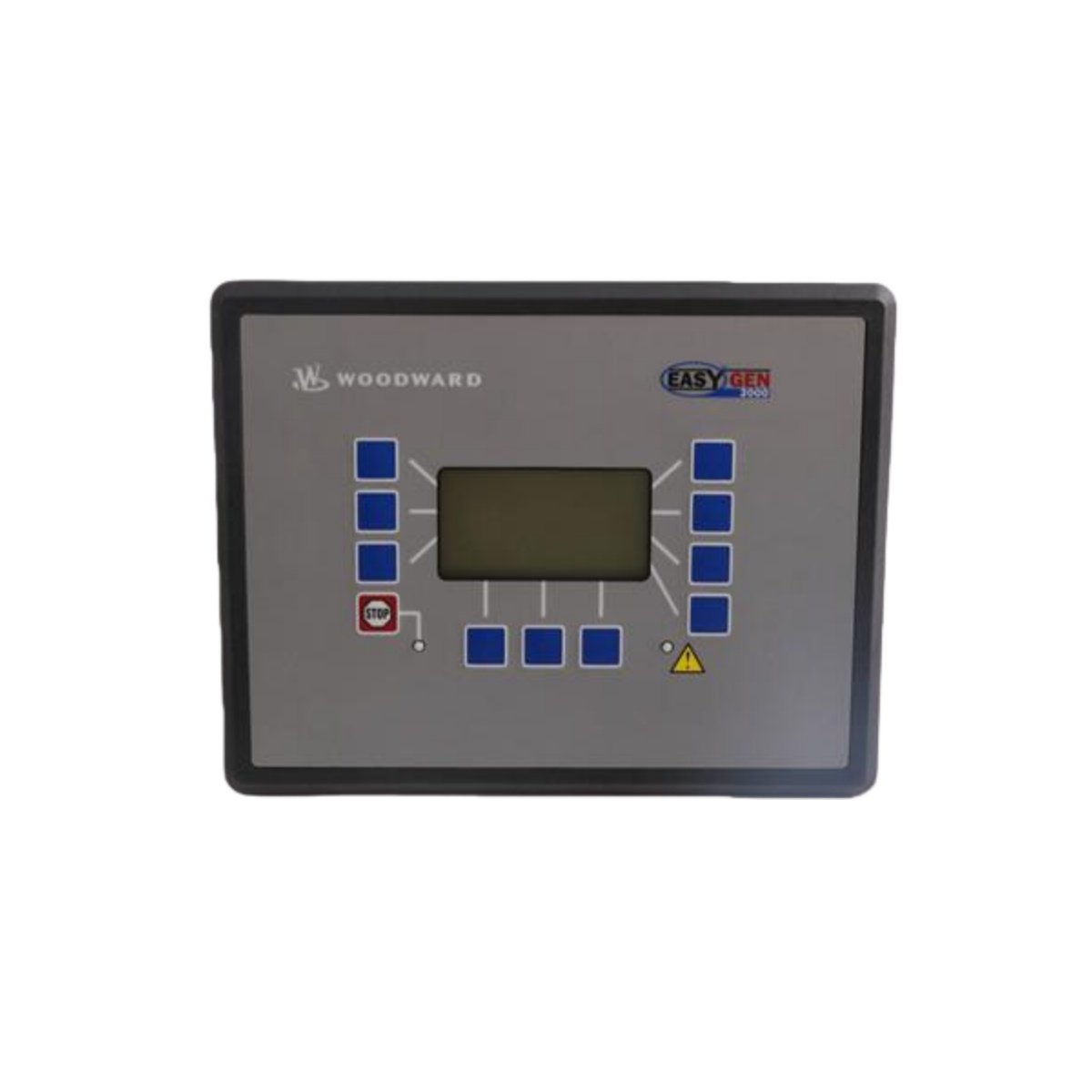

The Woodward 8406-116 is a digital control unit designed for engine-driven generator sets. This component delivers integrated management of critical functions like voltage regulation and speed control. It also provides essential protective monitoring for both voltage and frequency parameters.
Engineered for Integrated Control and System Protection
This unit consolidates several key generator control and protection tasks into one reliable device. It ensures stable power output through precise automatic voltage regulation and governing. Furthermore, the 8406-116 actively guards the generator against damaging fault conditions for enhanced system longevity. Consequently, it serves as a dedicated control center for ensuring optimal generator performance and reliability.
Detailed Technical Specifications
The following table presents the core technical and physical specifications for the Woodward 8406-116 control unit.
| Parameter | Specification |
|---|---|
| Manufacturer & Model | Woodward 8406-116 |
| Product Category | HMI / Operator Interface Terminal (OIT) |
| Primary Application | Engine-Driven Generator Control & Protection |
| Key Functions | Voltage Regulation, Speed Control, Synchronization, Protection |
| Input Power Range | 9 to 32 VDC |
| Power Consumption | 22 Watts |
| Maximum Operating Temp | 70°C |
| Weight | 6.83 lbs (approx. 3.1 kg) |
*Note: As part of the legacy EGCP-2 product line, for new system designs, please also evaluate Woodward’s modern easYgen series controllers.*
Application and Operational Context
This control unit is ideal for managing standalone or paralleled generator sets in various industrial settings. Its integrated design simplifies system architecture and reduces component count in the control panel. Therefore, the 8406-116 remains a solid solution for the monitoring and protection of generator assets.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 273.6 × 214.1 × 59.2 mm |
