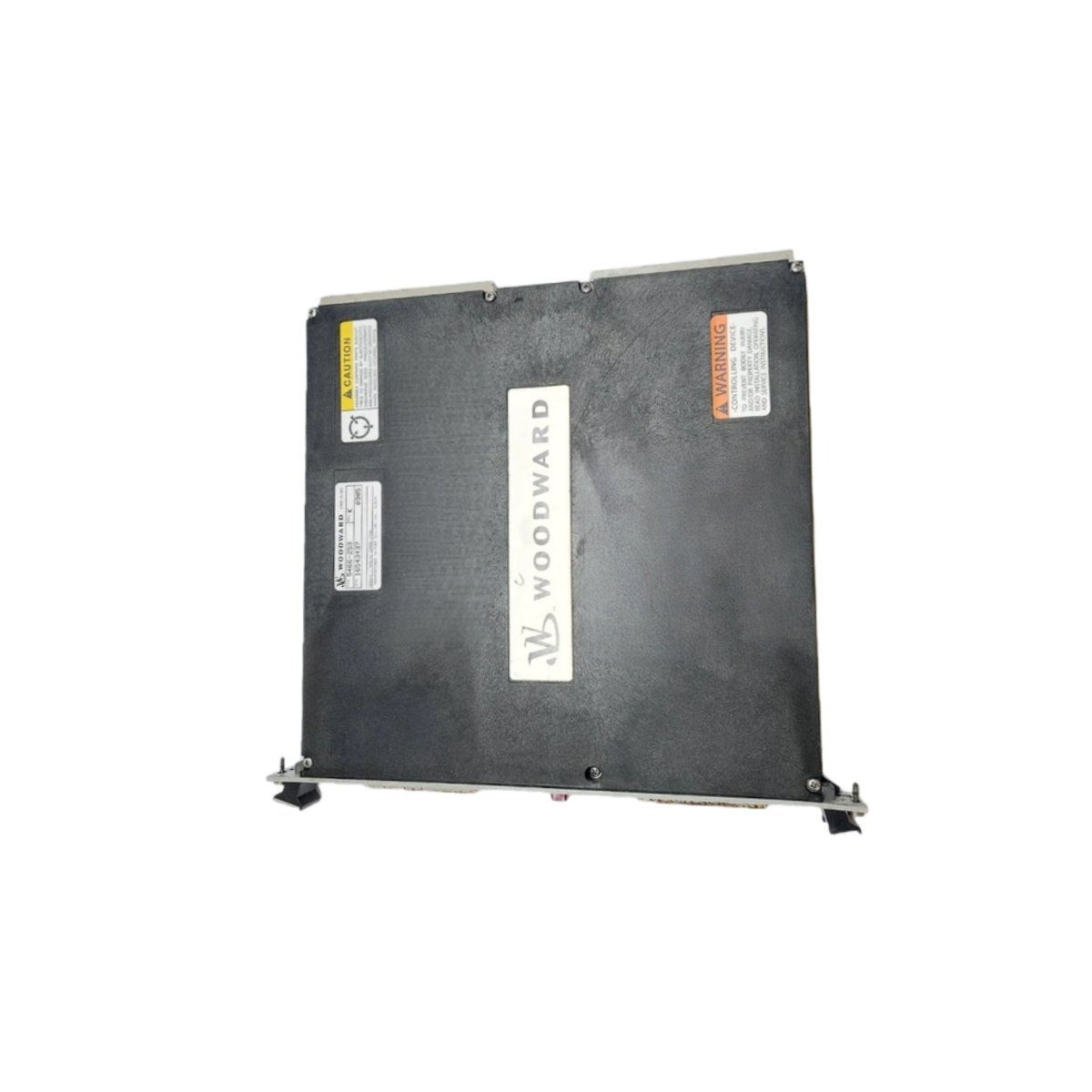

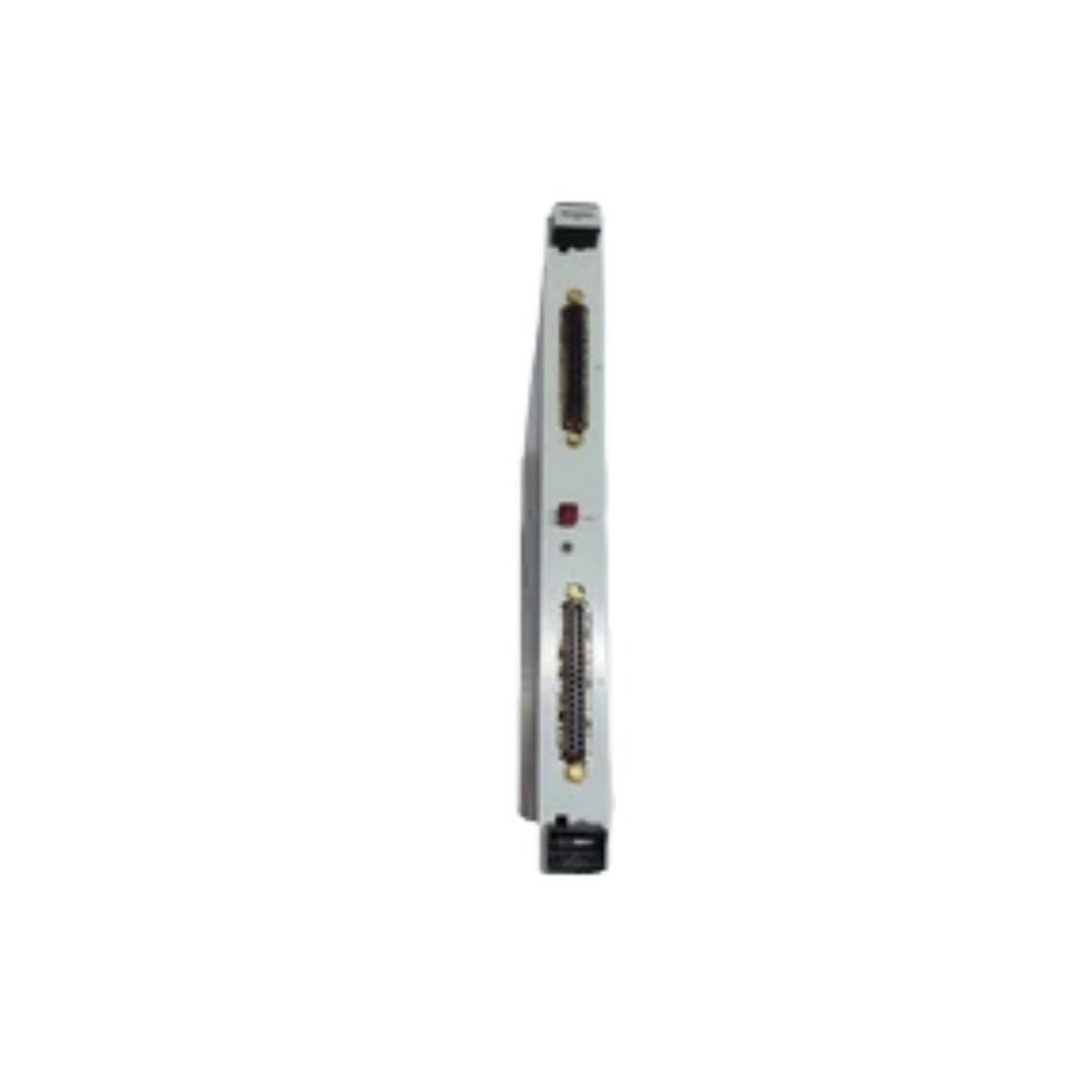

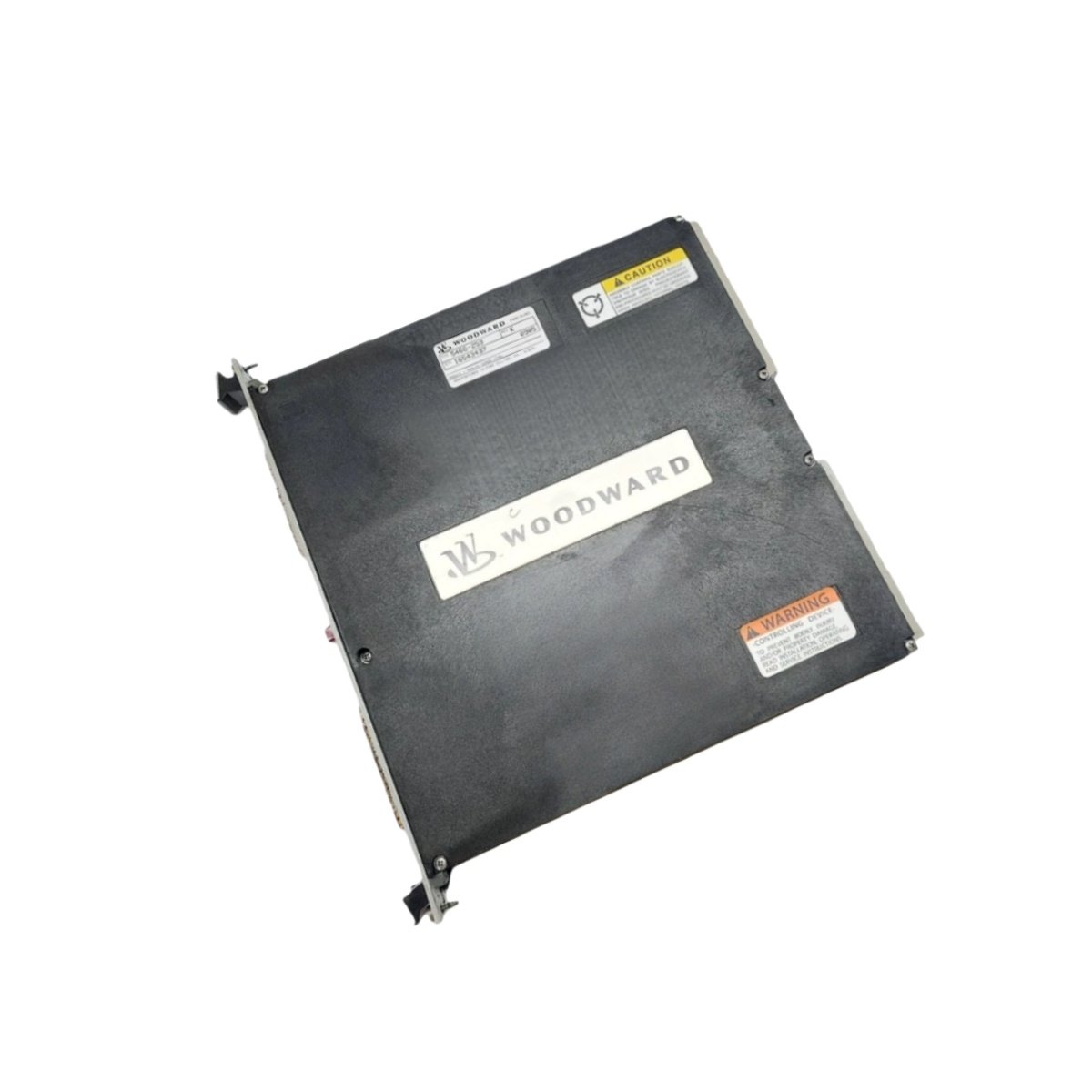

The Woodward 5466-1049 is a critical Triple Modular Redundant (TMR) power supply module. It operates within the Woodward MicroNet Digital Control system architecture. This module provides a main power supply of 24 VDC for system components. It then precisely regulates this input to a stable 5 VDC output for the protected kernel section.
Core Technical Specifications and Compatibility
Engineers must ensure specific compatibility when integrating this power module. The Woodward 5466-1049 is designed exclusively to work with the TMR5200 central processing unit. For safety and system integrity, follow strict replacement procedures during maintenance. All kernels within the MicroNet TMR Kernel Power Supply must be removed prior to any module installation or removal.
Here are the detailed technical specifications for the Woodward 5466-1049:
| Parameter | Specification |
|---|---|
| Manufacturer / Brand | Woodward |
| Model Number | 5466-1049 |
| Product Designation | TMR Kernel Power Supply (PS) Module |
| Compatible System | MicroNet Digital Control System |
| Required CPU Unit | TMR5200 |
| Primary Input Voltage | 24 VDC (+10% / -10%) |
| Regulated Output Voltage | 5 VDC (±5%) |
| System Power Consumption | 24 VDC (from primary source) |
| Operating Temp. Range | 0°C to +55°C |
| Storage Temp. Range | -40°C to +105°C |
| Module Weight in Chassis | 22 kg (48 lbs) |
| Reference Manuals | 26167V1, 26166V2 |
Design and Operational Context
This module forms the foundational power layer for high-availability TMR control systems. Its precise 5 VDC output ensures reliable operation for critical kernel logic circuits. The substantial weight of 22 kilograms indicates a robust, chassis-mounted construction. Consequently, the 5466-1049 is engineered for mission-critical applications where power supply redundancy and reliability are paramount, such as in turbine control or safety shutdown systems.
Always consult the official Woodward manuals (26167V1, 26166V2) for complete installation, wiring, and safety guidelines. This ensures optimal performance and maintains the designed fault-tolerant integrity of the overall MicroNet TMR system.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 108 × 70 × 108 mm |
