Core Function and Application

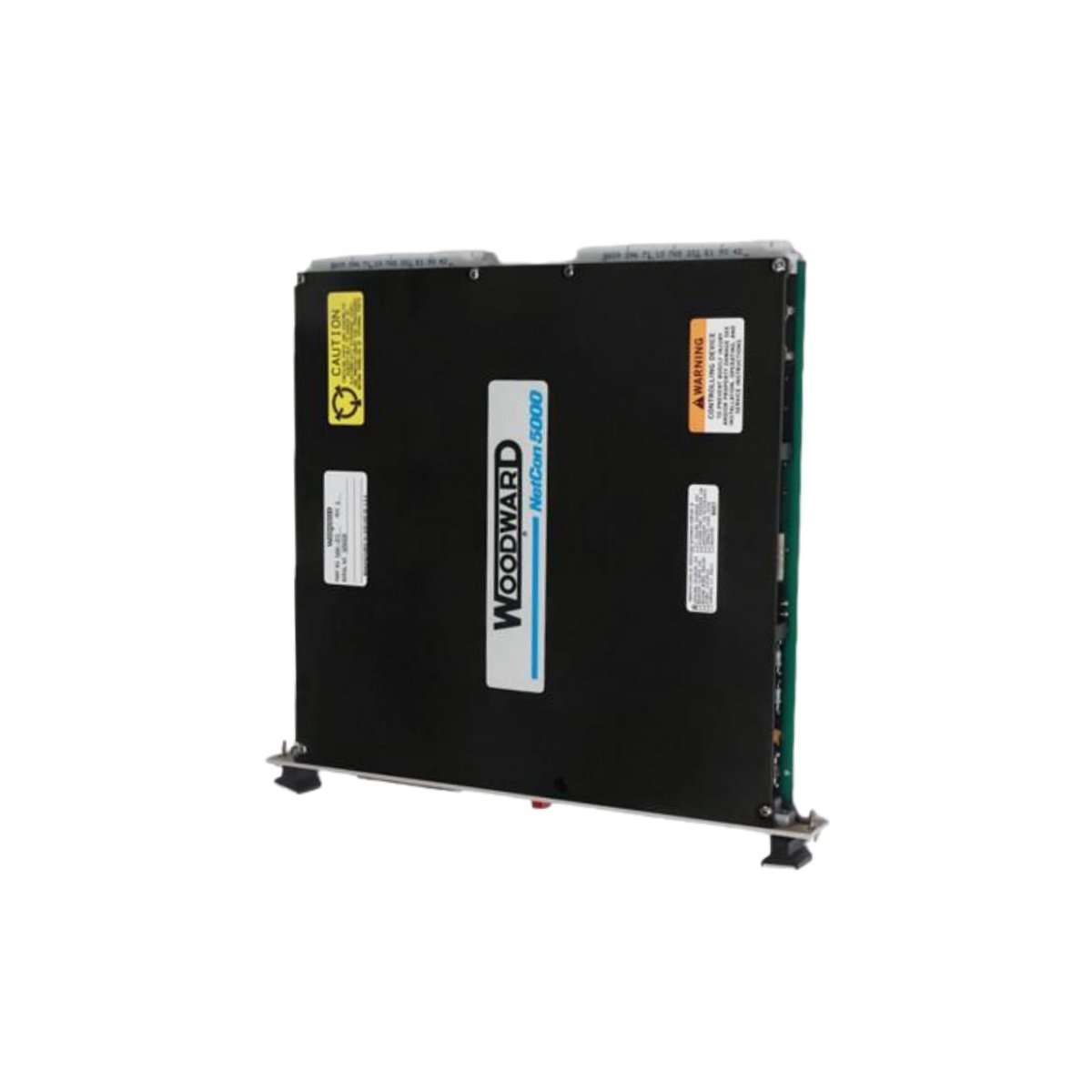

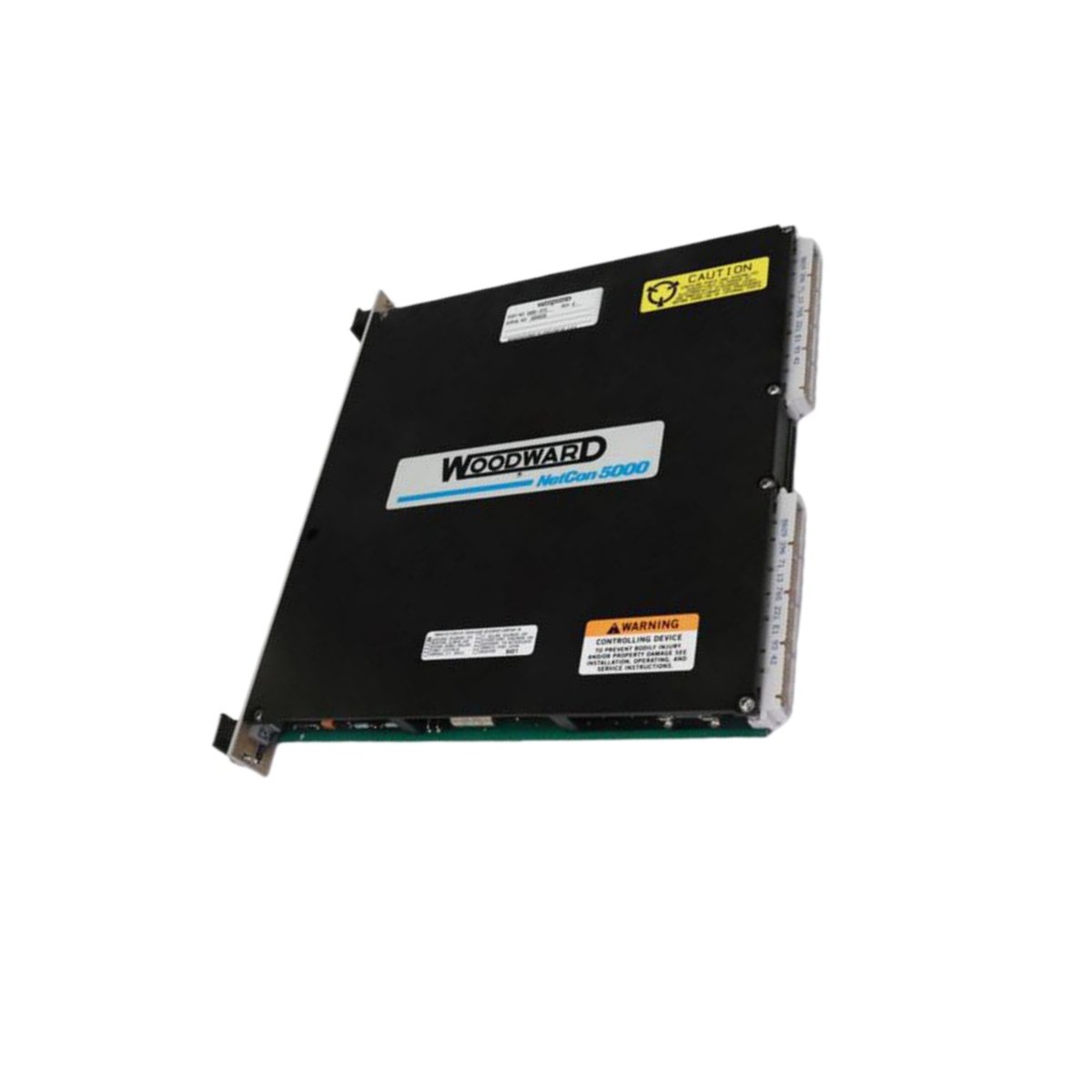

The 5464-414 is a digital speed sensor module manufactured by Woodward. This device accurately converts mechanical rotational speed into a reliable digital signal. Consequently, it provides essential speed feedback for PLCs, drives, and turbine control systems. Its robust design ensures dependable operation in demanding industrial environments.
Key Technical Specifications
The Woodward 5464-414 module delivers precise measurement within defined physical and operational limits. The table below summarizes its primary technical parameters for system integration.
| Specification Category | Detail |
|---|---|
| Manufacturer | Woodward |
| Part Number | 5464-414 |
| Product Type | Digital Speed Sensor Module |
| Output Signal | Digital Signal (compatible with PLC/DCS inputs) |
| Measurement Type | Rotational Speed (RPM) |
| Physical Dimensions | 30 cm (L) x 20 cm (W) x 25 cm (H) |
| Module Weight | 0.8 kg |
| Key Feature | High Accuracy & Resolution |
| Construction | Robust, Vibration-Resistant Housing |
| Operating Range | Wide Temperature Range (Industrial Grade) |
| Mounting | Various Configurable Options Available |
Design and Integration Benefits
This Woodward sensor features a rugged enclosure that withstands harsh conditions like vibration and temperature extremes. It offers customizable mounting options and output configurations to fit specific application needs. Moreover, its high-accuracy digital output ensures precise control and monitoring for critical machinery. Engineers widely use it for turbine overspeed protection and process speed regulation.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 273.6 × 214.1 × 59.2 mm |
