Precision Actuator Signal Management

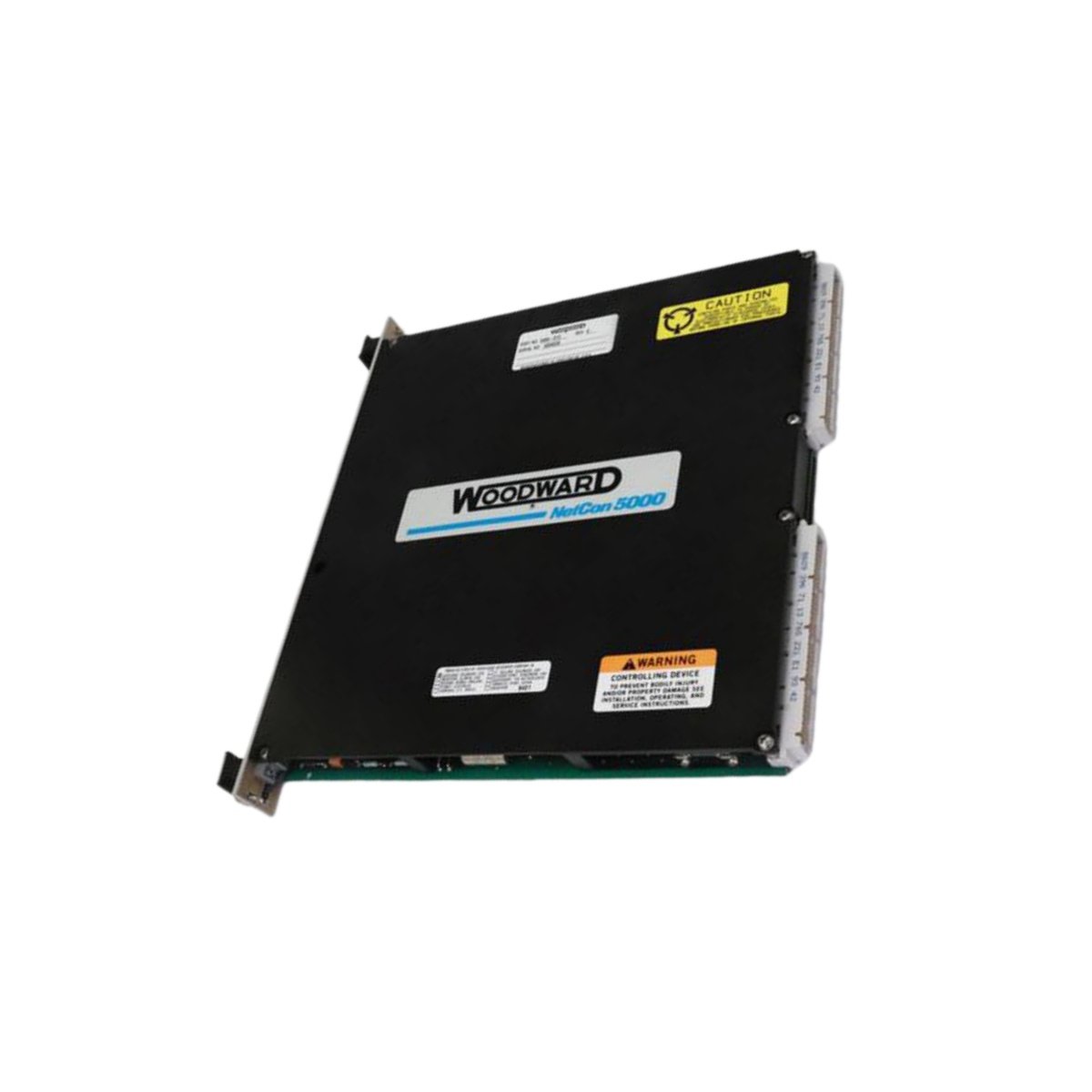

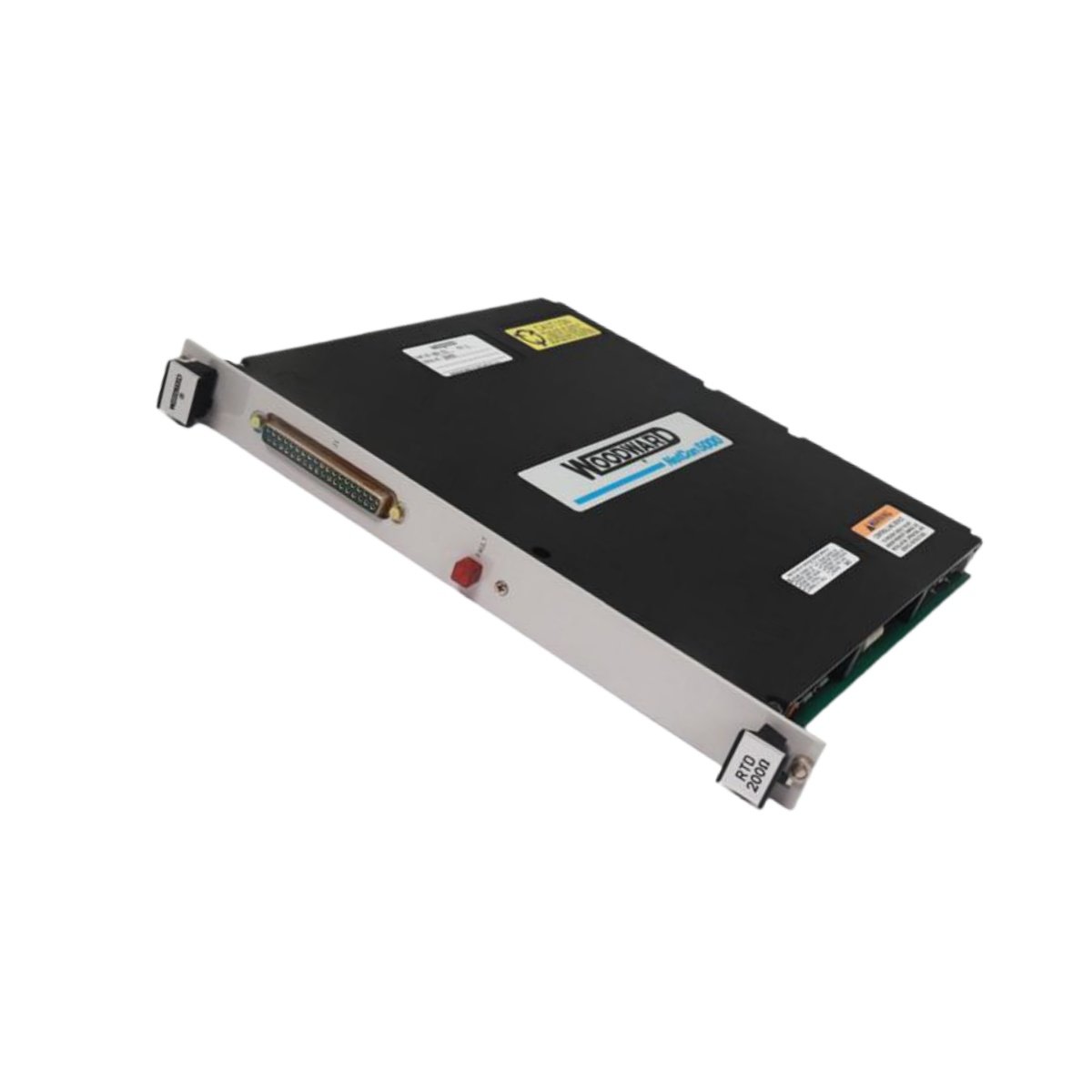

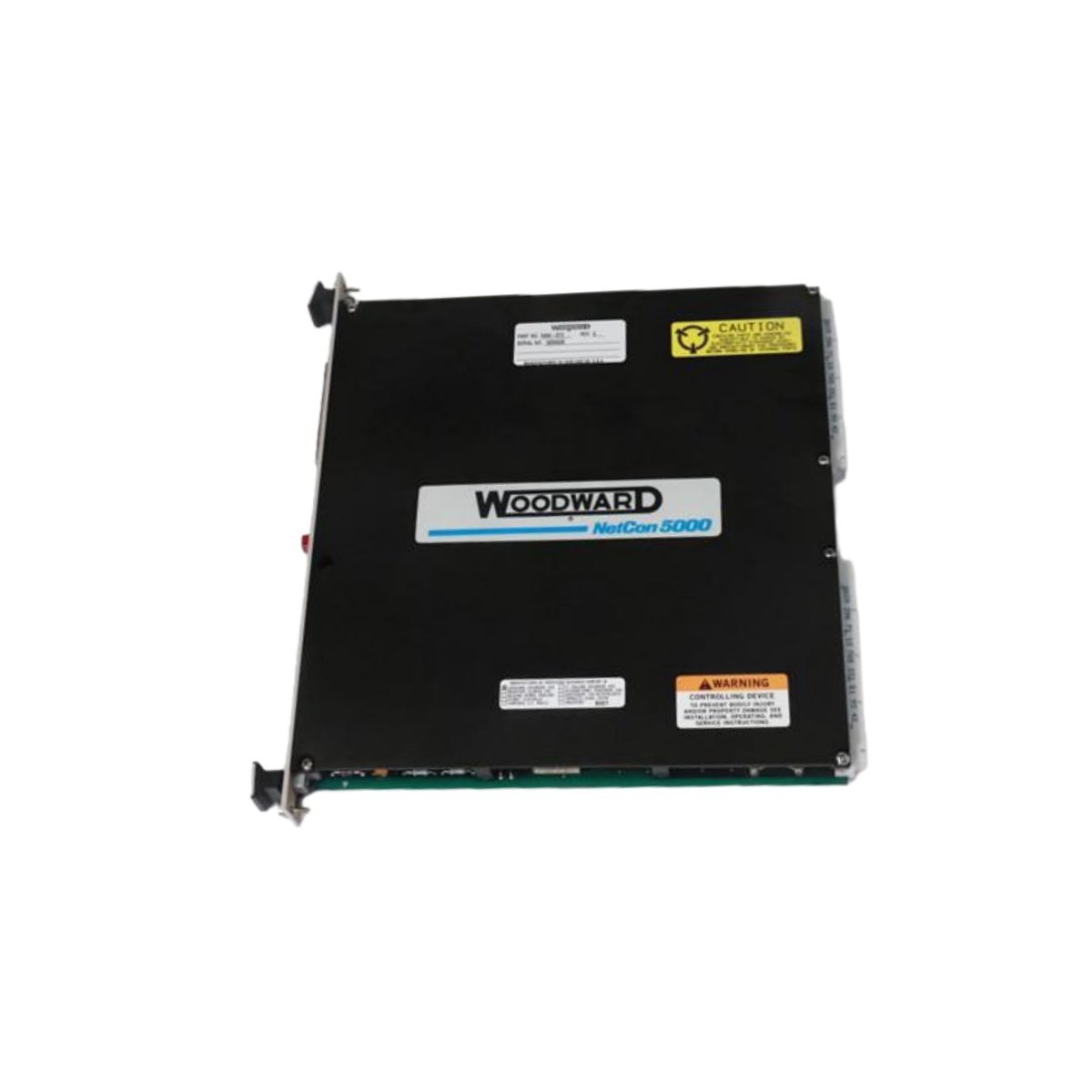

The Woodward 5464-211 module integrates and drives actuator signals within turbine control systems. This critical component from the 5400 Series delivers precise current and voltage to actuators. Furthermore, it ensures seamless signal processing for reliable turbine operation across various load conditions.
Robust Communication and Monitoring Features
This driver module supports the Modbus RTU and Modbus ASCII protocols for communication. It continuously monitors actuator performance to detect potential faults proactively. Consequently, it enhances system reliability by providing real-time diagnostic feedback directly to the main controller for immediate action.
Key Technical Specifications and Physical Data
Below are the detailed technical and physical parameters for the Woodward 5464-211. These specifications are essential for proper cabinet layout and electrical system design.
| Specification | Detail |
|---|---|
| Manufacturer & Model | Woodward 5464-211 |
| Product Series | 5400 Series Turbine Control |
| Primary Function | Actuator Signal Integration & Driving |
| Input Voltage Range | 10 – 60 VDC |
| Nominal Voltage | 24 VDC |
| Operating Temperature | -25°C to +70°C |
| Dimensions (H x W x D) | 30 cm x 20 cm x 25 cm |
| Weight | 0.73 kg |
| Supported Protocols | Modbus RTU, Modbus ASCII |
| Key Capability | Actuator Fault Detection & Monitoring |
Dedicated Signal Driving and Protection
The module provides isolated output channels to protect the control system from actuator feedback issues. It can drive multiple actuators simultaneously, managing both position and speed control signals. This capability is crucial for the precise fuel and air management required in gas or steam turbines.
Flexible Integration for Critical Systems
Woodward designed the 5464-211 for high customization in specific applications. Its configurable nature and software compatibility simplify integration into existing controls. Therefore, this module delivers a versatile and dependable solution for advanced turbine management in power generation and mechanical drive applications.
Installation and Environmental Resilience
The compact form factor and standard mounting options allow for straightforward installation in control cabinets. Its wide operating temperature and voltage ranges ensure functionality in challenging power plant environments. This resilience minimizes downtime and maintains precise control over the turbine’s critical functions.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 273.6 × 214.1 × 59.2 mm |
