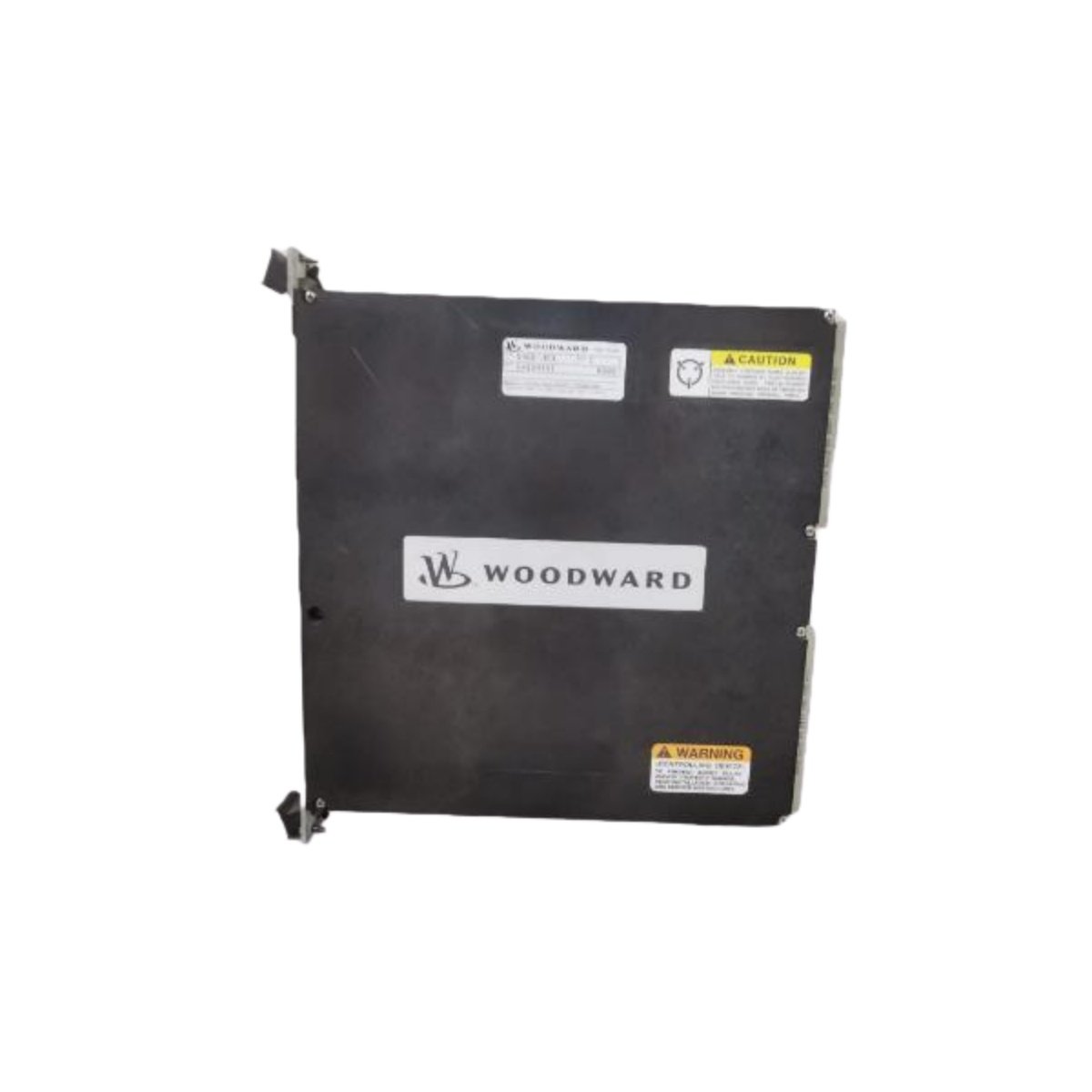

The Woodward 5464-017 is a critical sensor interface module designed for precision speed control systems. This component processes signals from a dedicated 4-transformer array to monitor rotational speed. Moreover, it delivers reliable data to ensure stable and accurate machinery operation.

Core Functionality for Channel Control

This module acts as the primary interface for speed sensing within a control channel. It conditions raw signals from magnetic pickups or similar sensors via its transformer array. Consequently, the system receives a clean, amplified signal for precise speed calculation and control logic.

Detailed Technical Specifications

The 5464-017 integrates robust signal conditioning circuitry into a compact industrial package. Below are its definitive technical parameters for system integration.

Technical Specifications:

• Manufacturer & Model: Woodward 5464-017

• Product Category: Speed Sensor Interface / Control Module

• Primary Function: Conditions speed sensor signals for control systems

• Core Component: Integrated 4-transformer signal conditioning array

• Input Type: Accepts signals from magnetic speed pickups (MPUs)

• Channel Control: Dedicated processing for a single speed control channel

• Output Signal: Provides a processed digital or analog speed signal

• Power Requirements: Typically operates on standard control rack voltage (e.g., +5VDC, +15VDC)

• Form Factor: Industrial-grade module for mounting in a Woodward control chassis

• Dimensions: Conforms to standard rack dimensions for seamless integration

• Weight: Engineered for minimal weight while ensuring mechanical durability

• Electrical Interface: Screw terminal or connectorized interface for sensor and control wiring

• Internal Components: Includes four signal transformers, amplification circuitry, and filtering components

• Operating Temperature: Rated for reliable performance in standard industrial ambient ranges

• Isolation: Provides electrical isolation between sensor fields and control system logic

System Integration and Critical Applications

The Woodward 5464-017 is essential in turbine, engine, and compressor control systems where accurate speed measurement is paramount. It functions as a key component within larger control platforms. For example, it provides vital speed data to a main processor like the IS200AEBMG1AFB or a governing system. This module is part of a comprehensive safety architecture that may include protective devices like the RMS-TSG-TZ-C Static Trip unit. It often works alongside vibration monitoring modules such as the PR6423/128-110 for complete machine protection.
