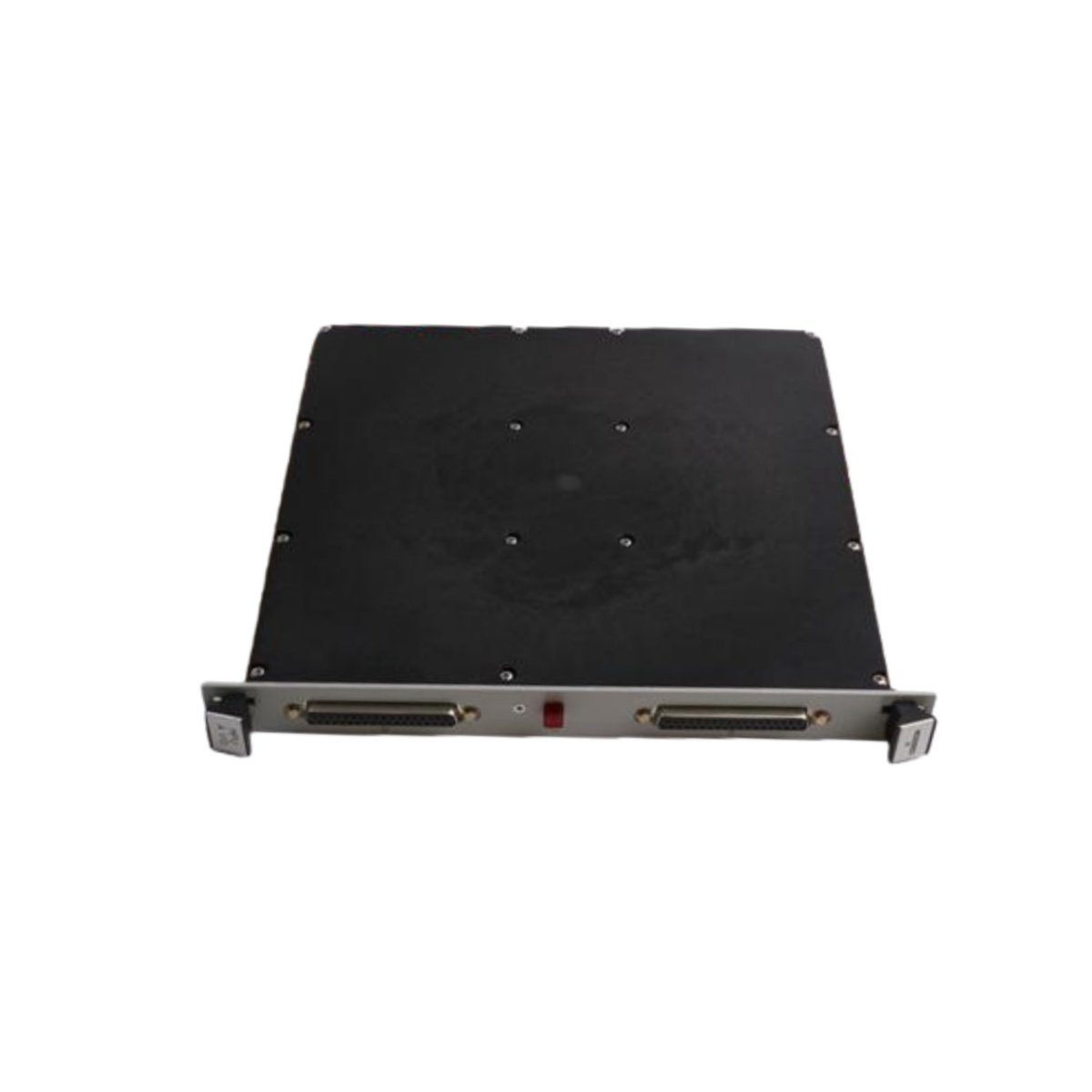

The Woodward 5463-583 is a dedicated digital input module for governing systems. This unit provides eight isolated channels for reliable 0-10V analog signal acquisition. Consequently, it delivers precise monitoring data essential for critical speed and load control applications.
Core Signal Acquisition Functionality
This specialized module excels at reading analog voltage signals from sensors and transducers. Each channel features individual isolation to ensure exceptional signal integrity and noise immunity. Moreover, the 5463-583 integrates directly into Woodward governor and control system racks.
The module converts incoming analog voltages into high-resolution digital values for the controller. Therefore, it forms a vital data link for accurate process feedback in turbine and engine management.
Detailed Electrical and Physical Specifications
Engineered for harsh industrial environments, this module meets rigorous performance standards. Below are its comprehensive technical and dimensional specifications for system integration.
Comprehensive Technical Specifications:
| Parameter | Specification |
|---|---|
| Manufacturer | Woodward |
| Model Number | 5463-583 |
| Product Category | Governor Digital Module / Analog Input Module |
| Primary Function | 8-Channel Isolated 0-10V DC Input |
| Number of Channels | 8 (Individually Isolated) |
| Input Signal Range | 0 to +10 V DC (User-configurable scaling) |
| Input Impedance | >1 MΩ |
| A/D Converter Resolution | 16-bit |
| Overall Accuracy | ±0.1% of Full Scale (at 25°C) |
| Channel-to-Channel Isolation | 1500 V AC RMS (Continuous) |
| Common Mode Rejection | >120 dB at 50/60 Hz |
| Module Dimensions (L x W x H) | 160 mm x 22 mm x 120 mm (Estimated) |
| Module Weight | 0.25 kg |
| Primary Component Count | 8x Isolation Amplifiers, 1x 16-bit ADC, 1x µP |
| Internal Energy Storage | <0.5 Joules (Local decoupling capacitors only) |
| Sample Rate per Channel | 1000 Samples per Second |
| Data Interface | Proprietary Parallel Bus to Woodward backplane |
| Connector Type | High-density male header or terminal block (model-specific) |
| Power Supply Requirement | +5 V DC and ±15 V DC (from system backplane) |
| Power Consumption | 1.8 Watts (Typical) |
| Operating Temperature Range | -40°C to +85°C |
Application and Integration Context
This module is critical for monitoring speed, pressure, and position signals in Woodward turbine control systems. For sourcing specialized industrial control spares, consider global platforms. For instance, Alibaba lists related components like the RMS-TSG-TZ-C Static Trip unit for electrical protection.
Details
| Weight | 0.85 kg |
|---|---|
| Dimensions | 180 × 110 × 40 mm |
