Overview and Core Function

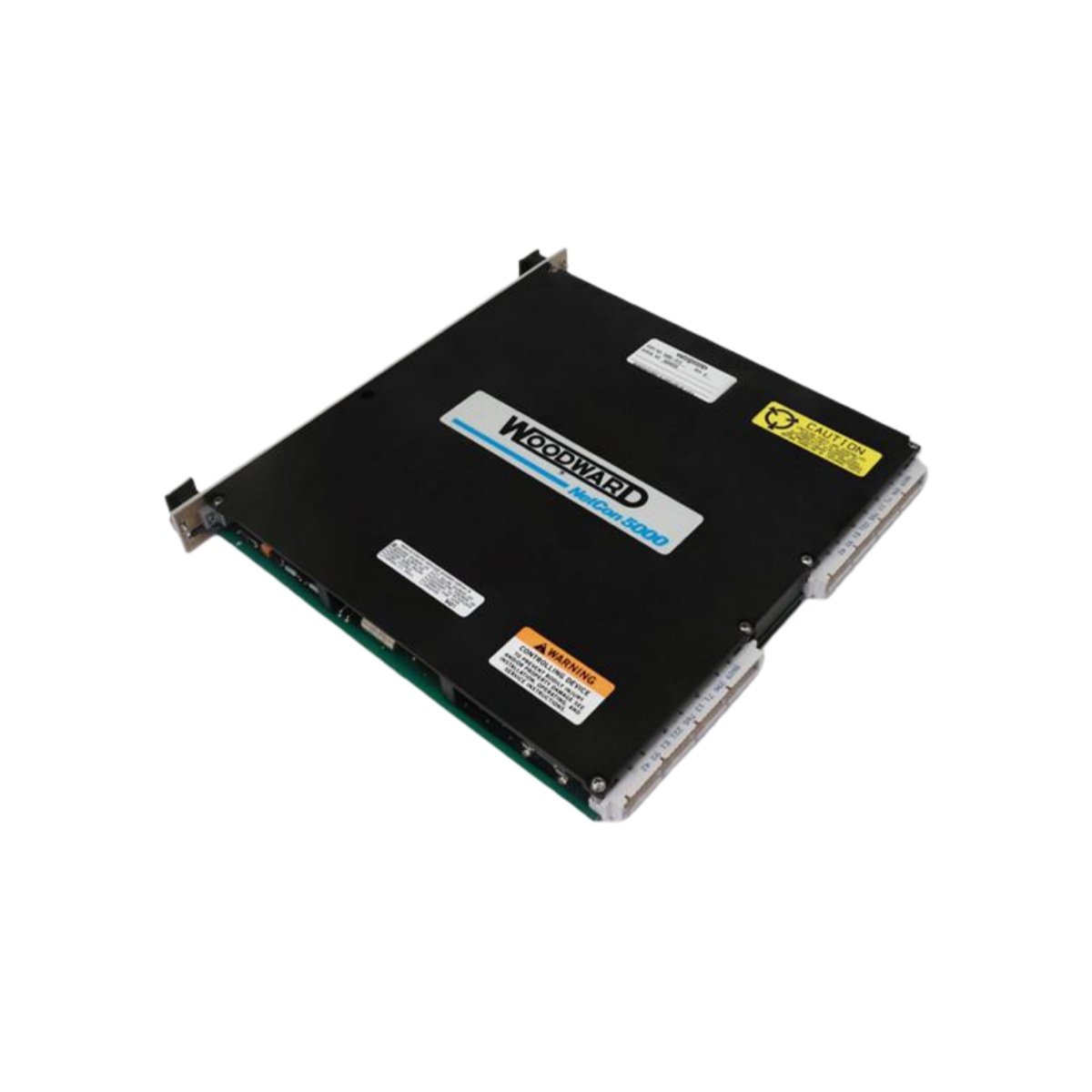

The Woodward 5463-034 is an auxiliary power module board designed for control systems. This board provides regulated, isolated power to critical components like sensors and controllers. Therefore, it ensures stable and reliable operation for turbine and engine management systems.
Key Technical Specifications
This board delivers precise power conversion within a compact industrial form factor.
Technical Specifications Table:
| Parameter | Specification |
|---|---|
| Manufacturer | Woodward |
| Model | 5463-034 |
| Type | Auxiliary Power Supply Module |
| Input Voltage | 24 V DC (Typical for Control Systems) |
| Output Voltage(s) | Multiple Isolated Rails (e.g., ±15V, +5V) |
| Output Power | Typically 10-30 Watts (System Dependent) |
| Isolation Rating | 1500 V AC (Minimum, Input to Output) |
| Efficiency | >85% (Typical at Full Load) |
| Operating Temperature | -20°C to +70°C (-4°F to 158°F) |
| Protections | Overcurrent, Overtemperature, Short-Circuit |
| Dimensions | Approx. 150 x 100 x 25 mm (Standard Eurocard) |
| Weight | Approximately 200 grams |
Design Integration and Application
You typically install this module within a main controller or a dedicated power supply rack. It converts the main system DC bus voltage into clean, isolated power for analog circuits and digital logic. Moreover, its design prioritizes high noise immunity to prevent interference with sensitive measurement signals from devices like the Woodward 5463-729 speed sensor.
Reliability and System Role
The module’s robust protection features safeguard connected subsystems from electrical faults. Consequently, it enhances the overall availability of the control system by providing a dependable power source. This reliability is as crucial as the protective function offered by devices like the RMS-TSG-TZ-C Static Trip unit in electrical circuits.
