Providing Clear System Interaction for MicroNet Control Platforms

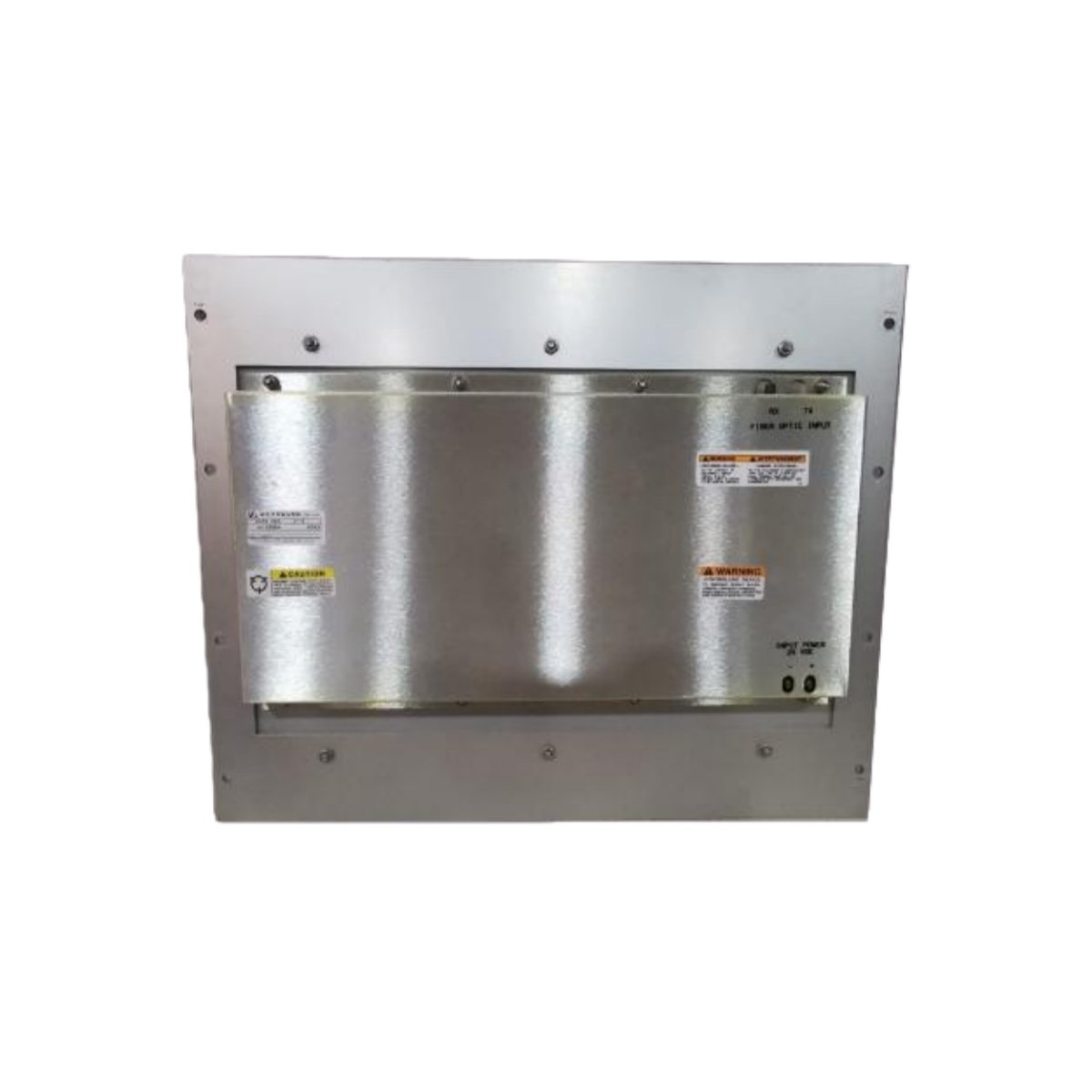

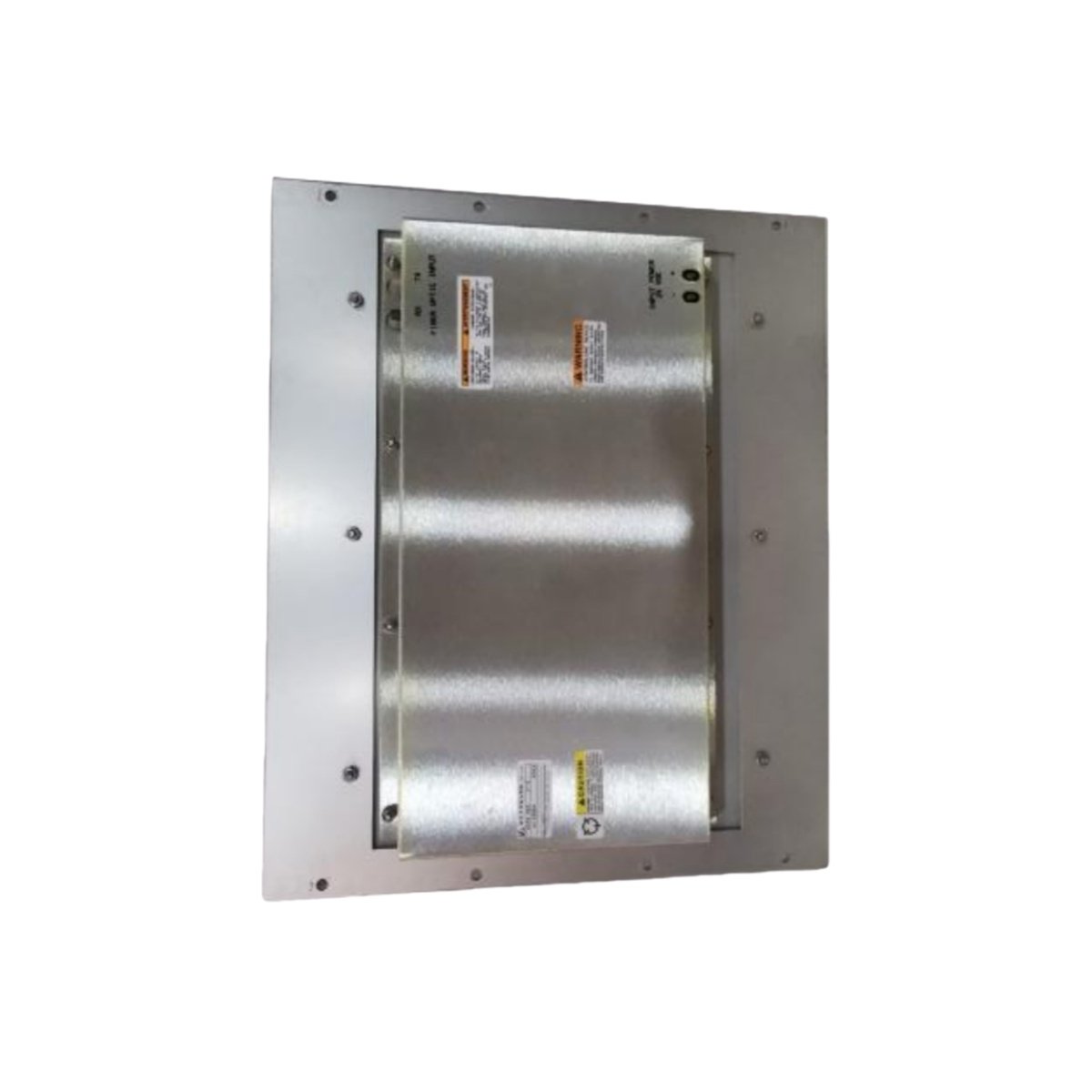

The Woodward 5453-203 is a dedicated operator interface panel for the MicroNet series. This unit features a two-line display for presenting critical system status and parameters. It connects directly to MicroNet digital controllers for local monitoring and adjustment. Consequently, it serves as an essential human-machine interface (HMI) in turbine and engine control applications.
Technical Specifications and Physical Profile
This interface panel from Woodward is designed for rugged industrial environments. Its compact yet robust housing contains all necessary display and interface electronics. Furthermore, the panel maintains reliable operation across an extensive temperature range from -40°C to 70°C.
Detailed Technical Parameters
| Parameter | Specification |
|---|---|
| Manufacturer | Woodward |
| Model Number | 5453-203 |
| Product Series | MicroNet Digital Control Series |
| Product Category | Operator Interface Panel / Local HMI |
| Display Type | 2-Line, Alphanumeric (likely LCD with backlight) |
| Display Content | System status, setpoints, alarms, process values |
| Front Panel Controls | Tactile keys or membrane for navigation and data entry |
| Primary Power Supply | 12 VDC |
| Typical Current Draw | 650 mA |
| Power Consumption | Approximately 7.8 Watts (12V * 0.65A) |
| Communication Ports | 1 x RS-232, 1 x RS-422 |
| Connector Type | DB-9 (for communication cable) |
| Cable Interface Type | HDMI (Note: This likely refers to a specific Woodward HDMi cable family, not the consumer video standard) |
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -55°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Panel Dimensions (H x W x D) | 305 mm x 356 mm x 152 mm |
| Panel Weight | 1.82 kg |
| Mounting | Designed for panel or enclosure front-door mounting |
| Cutout Dimensions | Slightly less than 305mm x 356mm for flush mounting |
| Enclosure Protection | Typically IP20/NEMA 1 for indoor use |
| Status Indicators | Display backlight, dedicated LED indicators for Power, Comm, Alarm |
| Internal Energy Storage | None; requires continuous power |
| Firmware | Pre-programmed for MicroNet controller compatibility |
Key Features and Operational Benefits
The 5453-203 panel provides operators with direct, local access to the MicroNet controller. Its two-line display shows real-time data like speed, load, temperature, and active alarms. The panel also allows for on-the-fly adjustment of setpoints and tuning parameters. Moreover, its rugged construction ensures reliable performance in control rooms or near machinery. Therefore, it is a vital component for commissioning, troubleshooting, and daily operation.
Application Context and System Integration
This interface panel is specifically designed for use with Woodward MicroNet digital governors and control systems. For example, it connects to a MicroNet TMR controller for a gas turbine. The panel communicates via RS-232/422 serial links using Woodward’s proprietary protocol. It typically mounts on the control cabinet door for convenient operator access.
Installation and Connection Process
First, prepare a panel cutout matching the specified dimensions for a flush mount. Next, secure the 5453-203 panel in the cutout using the provided mounting hardware. Then, connect the 12VDC power wires and the proprietary HDMi communication cable to the DB-9 port. Finally, route the other end of the cable to the corresponding port on the MicroNet controller.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 273.6 × 214.1 × 59.2 mm |
