Core Network Bridging Function

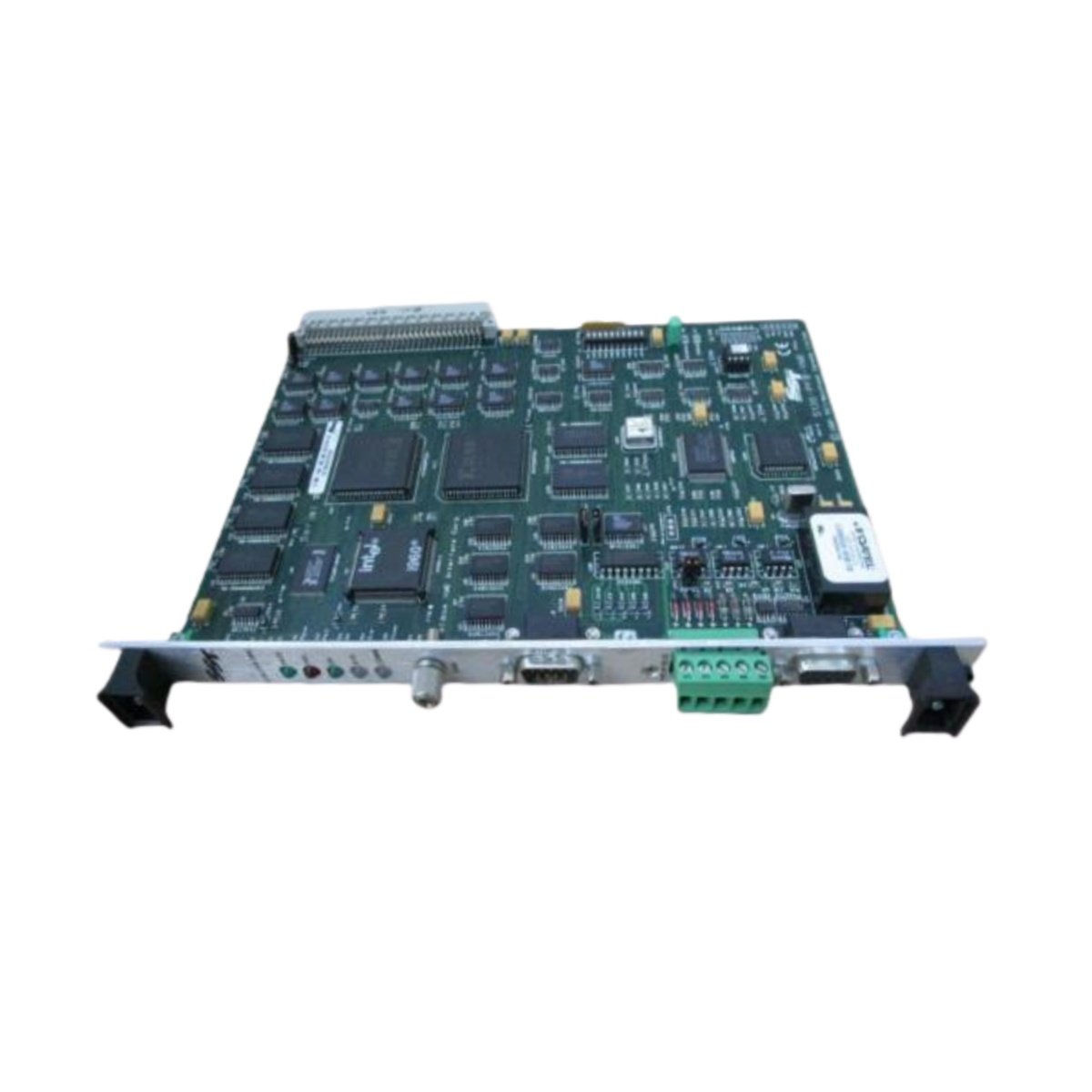

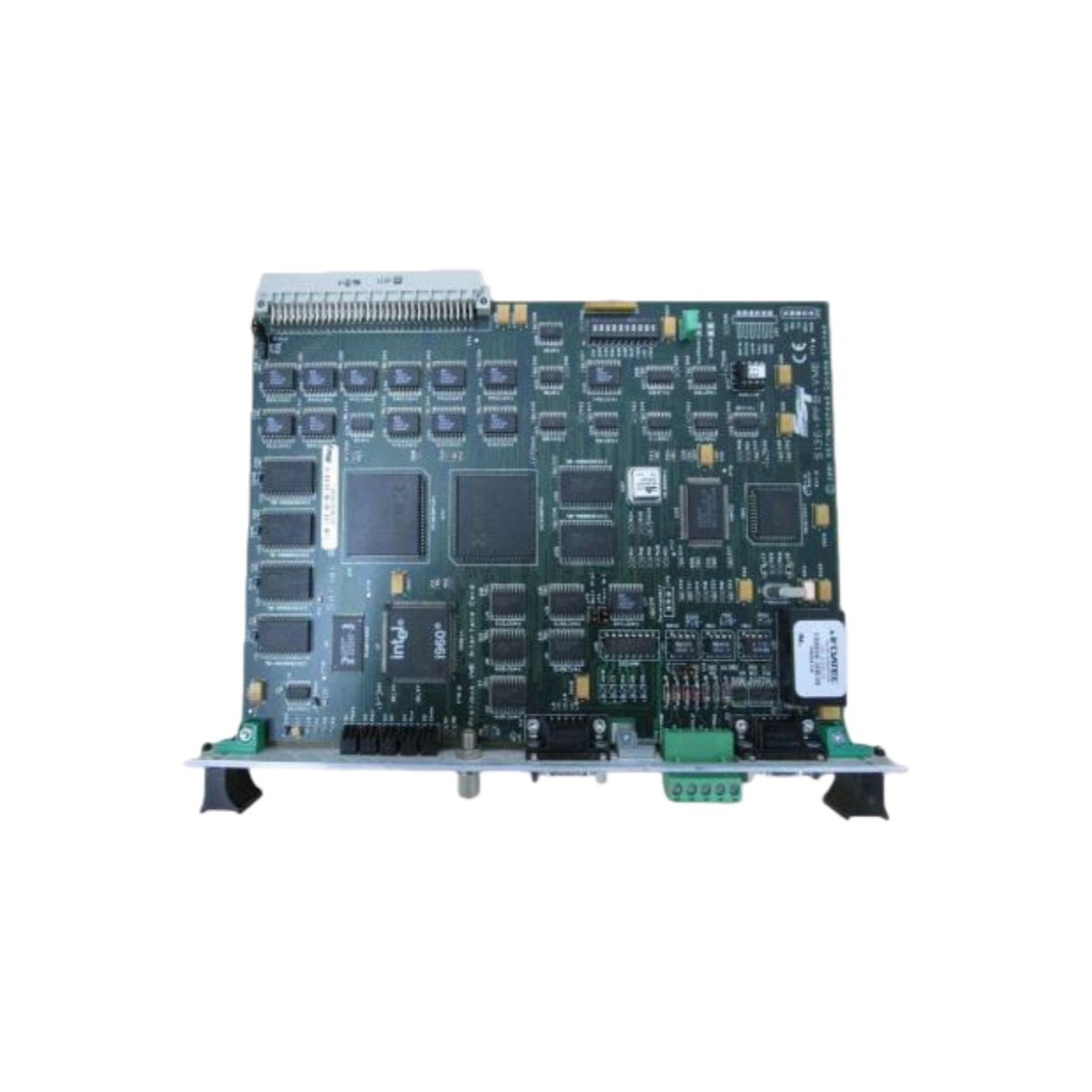

The Woodward 5136-DNP-CPCI is a DeviceNet Interface Card for the Compact PCI bus. This card creates a robust link between a Compact PCI computer and a DeviceNet industrial network. Consequently, it enables seamless data exchange between the host system and field devices. This versatility supports applications like HMI interfaces, PC-based control, and complex I/O simulation.
Key Protocol and Operational Features
This interface card implements the full DeviceNet protocol directly in hardware. This design ensures maximum communication performance and network reliability. The 5136-DNP-CPCI supports UCMM capability for Group 2 and 3 explicit connections. Furthermore, it can execute Master and Slave operations simultaneously for highly flexible network usage.
Technical Specifications and Physical Design
Engineered for industrial computing, the card fits standard Compact PCI bus slots. It supports network configurations with up to 32 nodes for scalable system design. The following table details its critical electrical, communication, and physical parameters.
| Parameter | Specification |
|---|---|
| Manufacturer / Series | Woodward / Compact PCI |
| Product Model | 5136-DNP-CPCI |
| Card Type | DeviceNet Interface Card |
| Host Bus | Compact PCI |
| Network Interface | DeviceNet |
| Supported Baud Rates | 125 kbps, 250 kbps, 500 kbps |
| Maximum Network Nodes | Up to 32 |
| Connector | 1 x 9-pin male (DeviceNet) |
| Power Requirements | +5 VDC, +12 VDC (from PCI bus) |
| Dimensions (H x L) | 108 mm x 22 mm (4.25 in x 0.88 in) |
| Key Feature | Hardware-based Protocol Implementation |
| UCMM Support | Yes (Group 2 & 3 Dynamic Explicit) |
| Operation Modes | Simultaneous Master & Slave |
Installation and Application Notes
Install the card into an available slot on your Compact PCI backplane. The bus provides the necessary +5VDC and +12VDC power for operation. Use the dedicated 9-pin connector to attach standard DeviceNet trunk cable. The Woodward 5136-DNP-CPCI is ideal for integrating industrial PCs directly into DeviceNet control architectures.
Details
| Weight | 1.8 kg |
|---|---|
| Dimensions | 108 × 22 × 2 mm |
