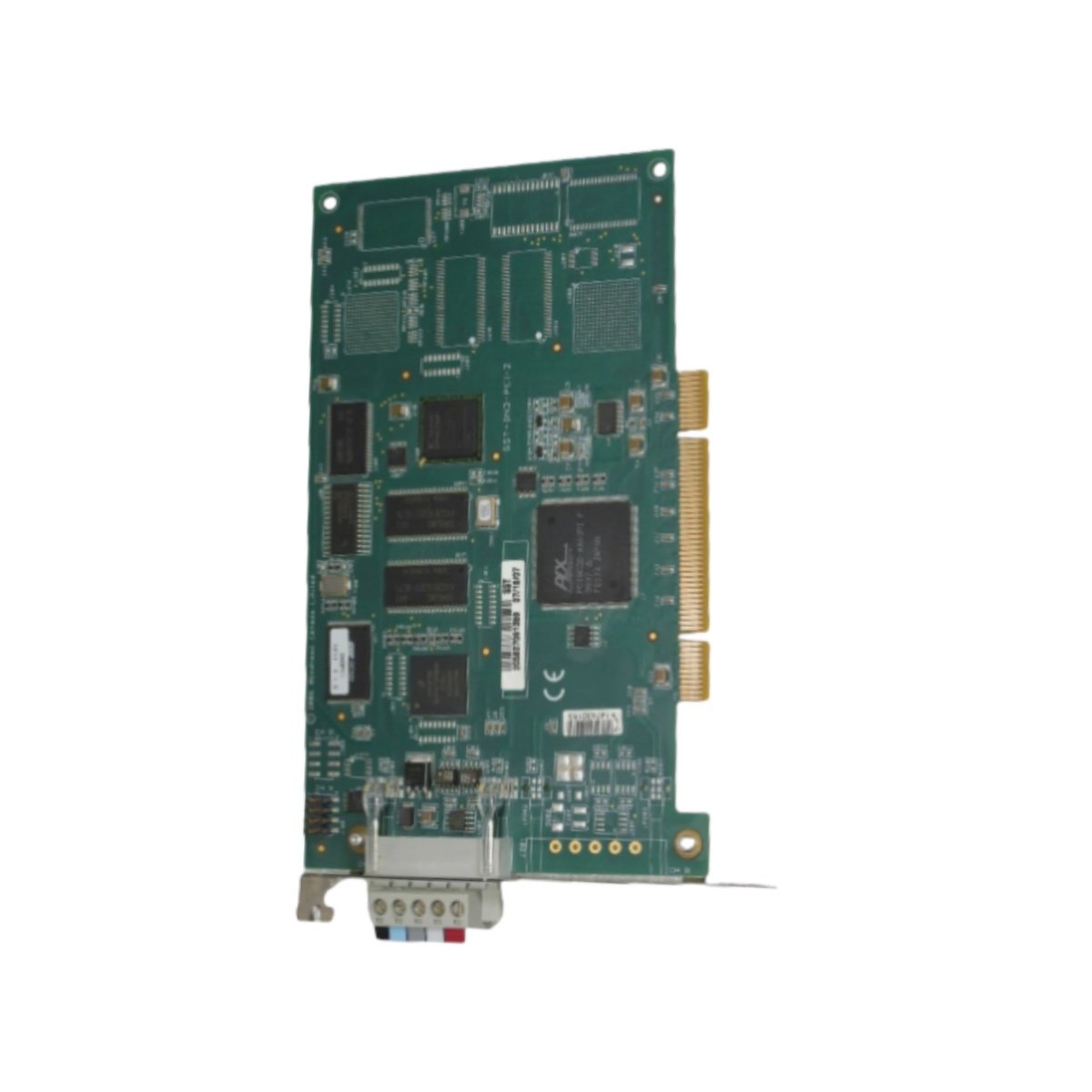

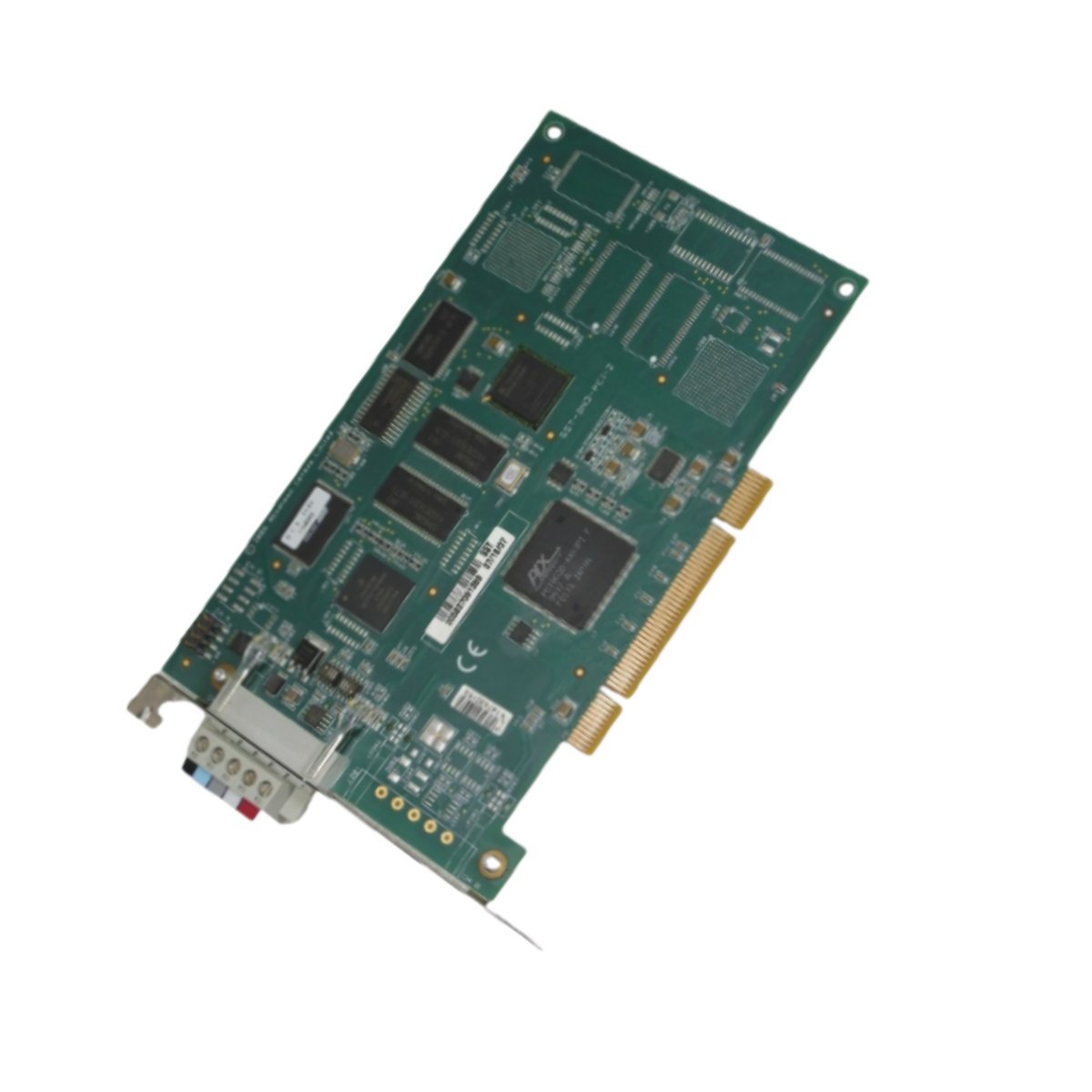

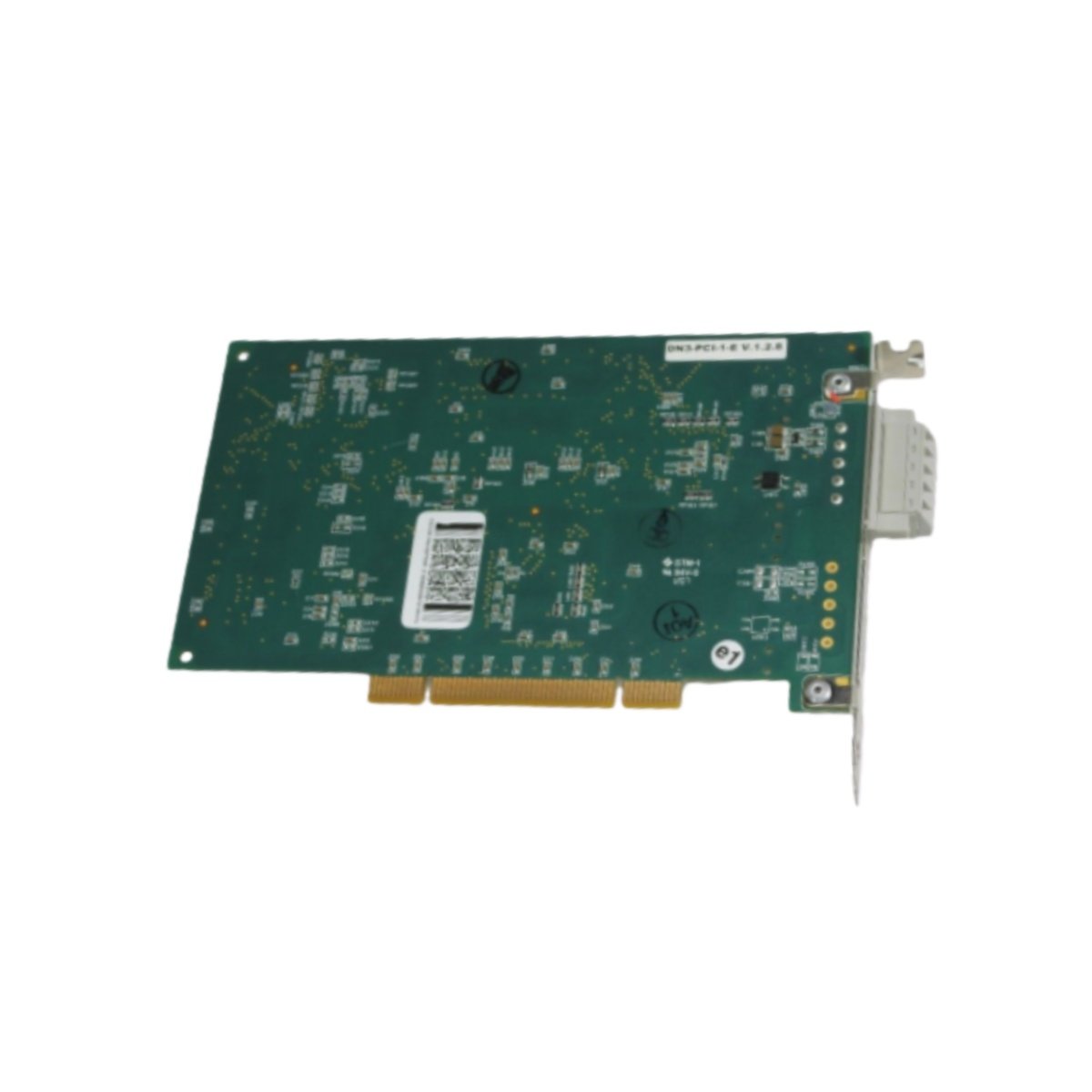

The Woodhead SST-DN3-PCI-2 delivers robust, high-performance DeviceNet connectivity directly to your industrial PC. This PCI bus interface card functions as a master (client) on the network, enabling precise control and monitoring of slave devices. Consequently, it serves as a critical backbone for applications demanding deterministic data exchange and reliable machine control.
Core Communication Capabilities and Network Performance
This interface card supports the complete suite of standard DeviceNet communication functions. It efficiently manages fragmented explicit messages for complex parameter configuration and data requests. Moreover, the card handles high-speed I/O messaging for real-time control, supporting all standard DeviceNet baud rates up to 500 kbps. A set of intuitive diagnostic LEDs provides immediate visual feedback on power, network status, and communication activity for streamlined maintenance.
Hardware Integration and System Design
The card installs into a standard PCI slot on your industrial computer motherboard, drawing power directly from the bus. Its design ensures stable operation in typical industrial environments where reliability is paramount. The SST-DN3-PCI-2 from Woodhead is part of a broader family known for supporting diverse network protocols and robust bus formats. This heritage translates into a dependable component for system integrators building or maintaining automated production lines, machine control systems, and material handling networks.
Legacy System Support and Sourcing Information
While the original manufacturer may have declared an End-Of-Life (EOL) status for this product, it remains a vital component for many operational systems. Specialized industrial automation distributors, such as Artisan Technology Group, often stock and support these legacy interface cards. Therefore, you can still source the SST-DN3-PCI-2 for maintenance, system expansion, or like-for-like replacement in existing installations, ensuring continued operation without a costly full-system overhaul.
Detailed Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Woodhead |
| Model Number | SST-DN3-PCI-2 |
| Card Type | DeviceNet Network Interface Card |
| Host Bus Interface | PCI (Peripheral Component Interconnect) |
| Primary Protocol | DeviceNet |
| Device Role on Network | Client (Master) |
| Supported Message Types | Fragmented Explicit Messages, I/O Messaging |
| Baud Rate Support | 125 kbps, 250 kbps, 500 kbps (All Standard Rates) |
| Diagnostic Features | Status LEDs (Power, Network, Communication) |
| Key Application | Real-time Machine Control, Data Acquisition, System Monitoring |
| Typical Use Case | Integration of Industrial PCs into DeviceNet Control Networks |
| Legacy Support | Available post-EOL via specialized automation component distributors |
Ideal Application Scenarios
This card is essential for integrating a supervisory PC into a DeviceNet-based control architecture. Common applications include centralized data logging, advanced process visualization, and master-level coordination of multiple drives, sensors, and I/O blocks. By implementing the Woodhead SST-DN3-PCI-2, you maintain a seamless and high-speed communication link between your control software and the factory floor devices.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 273.6 × 214.1 × 59.2 mm |
