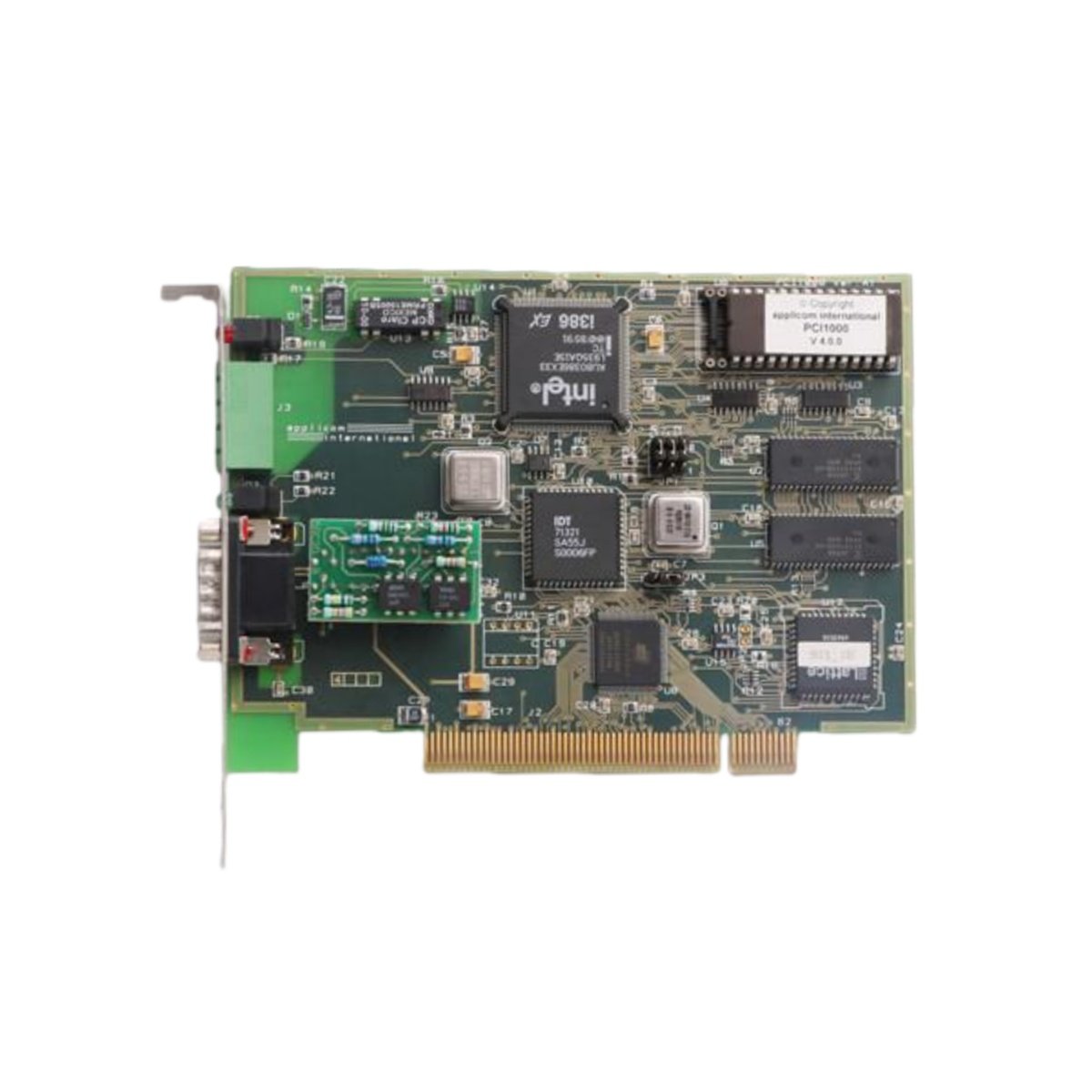

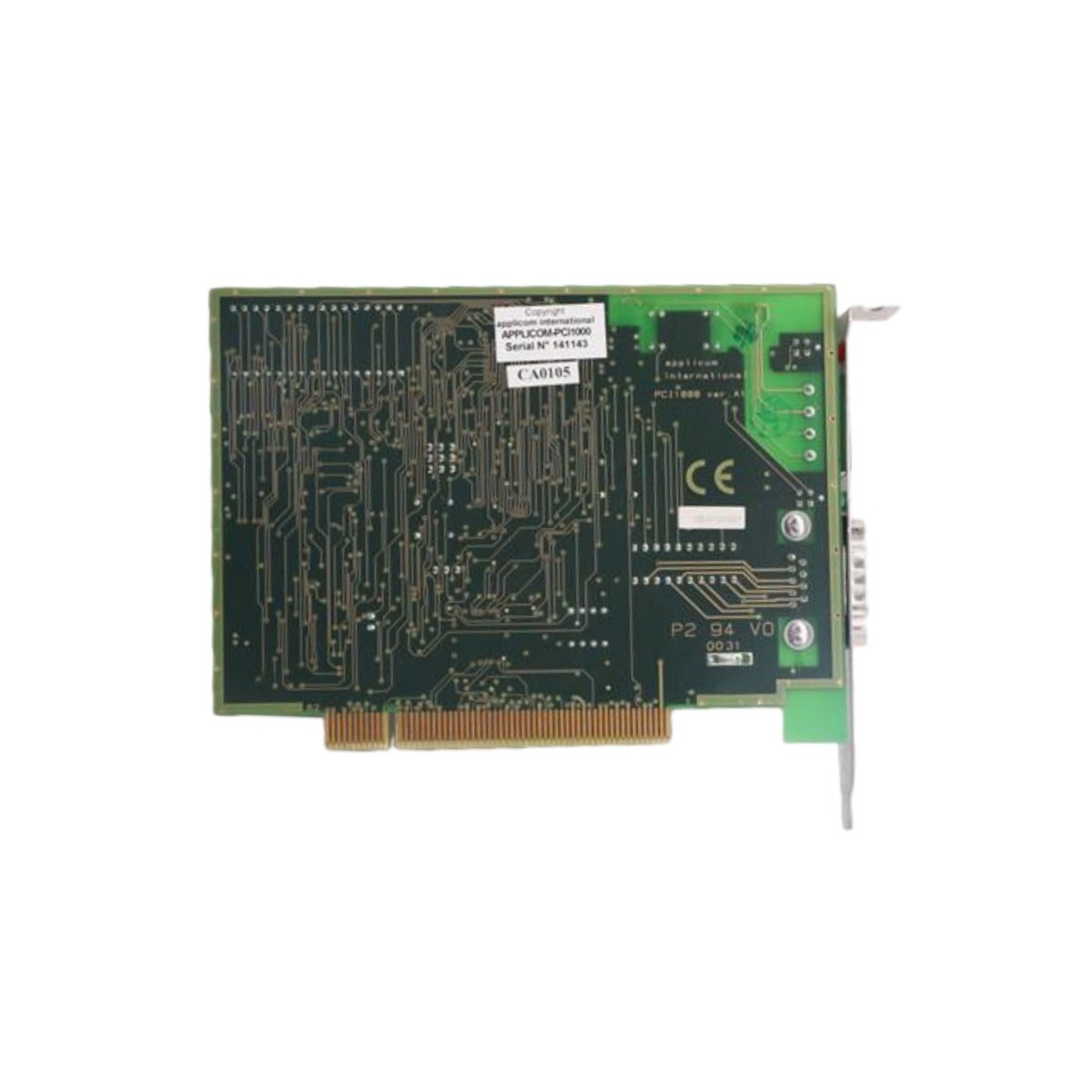

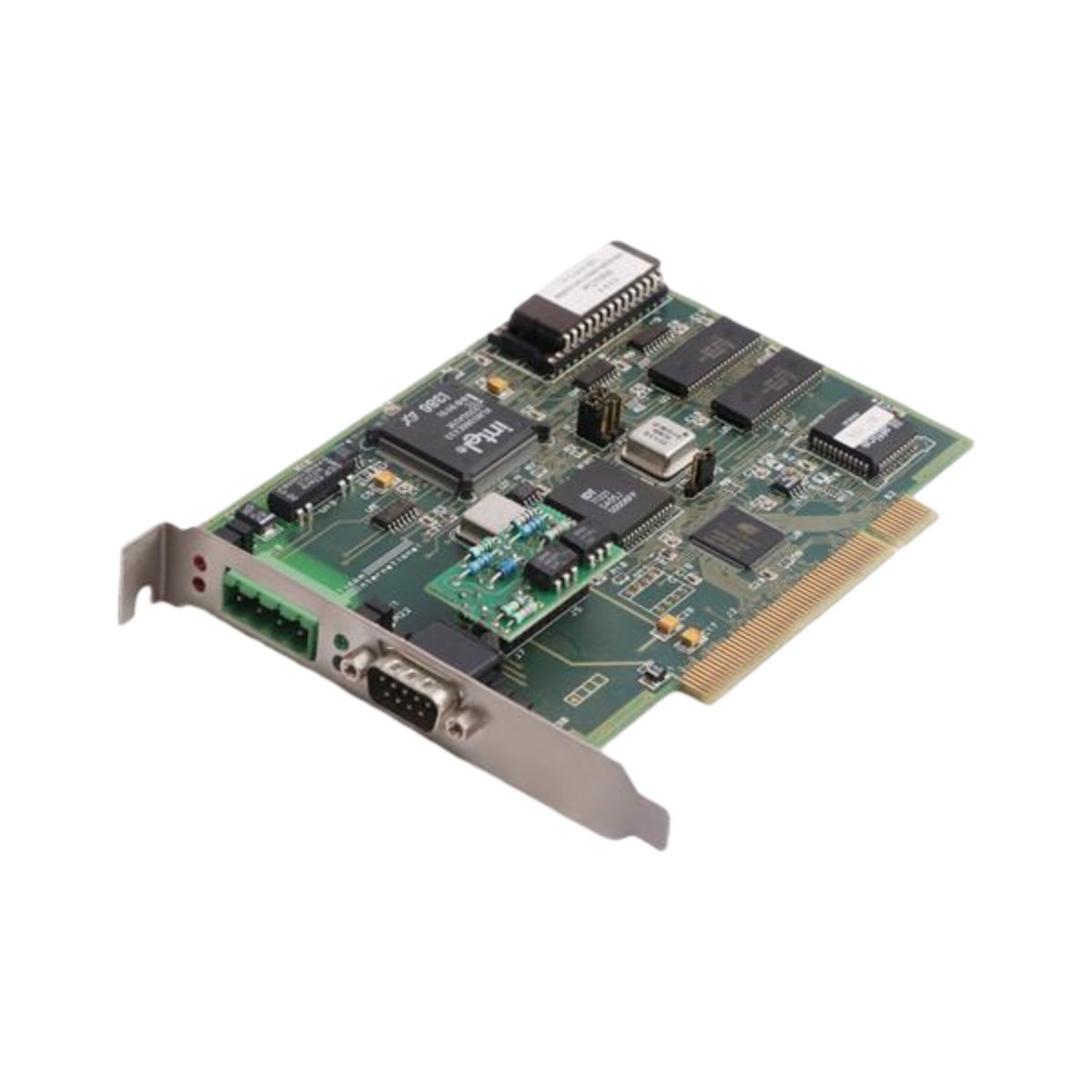

The Woodhead APPLICOM-PCI1000 delivers secure and reliable data communication for harsh industrial environments. This robust PCI network interface card (NIC) withstands extreme temperatures, shock, and vibration. Consequently, it ensures consistent network connectivity for critical SCADA and control systems.
High-Performance Network Connectivity
The card provides a fast data transfer rate of up to 100 Mbps for efficient data exchange. It features a single RJ45 connector for standard Ethernet network cabling. This interface supports reliable and error-free transmission for process data and control commands. Therefore, it is ideal for manufacturing automation, oil and gas, and transportation applications.
Extreme Environmental Durability
The APPLICOM-PCI1000 operates reliably across a wide temperature range from -40°C to 85°C. It performs in environments with 0% to 95% non-condensing relative humidity. The card withstands vibration up to 5g RMS from 10 Hz to 500 Hz. Moreover, it survives shock pulses of 50g with an 11 ms half-sine waveform.
Physical Dimensions and Long-Term Reliability
This compact NIC measures 4.8” by 3.3” with a 1.0” profile for standard PCI slots. It has a light weight of 5.0 ounces for easy handling and installation. The product features a long lifecycle design for sustained performance and availability. Its ruggedized construction guarantees reliability in the most demanding plant floor conditions.
Detailed Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Woodhead (Woodward) |
| Model Number | APPLICOM-PCI1000 |
| Product Type | Rugged Industrial Network Interface Card (NIC) |
| Host Interface | PCI |
| Data Transfer Rate | Up to 100 Mbps |
| Network Connector | 1 x RJ45 (Ethernet) |
| Operating Temperature | -40°C to 85°C |
| Operating Humidity | 0% to 95% (Non-Condensing) |
| Vibration Resistance | 5g RMS, 10 Hz to 500 Hz |
| Shock Resistance | 50g, 11 ms half-sine pulse |
| Dimensions (L x W x H) | 108mm x 70mm x 108mm |
| Weight | 0.75 lbs (approx. 0.34 kg) |
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 108 × 70 × 108 mm |
