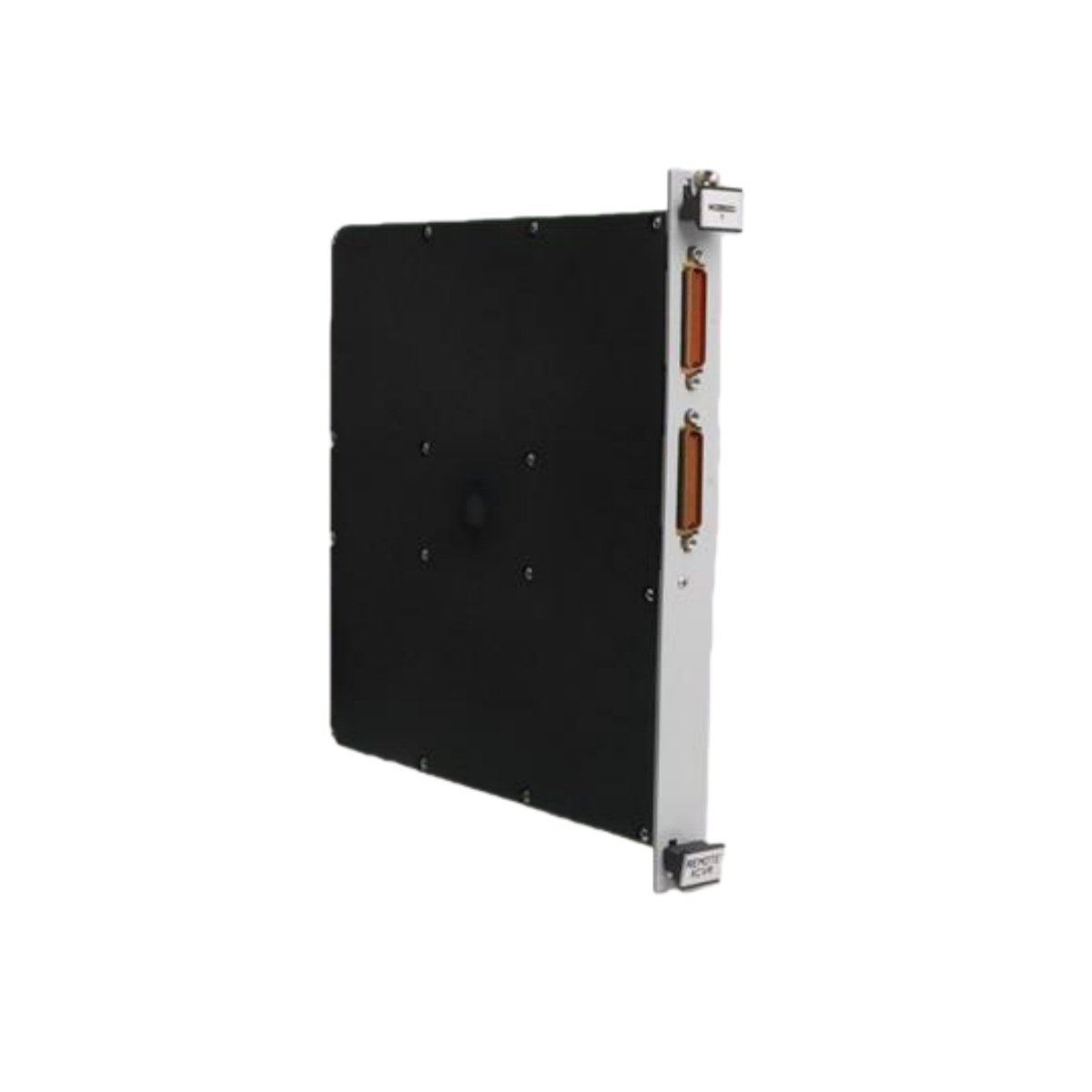

The Woodward 5466-355 is a critical interface module for VMEbus system expansion. This remote chassis transceiver facilitates high-speed data exchange within Woodward control architectures. It specifically enables communication between a main CPU chassis and remote expansion chassis. Consequently, this module extends the capabilities of systems based on the CPU 68040 platform.
Technical Specifications and Physical Details
The 5466-355 module employs high-speed differential drivers for robust signal integrity. It uses a parallel interface to operate seamlessly at full VME transmission rates. Moreover, its design ensures reliable data, address, and control signal propagation over extended cable distances.
Below are the key technical parameters for this transceiver module:
| Parameter Category | Specification Details |
|---|---|
| Manufacturer & Model | Woodward 5466-355 |
| Product Type | Remote Chassis Transceiver (Remote XCVR) |
| Compatible System | CPU 68040-based VME Systems |
| Primary Function | VMEbus Extension & Signal Re-drive |
| Interface Type | Parallel, High-Speed Differential |
| Connector Type | 100-pin Metal Shell Micro-D (2 per module) |
| Required Installation Slot | Slot 11 (in expansion chassis) |
| Termination | Module without termination resistors (non-final chassis) |
| Module Weight | 0.86 kg |
| Operating Temperature | 0°C to 70°C (Commercial Industrial Grade) |
| Power Consumption | Approximately 5 Watts (from backplane) |
| Key Internal Components | Differential line drivers/receivers, chassis decoder logic, signal buffers |
| Status Indicators | None (No switches or LEDs on module faceplate) |
| Country of Origin | United States (USA) |
Installation and System Integration Guidelines
You must install the Woodward 5466-355 in Slot 11 of a VME expansion chassis. All intermediate expansion chassis require this module without internal termination resistors. Furthermore, the final chassis in the daisy chain uses a separate terminated transceiver variant. This precise configuration maintains signal quality across the entire extended bus.
Functional Role and Application
This transceiver acts as a bus receiver and driver for the extended VME backplane. The chassis decoder logic activates the module to send or receive information packets. It is essential for creating multi-chassis control systems in power generation and industrial turbine applications. Ultimately, the 5466-355 provides the reliable communication backbone for distributed Woodward control solutions.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 108 × 70 × 108 mm |
