Product Overview

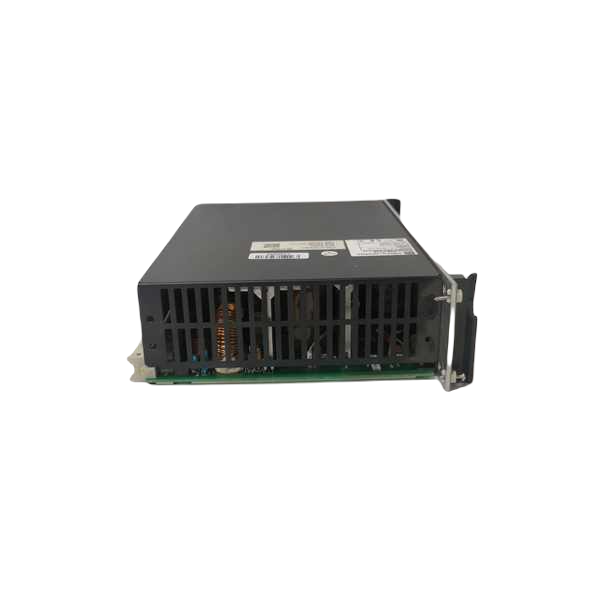

The Vibro-Meter RPS6U (part number 200-582-500-013) provides a reliable power supply for Vibro-Meter’s VM 600 series machinery protection systems. It powers various connected cards, ensuring continuous and efficient operation. The unit’s design incorporates features that safeguard against potential issues, making it ideal for critical systems where performance and stability matter most.
Key Features
- Compatibility: The RPS6U integrates seamlessly into VM 600 series racks, providing dependable power to the system.
- Redundancy Support: You can install a second unit for redundancy, ensuring your system continues running even if one unit fails.
- Overvoltage Protection: The built-in protection prevents voltage spikes from damaging components.
- Short-circuit Proof: It continuously protects against short circuits, reducing the risk of failures.
- High Performance: With stable output and minimal voltage fluctuation, this unit keeps your system running smoothly.
- Compact Design: The RPS6U fits within a 6U rack space, making it a great fit for environments with limited space.
- EMC Compliance: This power supply meets EC standards for electromagnetic compatibility, minimizing interference with other devices.
Technical Specifications
| Attribute | Details |
|---|---|
| Manufacturer | Vibro-Meter |
| Part Number | 200-582-500-013 |
| Rated Power | 300 W |
| Output Voltage/Current | +5 VDC / 35 A, +12 VDC / 6 A, -12 VDC / 2 A |
| Voltage Stability | ≤ ±0.2% under full load |
| Ripple | ≤ 50 mVpp (bandwidth 20 MHz) |
| Current Limitation | 35 A (electronic current limitation built-in) |
| Overvoltage Protection | 5.9–6.7 V (factory set) |
| Power Derating | 1% per °C from 60°C to 70°C |
| Input Voltage | See ordering details for exact specifications |
| Operating Temperature | -25°C to +65°C (-13°F to +149°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Weight | 2.1 kg (4.63 lbs) |
| Dimensions (H x W x D) | 6U / 12TE, 187 mm depth |
| Humidity | ≤ 95% non-condensing |
| Vibration Resistance | 10–2000 Hz, 5 g, 2 hours in each direction (IEC 68-2-6) |
| Shock Resistance | 100 g, 6 ms, half-sine pulse (IEC 68-2-27) |
Usage Notes
For optimal performance, ensure that you integrate external components correctly and meet all wiring requirements. Installing a second RPS6U unit allows you to maintain continuous power in case of failure, minimizing potential downtime.
Applications
The Vibro-Meter RPS6U is designed for use in VM 600 series machinery protection and condition monitoring systems. It is perfect for environments where stable power supply and continuous operation are crucial for system reliability.
FAQ
Q1: Can I use the RPS6U with systems other than VM 600?
No, this unit is specifically designed for VM 600 series systems. Please consult the manufacturer for other system compatibility.
Q2: How do I ensure redundancy with the RPS6U?
You can install a second RPS6U unit for redundancy, which ensures the system remains operational even if one unit fails.
Q3: What are the power requirements for the RPS6U?
The RPS6U operates on an input voltage of 120–230 VAC. It provides stable output voltages of +5 VDC, +12 VDC, and -12 VDC to ensure proper system functionality.
Q4: What happens if the operating temperature exceeds the recommended range?
Operating outside the specified temperature range may lead to performance degradation or thermal shutdown. The RPS6U includes power derating from 60°C to 70°C to help mitigate this, but consistent high temperatures may damage the unit.
Q5: Can I return the unit if it malfunctions?
Yes, we offer a 30-day return policy for any quality-related issues. Please reach out to our customer service for further assistance.
Details
| Weight | 2.1 kg |
|---|
