Overview

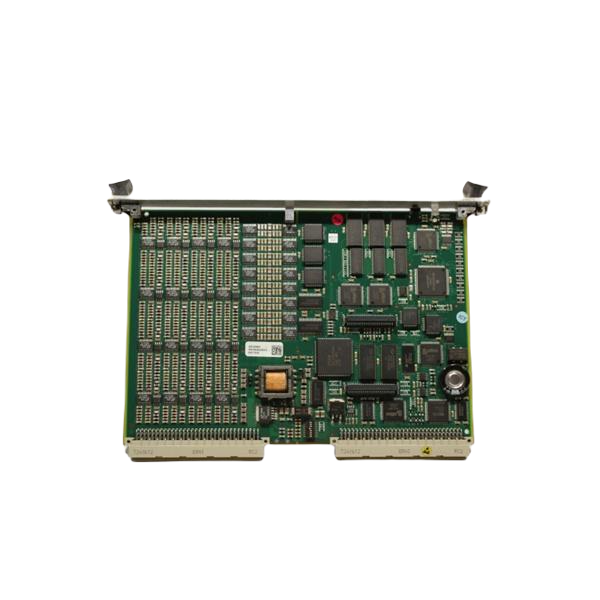

The VIBRO-METER CMC16 200-530-023-014/200-530-100-014 is the central element of the VM600 Condition Monitoring System (CMS). This intelligent Data Acquisition Unit (DAU) acquires, analyzes, and transmits machine data to a host system via Ethernet or serial links. It integrates with VM600 CMS software to deliver real-time monitoring and vibration analysis.
Key Features
- Programmable Inputs: Supports speed, phase reference, vibration, dynamic pressure, and rotor air gap measurements.
- Signal Routing: Receives signals from adjacent Machinery Protection Cards (MPC 4) via VM600 Raw Bus/Tacho Bus or external connectors.
- Signal Conditioning: IOC 16T modules provide EMC protection and route inputs to the CMC16.
- On-Board Processing: Includes acquisition control, FFT, band extraction, unit conversion, and threshold checking.
- Data Acquisition: Tracks 16 programmable channels with RMS, peak, peak-peak, and true peak calculations.
- Event Generation: Generates alarms based on limits, rate-of-change, or deviations from baseline values.
- Adaptive Monitoring: Alarm set points dynamically adjust based on speed and load conditions.
- Transient and Oscilloscope Modes: Capture high-density logging and extended time-based data for detailed analysis.
Technical Specifications
Speed/Phase Reference Input
| Parameter | Specification |
|---|---|
| Triggering Method | Rising or falling edge |
| Input Voltage Range | 1–24 V pulse |
| Frequency Range | 0.25–10,000 Hz |
| Maximum Pulses per Revolution | 128 |
| Machine Speed Resolution | ±1 rev/min |
Vibration and Analog Inputs
| Parameter | Specification |
|---|---|
| A/D Converter | 14 bits per channel |
| Maximum Sampling Rate | 100 kHz |
| Accuracy | ±1% of input FSD |
Background Logging Acquisition
| Parameter | Specification |
|---|---|
| Order Tracking Range | 15–30,000 RPM |
| FFT Resolution | 400 lines |
Transient Acquisition
| Parameter | Specification |
|---|---|
| Maximum Duration | 18 hours 12 minutes |
| Maximum Data Points | 270 |
On-Board Buffer Storage
| Parameter | Specification |
|---|---|
| RAM Memory | 1 MByte |
Communications
| Parameter | Specification |
|---|---|
| Type | D16 / A24 slave mode |
| Serial Communication | RS-485 multi-drop line |
Power Supply
| Parameter | Specification |
|---|---|
| Supply Voltage | 5 VDC ±5% |
| Power Consumption | 15 W |
Environmental Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | -25°C to +65°C |
| Humidity | 0–90% non-condensing |
Physical Dimensions
| Parameter | Specification |
|---|---|
| Height | 6U (262 mm) |
| Width | 20 mm |
| Depth | 187 mm |
| Weight | 0.35 kg |
Ordering Information
Specify CMC16 Condition Monitoring Card with Ordering Number 200-530-SSS-HHh, where “SSS” indicates firmware version and “HHh” hardware version.
